Why a drive parameter backup matters

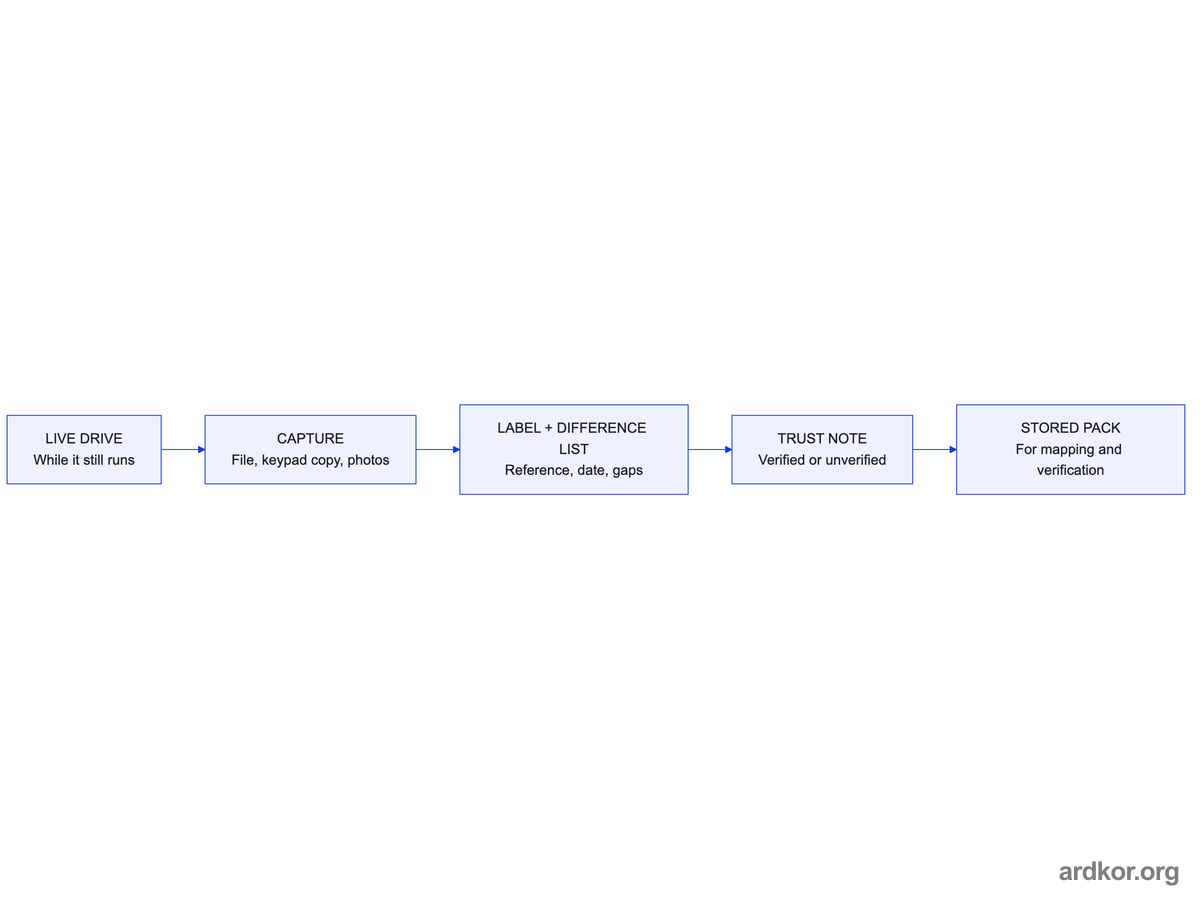

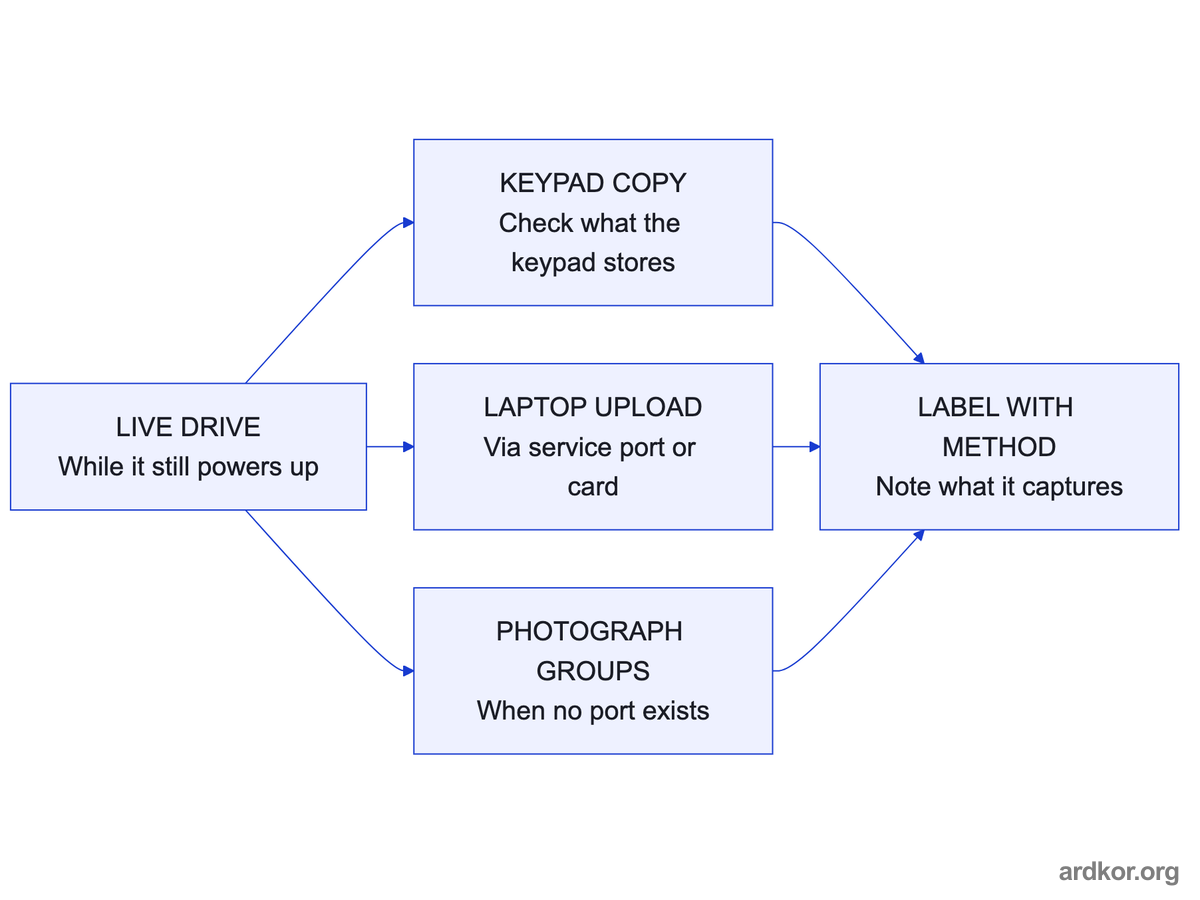

Pick the export method your drive family actually supports, and note which one you used. Many keypads can copy a parameter set into themselves and carry it to the next unit, though whether a given keypad stores the full set is a manual question, not an assumption. A laptop upload through the drive's service port or an option card is the other common route, and it gives you a file you can store and version.

Enlarged system diagram

×

The branches are alternative capture routes, and the manual for the family decides which apply. The method label documents completeness, not correctness.

A compact drive without a service port may leave photographs of its parameter groups as the only practical capture, and that still beats nothing. Whatever route you take, write the method on the capture itself, so the next person knows how it was made and what completeness to expect from it. A file and a photo set are different evidence grades, and the record should say which one it holds.

The method note also matters because methods differ in what they capture. A keypad copy may hold the running set but not hidden service parameters, while a software upload may hold everything but require a version match. The capture is only as trustworthy as the description of how it was produced, and that description costs one line.

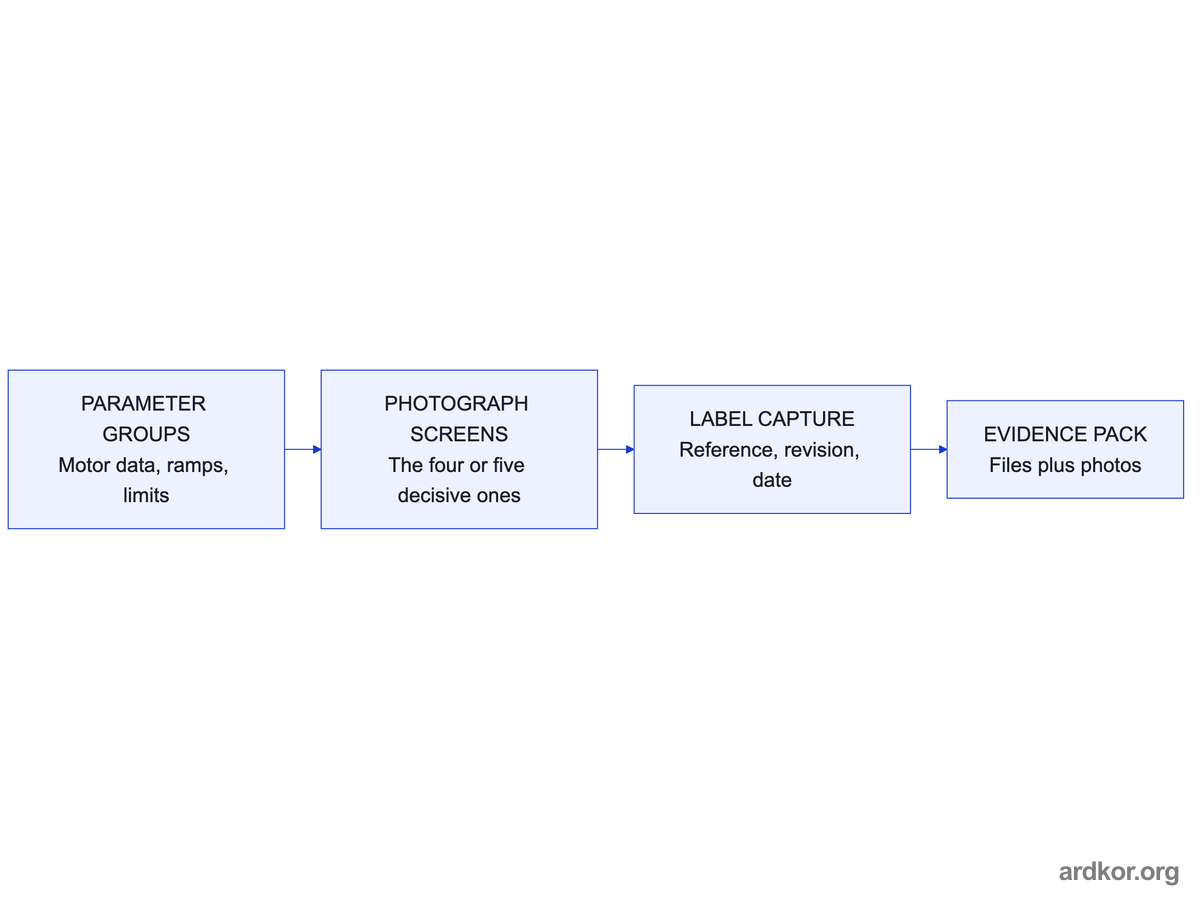

Photograph the parameter groups that carry the machine's behavior even when a file export works. Motor data, ramp times, current and speed limits, and skip frequencies are the groups that decide whether a replacement behaves like the installed unit. A full export can sit unread in a folder for years, while photos of the four or five decisive screens get checked line by line during the swap.

Enlarged system diagram

×

The photographed screens are the priority set for swaps, not a claim that other parameters do not matter. The full group list lives in the family manual.

Label every file and photo with the drive reference, its revision, and the capture date, because an unlabeled parameter file is evidence without provenance. A photo that cannot be tied to a drive and a date is just a picture of numbers. The labels cost seconds at the cabinet and save an argument about provenance years later.

The decisive groups also make the difference list in the next section readable, because they give the comparison a focus. Not every parameter in a modern drive deserves equal attention, and the ones that carry machine behavior are exactly the ones a reviewer will ask about first. Capture everything you can, but know which five screens matter.

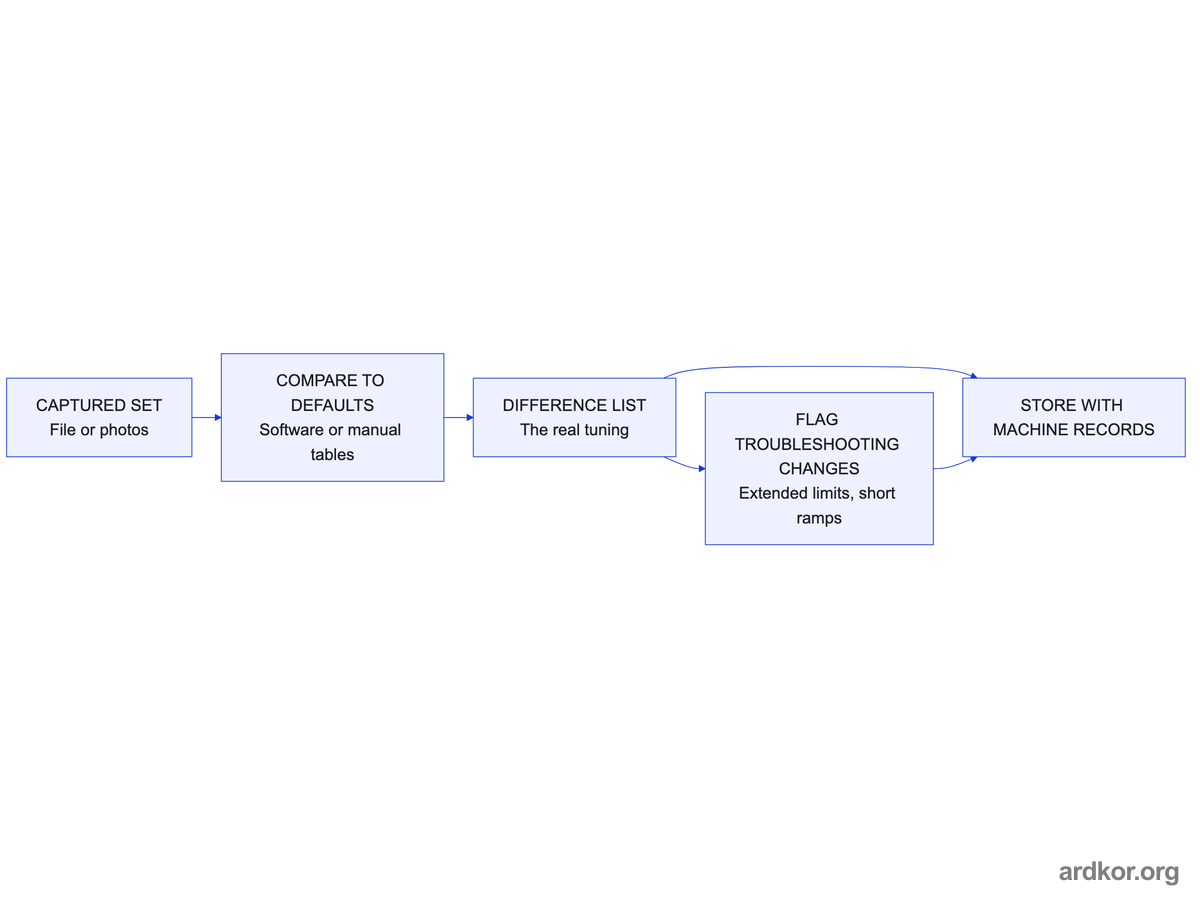

While the information is fresh, compare the captured set against the factory defaults. Most commissioning software shows which parameters differ from default, and that difference list is the machine's actual tuning in condensed form. It is the fastest way to understand what somebody changed to make this drive run this machine.

Enlarged system diagram

×

The comparison documents what differs, not why it differs. Interpretation of flagged values belongs to a review with the machine history in hand.

Flag any value that looks like a troubleshooting change rather than a design choice, such as an extended current limit quietly hiding an overload problem. Those values are findings in their own right, and they connect the configuration record to the fault history. A limit that was raised during a difficult season is exactly the kind of detail that explains a failure months later.

Store the export, the difference list, and the photos together with the machine's electrical records. This is the cheap moment to catch a problem; the expensive moment is when the replacement is already on the bench. The difference list also gives commissioning a starting shape, because only the listed values need deliberate attention instead of the whole parameter space.

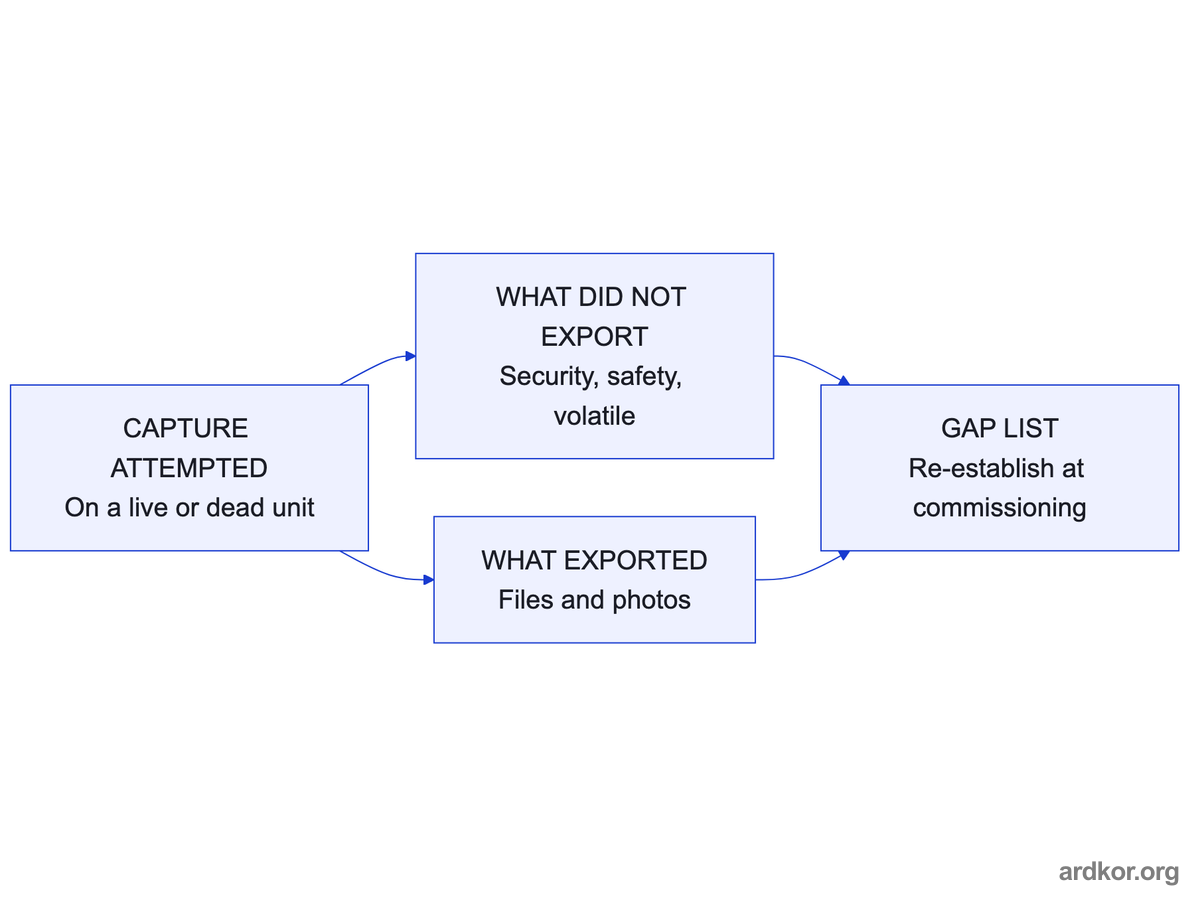

Record what you could not capture alongside what you did capture. Some settings never export, including certain security, safety, or firmware-specific fields, and some parameter groups reset to default when power is lost on drives without battery-backed memory. A backup that pretends to be complete is more dangerous than one that admits its edges.

Enlarged system diagram

×

The gap list records the existence of uncaptured settings. It does not document their values, and safety-related work stays with qualified personnel.

If the drive is already dead when the request starts, say so, because a set recovered from a dead unit is a different class of evidence from a live upload. The gap list tells the next person what has to be re-established during commissioning, and that list is what turns a backup from a claim into a usable document. Gaps marked honestly can be planned for; gaps discovered at the cabinet cannot.

The gap list also feeds the safety conversation, because safety-related settings belong to qualified personnel under the applicable rules, and a record that silently omits them invites someone to assume the defaults are correct. Write down that a safety configuration exists and that it needs re-establishing. The note does not describe the configuration; it makes sure nobody forgets that it existed.

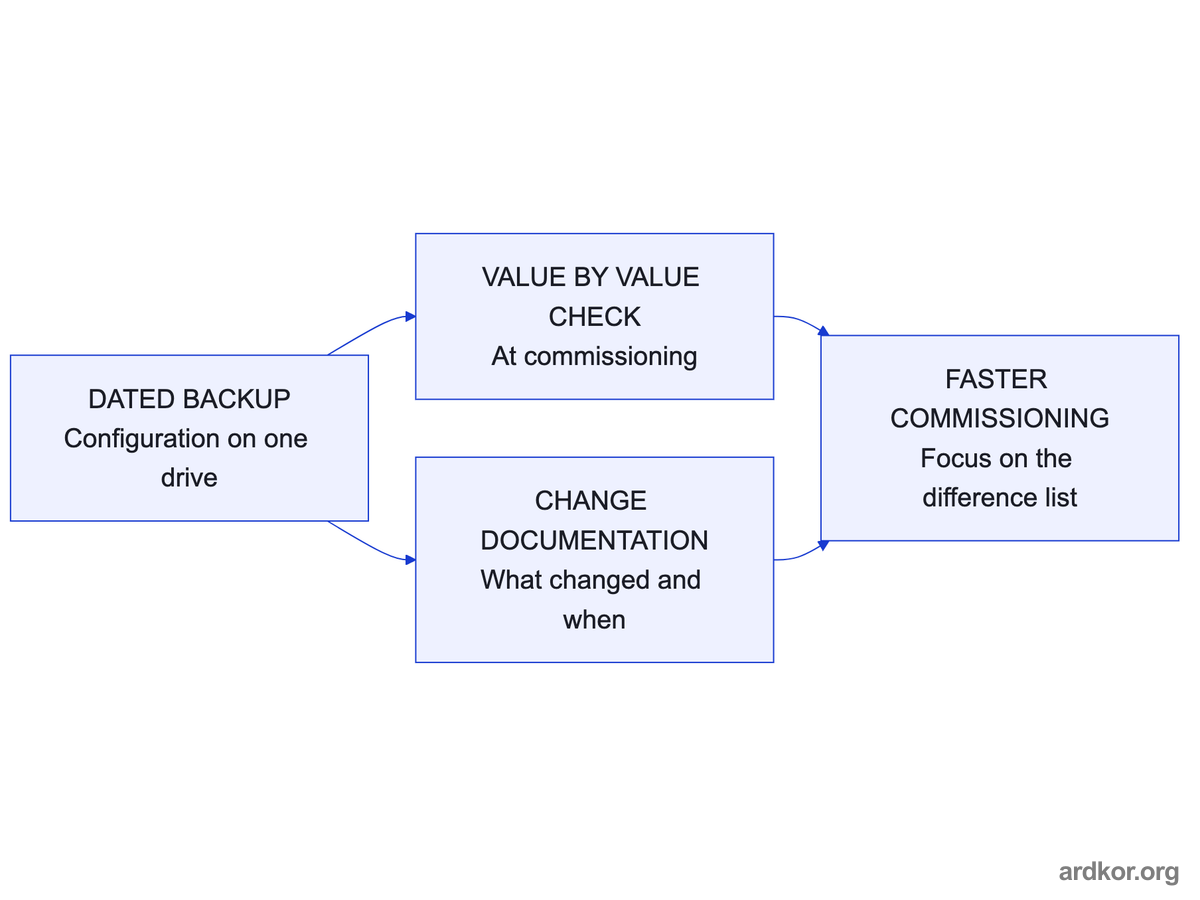

A backup proves that a specific configuration existed on a specific drive on a specific date. That provenance is what makes it useful during a swap, because you can check a replacement value by value against the captured set instead of against memory. Commissioning time drops with it, since only the difference list needs attention rather than the whole parameter space.

Enlarged system diagram

×

The backup proves what was stored, not how the machine behaved. It speeds commissioning but does not remove the verification task.

The backup also documents that a change happened, which matters when a fault shows up months after someone adjusted a limit. A dated capture draws a line in the machine's history, and everything after it can be compared against the state it froze. Without that line, disputes about who changed what have nothing to land on.

What the proof does not cover is behavior. The backup shows the numbers the old drive ran; it does not show whether the machine ran well on them, and it cannot show which numbers a new drive needs. Those questions belong to the mapping and verification work in the next sections, and the backup is their source material rather than their answer.

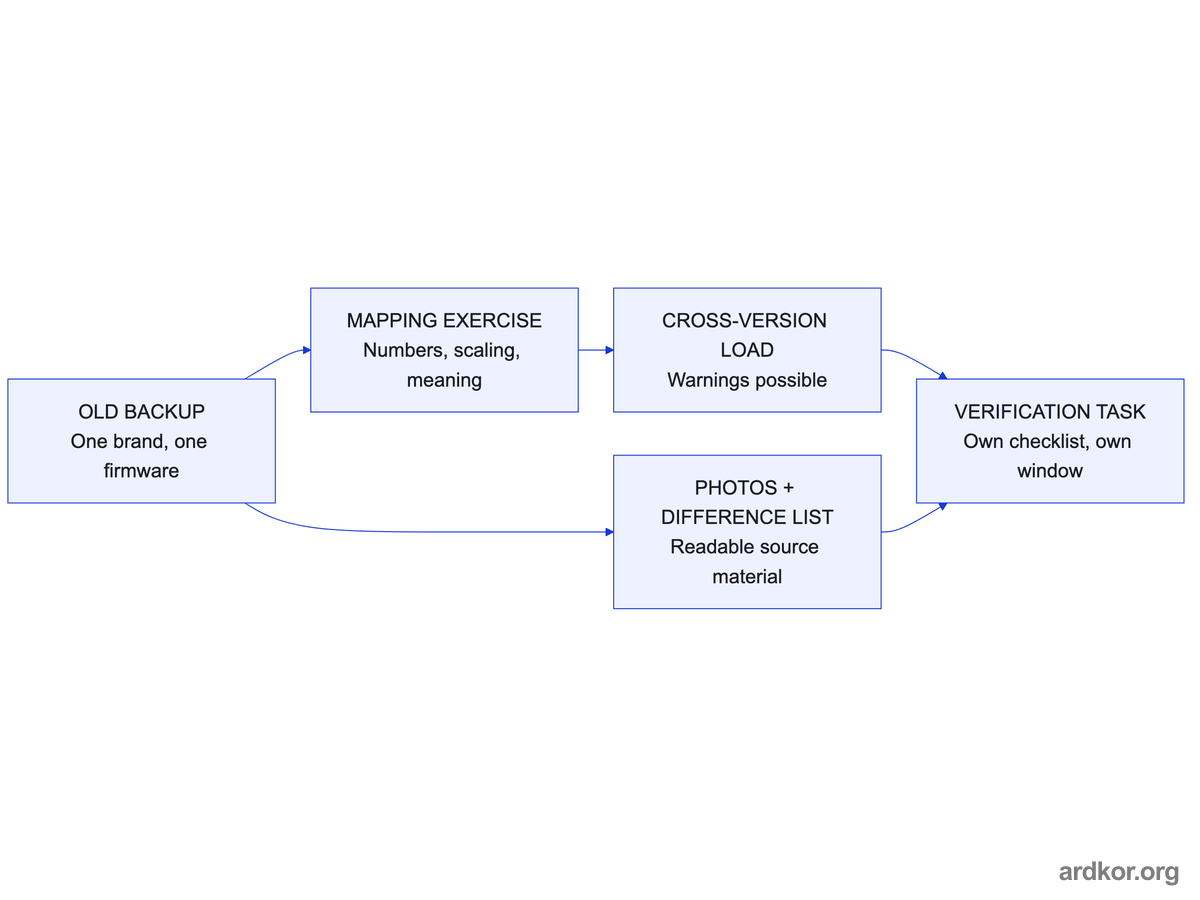

A backup does not transfer between brands, and it often does not transfer cleanly between firmware generations of the same brand. Parameter numbering, scaling, and even the meaning of a named function differ across families, so loading a Lenze file into an ABB drive is not a copy operation but a mapping exercise. Even within one family, a file written by one firmware version may load with warnings on another.

Enlarged system diagram

×

The flow describes planning work, not a copy operation. Parameter mapping is brand and version specific, and the manufacturer documentation defines each step.

Treat any cross-version load as a verification task with its own checklist, and budget time for that verification rather than treating the load as the last step of the install. The load succeeding is not the same as the machine running right, and the difference shows up under load, on a live machine, at the worst possible time. Plan the verification window before the swap instead of after it.

The mapping work also needs the old values in a readable form, which is why the photos and the difference list matter even when the file itself will not load. A file that loads but scales differently is harder to catch than a photo you compare by eye. Keep both evidence grades in the pack for exactly this reason.

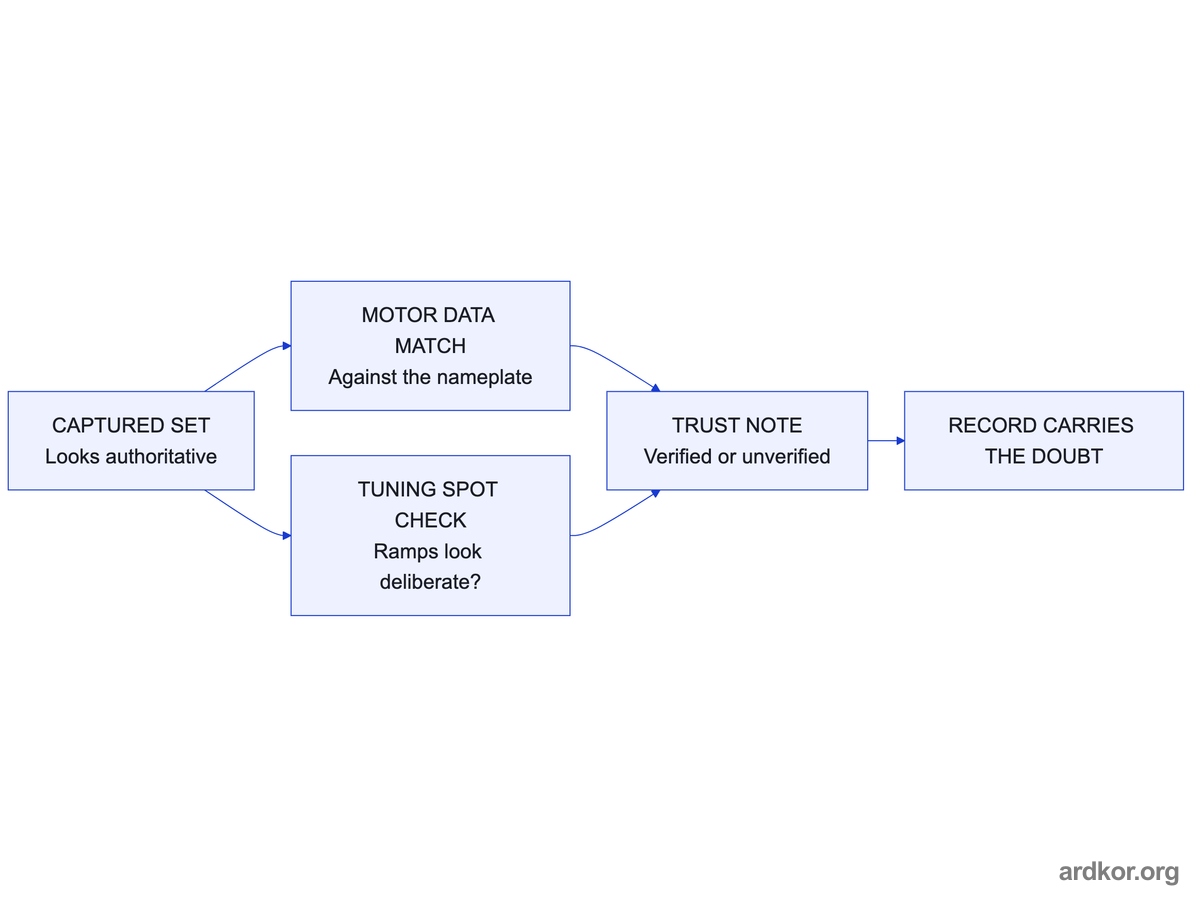

Beware the backup that looks authoritative but is not. A capture taken after a factory reset, or from a drive that had already lost its tuned values, records defaults with the same confidence as real tuning. Before you trust any set, check that the motor data matches the connected motor and that a few known values, like ramp times, look like deliberate choices.

Enlarged system diagram

×

The spot check plausibility-tests the set, it does not re-commission the drive. The trust note documents the judgment, not a promise of correctness.

Defaults hide best in sets that were captured routinely, by someone with no reason to doubt the source. The check takes minutes: compare the motor data against the motor nameplate, and compare two or three tuning values against the machine's behavior. A doubtful set is worse than an honest gap, because it invites a swap built on the wrong numbers.

An honest note saying the set is unverified gives the next person a fair starting point. The trustworthiness judgment belongs in the record next to the capture, with the date and the reason, so the doubt travels with the file instead of being rediscovered. That is the last line of the backup story: every capture carries its method, its date, and its own credibility.

• Export parameters the way your drive supports, and note which method you used.
• Photograph the decisive parameter groups, and label every capture with reference and date.
• Record what could not be captured, and store the backup with the machine's electrical records.
• Expect no direct transfer across brands or firmware versions, and verify any loaded set.
