Drive reference aliases and suffixes

Drive references encode decisions, and a single block can change any of them. On the Lenze 8200 Vector reference E82EV751K4C200, the C200 suffix selects a specific variant that suppliers handle separately from the base E82EV751K4C form. On the ABB reference ACS580-01-09A5-4, the trailing -4 fixes the supply class while 09A5 fixes the rated output current, so altering either block produces a drive for a different job.

Enlarged system diagram

×

The blocks follow each manufacturer's own code explanation, which the manual states. Block meaning differs across families, so no table here generalizes.

Within Allen-Bradley numbering, the supply class and current rating sit in the middle block of numbers such as 22A-D4P0N104. A variant that looks like a spelling difference is often a specification difference, and the naming schemes reward close reading rather than pattern matching. The safest habit is to read every block against the manufacturer's own code explanation before the reference goes into any record.

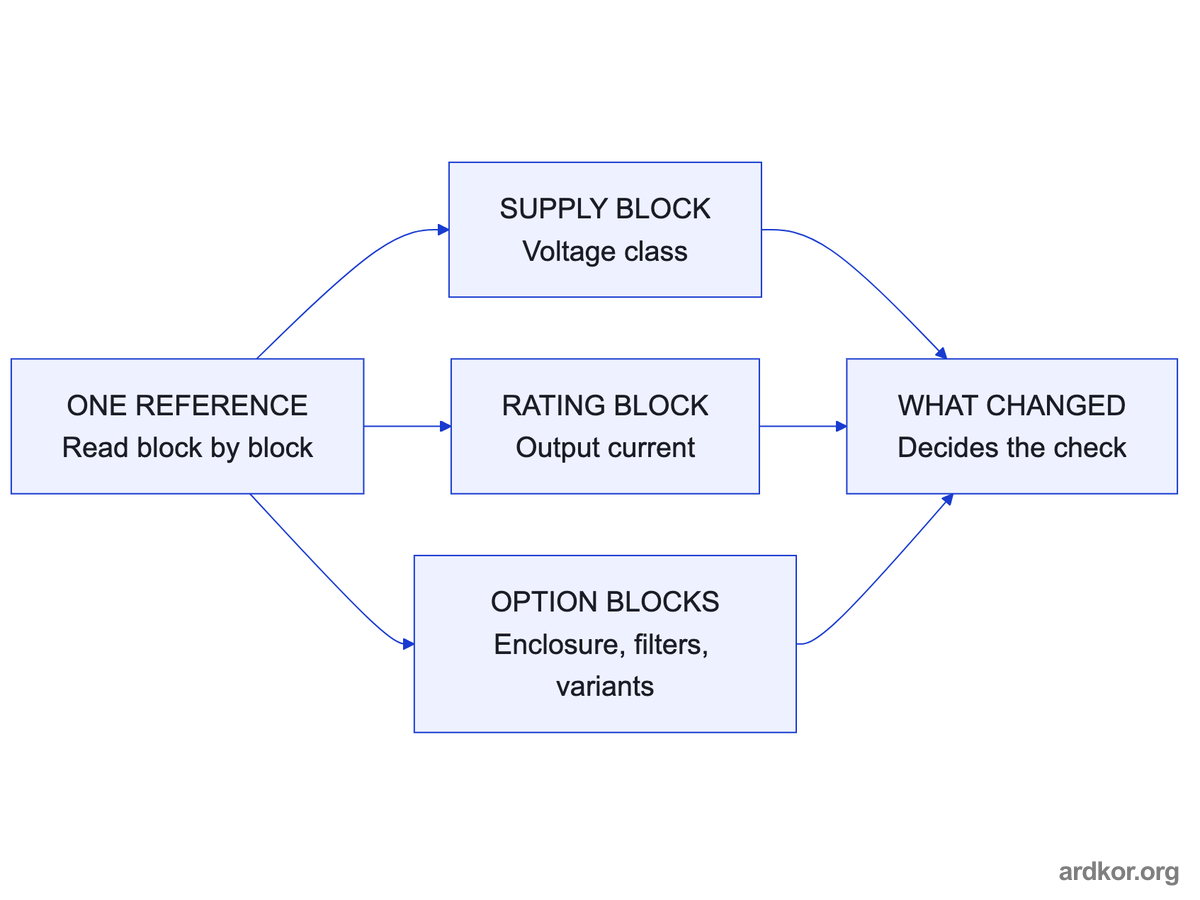

The block reading is also what makes the rest of this article workable, because every later check compares specific blocks rather than whole strings. Which block changed decides what kind of difference you are looking at: supply, rating, options, or family. That question comes up in every sourcing conversation, and the answer is always in the same place.

The reason block reading pays for itself shows up whenever a fleet mixes families. A record that says the drive is 22A-D4P0N104 can be checked, priced, and discussed; a record that says an Allen-Bradley drive, about 2 kW cannot. The blocks are the difference between an identity and a description, and every downstream article in this series starts from that difference.

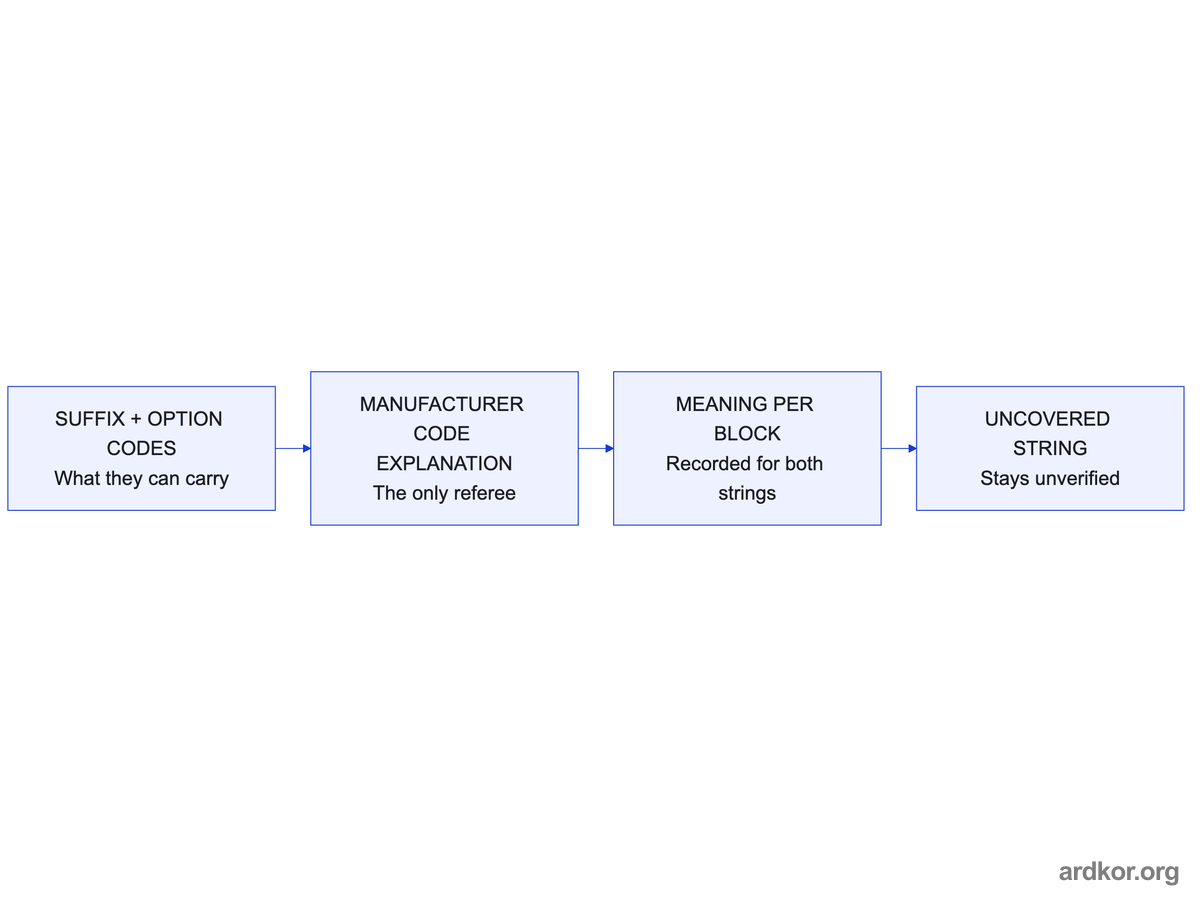

Suffixes and option codes commonly carry enclosure type, installed filters, braking hardware, network interfaces, or firmware generation. Two references that differ only in the option block can need different control wiring or different cabinet space. This is general catalog behavior across drive manufacturers, and it means your comparison point is the manufacturer's own code explanation, not how similar the two strings look.

Enlarged system diagram

×

The decoding is documentation work, not inspection of the drive. Catalog behavior differs by family, and the family manual defines each block.

The stakes sit in the details the suffix controls. A network interface that exists as an option card in one suffix and is absent in the next changes what the machine can talk to. An installed filter changes the enclosure class. Firmware generation changes which parameters exist and what they are called. None of that is visible from across the room, which is why the strings carry it.

Strings that differ by two characters can demand different cabinets, and strings that look nothing alike can be the same drive reformatted. The resolution is always the same: find the code explanation for that family, apply it to both strings, and record what each block means. When the documentation does not cover one of the strings, that gap is the finding, and the string stays unverified until it is covered.

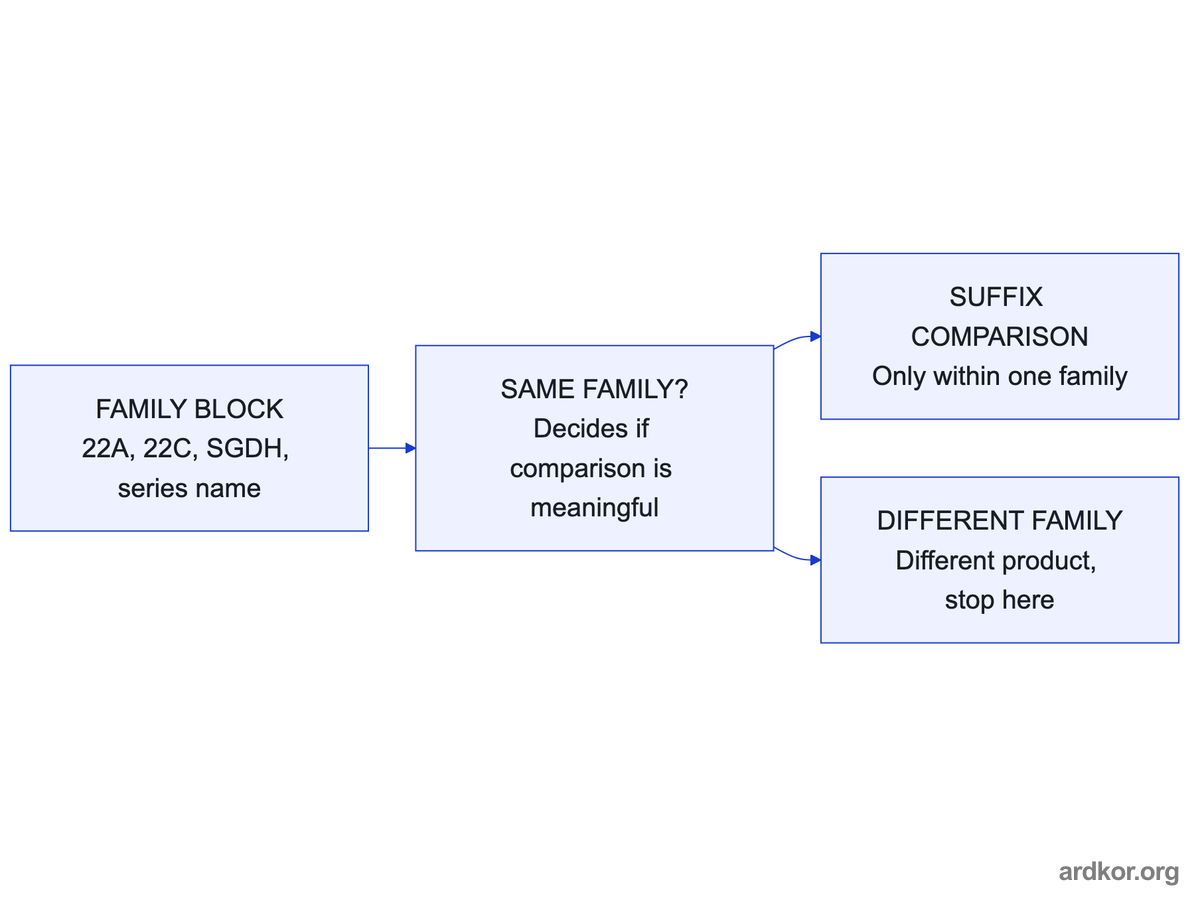

Family-level differences are not formatting variants at all. The 22A block in 22A-D4P0N104 names the PowerFlex 4 family while 22C names the PowerFlex 400 family, and no amount of reformatting turns one into the other. Getting the family block right prevents the most expensive class of alias mistake, and it is also the mistake most likely to survive into a purchase order, because family blocks look plausible wherever they appear.

Enlarged system diagram

×

The check uses the manufacturer's family naming, which the manuals state. A family mismatch ends the comparison, whatever the rest of the string suggests.

Servo numbering deserves the same respect. A Yaskawa SGDH-10AE servo amplifier is a Sigma II axis component whose exact suffix matters for pairing and feedback, and a near-suffix number describes a different amplifier with different ratings. The user's manual for the series is the reference for what each position in the designation means, and the selection tables it contains are the check for whether a near-miss number could ever be a substitute.

The family check runs before any suffix comparison, because it decides whether the comparison is even meaningful. Two references from different families are two different products by definition, whatever their suffixes do. The record should mark family-level mismatches immediately and route them back to sourcing rather than letting them sit as candidates that look almost right.

Watch for reformatted names too, because families get renamed across generations and catalogs. The new name describes a different product even when the marketing text invites a comparison, and the family block, not the brochure, is what settles it. When a listing offers an equivalent from a different family, treat it as a sourcing lead with its own verification path, not as an alias.

Some apparent aliases are purely formatting, and those are worth normalizing. Sellers insert spaces, drop hyphens, or change letter case, so E82EV751K4C may appear as E82EV751 K4C or in lowercase in a listing. The reference itself has not changed, and treating formatting noise as a variant floods the record with false differences.

Enlarged system diagram

×

Normalization touches separators and case only. It never changes blocks, and the original string remains the audited truth.

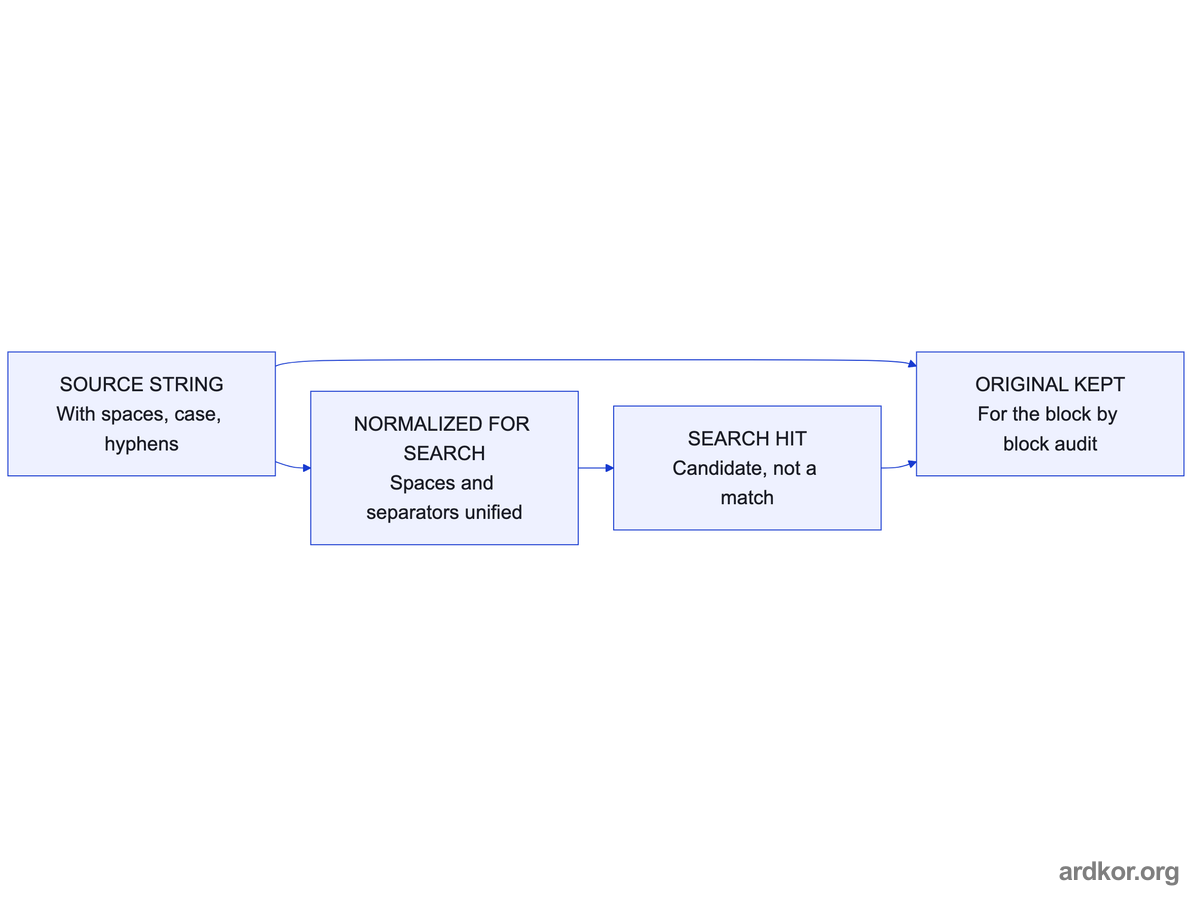

Normalizing for search is useful and safe as long as the record keeps the source formatting too. Strip spaces and unify separators in the search field, and keep the original string beside it in the record. The normalized form answers where can this be found; the original answers what did the source actually say. Records that keep only the normalized version lose the ability to audit the match later.

The line to hold is between a reformatted same reference and a different reference, and the manufacturer's numbering scheme is the referee. When a normalized search returns a hit, the check that follows is block by block against the original, exactly as the offer comparison works in the sourcing article. Formatting similarity is a search shortcut, never a verdict.

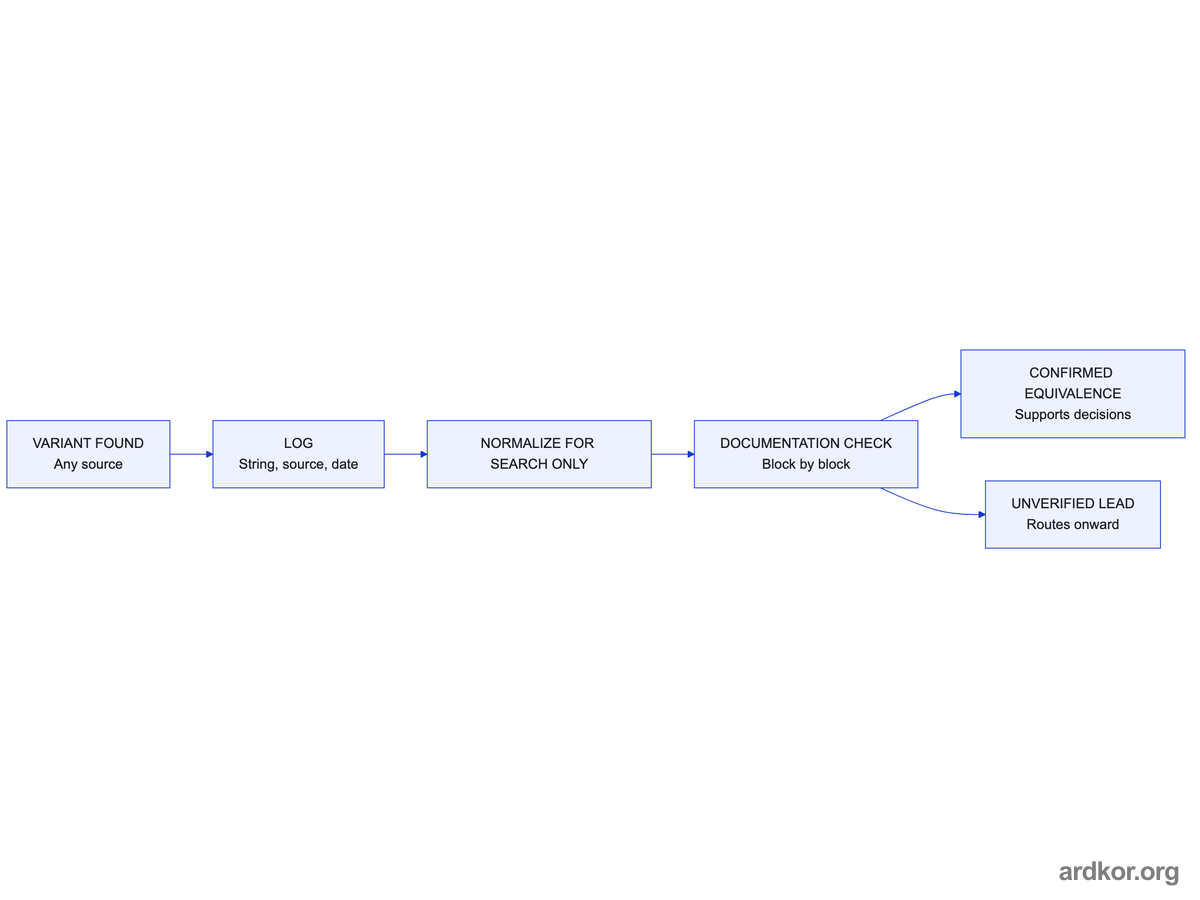

Capture each variant with its source and the date it was seen. A variant without provenance cannot be checked, and unchecked variants have a way of hardening into assumed facts as a record gets forwarded. The log line should state the exact string as written, where it appeared, whether on a nameplate, a quote, or a listing, and when.

Enlarged system diagram

×

The log records provenance, not equivalence. Ranking describes evidence weight, and a replaced plate changes which source leads.

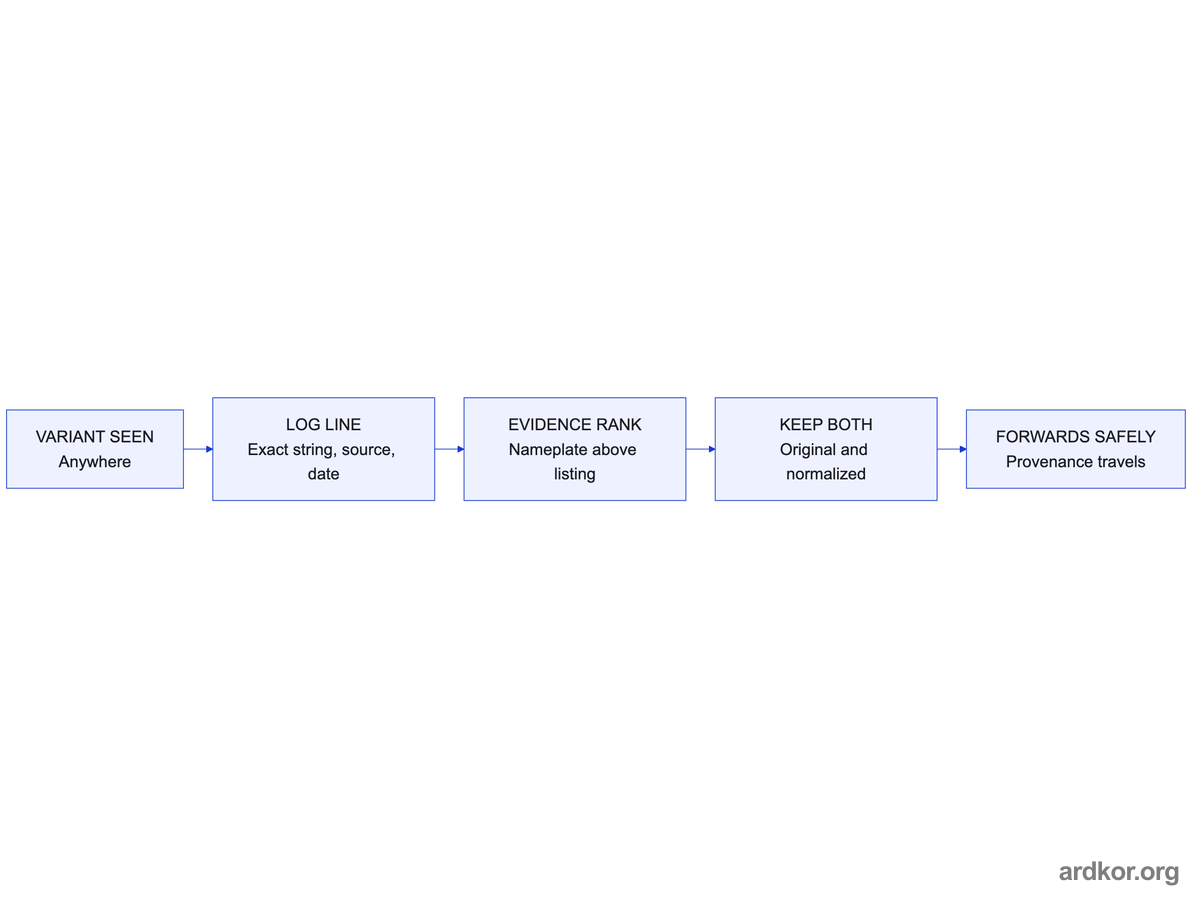

Nameplate strings outrank listing strings as evidence, because the plate is the manufacturer's own statement about the installed unit. Quotes and listings describe what a seller is offering; the plate describes what the machine actually carries. When the two disagree, the disagreement is the finding, and the plate usually wins unless someone shows a replaced plate and explains the history.

The provenance discipline is what keeps an alias log usable after months of forwarding. Every line answers three questions: what exactly was written, who wrote it, and when. A log with those three answers on every line can be audited; one without them is a pile of strings that gets less trustworthy every time it is copied.

Where the plate is unreadable or missing, record that state explicitly and note the best available identification. A stamped chassis number or a controller configuration entry is a weaker source, but it is a source with a date and a place. The log then shows both what was found and what could not be found, so a later check against the manufacturer's serial number lookup starts honestly instead of from a guess dressed as data.

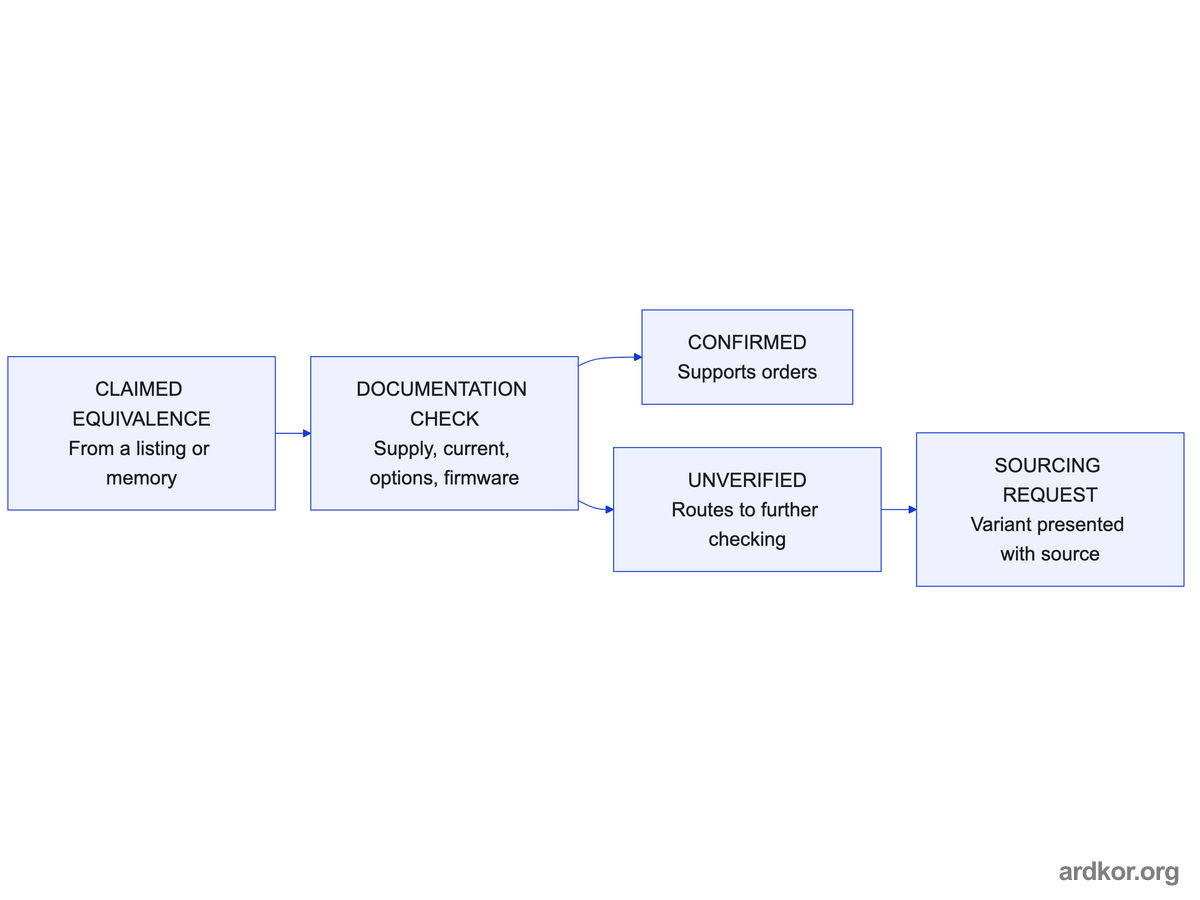

Verify any claimed equivalence against manufacturer documentation before it supports a decision. A reseller listing that describes two references as the same is a lead, and the check asks whether the manufacturer's own documentation gives both strings the same supply class, current rating, options, and firmware generation. If the documentation is silent or unavailable, the equivalence stays unverified and the record says so.

Enlarged system diagram

×

The check compares manufacturer documentation, not seller descriptions. Confirmed means the blocks match in documentation, nothing more.

That two-state discipline, confirmed or unverified, is what keeps an alias log trustworthy. It also tells the next reader exactly how much work remains before the lead can be used, which is information in itself. An unverified lead still has value, but as a search direction, and the record should route it to further checking rather than to purchasing.

Only confirmed equivalence should ever support an order, a replacement decision, or a machine change. When a claim matters to a live decision, the honest options are verification from documentation or a sourcing request that presents the variant with its source and asks for a route. The alias log exists so this distinction survives every handover of the file, and a log that keeps the split honest turns a pile of similar-looking strings into a usable map of what is real.

Date the checks as well as the leads. Documentation moves, manuals get revised, and a block meaning that was silent last year may be covered by a new revision of the code explanation. A record that carries the check date on each confirmed line can be refreshed block by block instead of re-investigated, which is what makes the alias log a living document rather than a snapshot that quietly goes stale.

• Treat suffixes and option codes as specification changes until documentation says otherwise.
• Keep family blocks correct, because 22A and 22C style differences are products, not spellings.
• Log every variant with its exact string, source, and date, and normalize only for search.
• Let only documented equivalence support an order, and mark everything else unverified.
