Why network context matters for a PLC CPU

A replacement CPU arrives, you mount it, and nothing on the network talks to it. The part number matched; the network did not. On a PROFINET network, the industrial Ethernet system that connects plant-floor devices, the CPU answers to a device name and an IP address that the project assigns. Neither value is printed on the housing. The device name distinguishes the CPU from every other station on the network, while the IP address places it on the plant network.

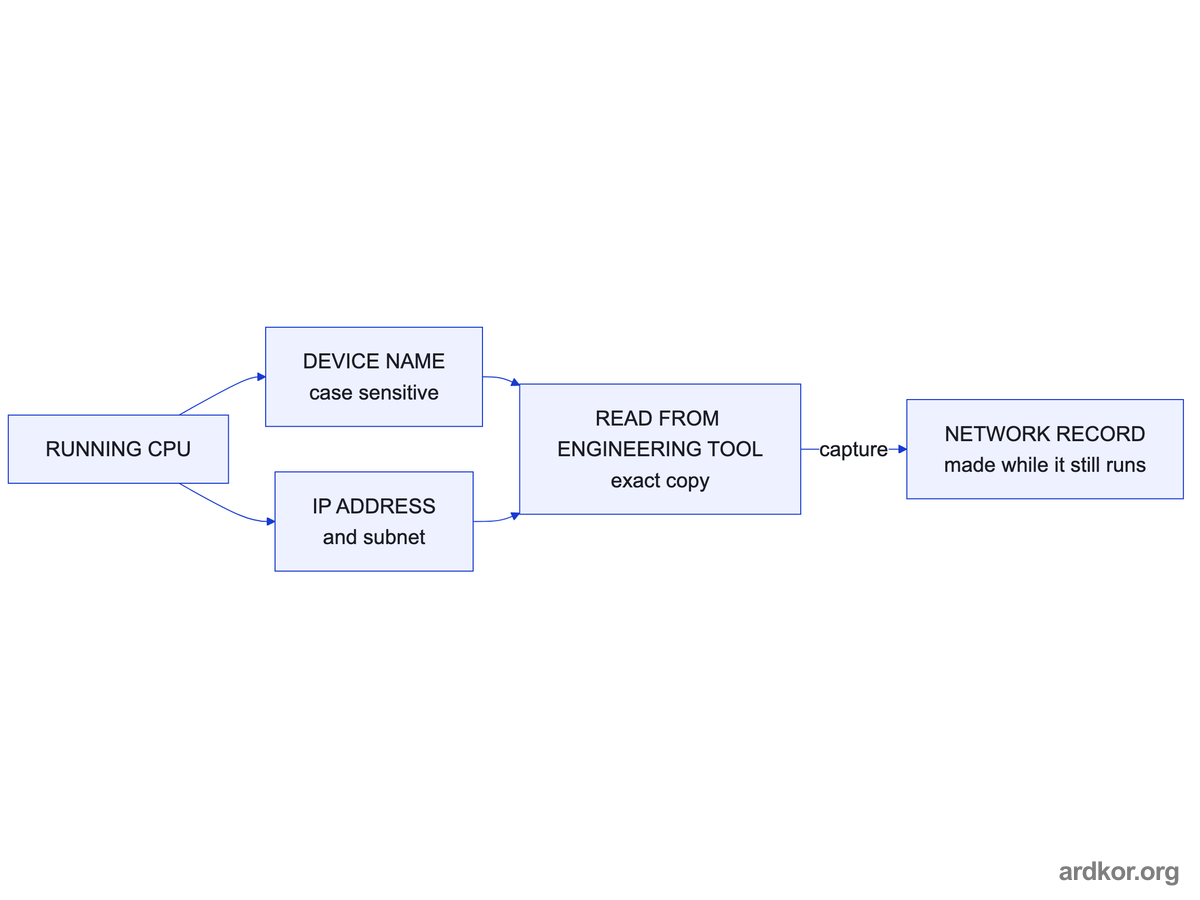

Enlarged system diagram

×

Both values exist only in the project and the running unit. The arrows show the capture path, not the plant network.

A replacement ships with default settings and neither value, so both must be captured while the installed CPU still runs. The engineering tool can read the device name and addressing from the running CPU, which makes this one of the cheapest facts to capture correctly. Once the unit fails, those values survive only in your record.

Record the values exactly as configured, character by character. Device names are case sensitive in PROFINET engineering, so a name typed from memory can differ from the configured value in ways nobody notices until a replacement is connected. An exact copy from the engineering tool beats a careful transcription every time.

The device name and the IP address answer different questions, which is why both belong in the record. The device name identifies the station within the PROFINET engineering view and is what configured devices refer to. The IP address places the CPU on the plant network and is what the engineering laptop and higher-level systems use. A replacement can have one right and one wrong, and the machine will still not come back, so capture and restore them as the two separate values they are.

Port layout is part of the same identity. A CPU 1215C exposes two PROFINET ports and the project may use both, for example to connect the engineering side and a line of devices on separate paths, while a CPU 1214C carries a single port. An ET 200SP CPU 1510SP-1 PN takes its network connection through bus adapters, so the physical connector is a separate part with its own reference. The port story differs per family, and so does the record you need.

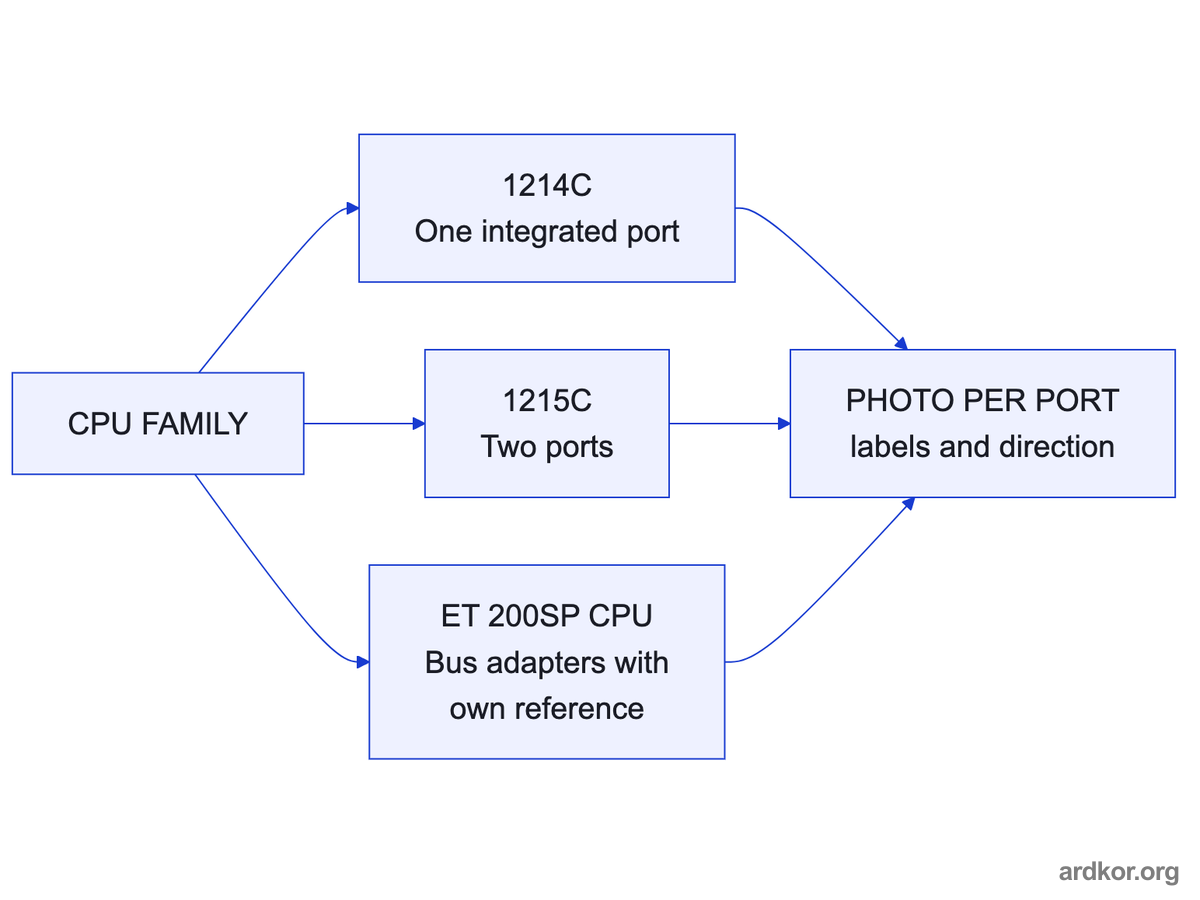

Enlarged system diagram

×

The branches are port layouts, not wiring. Each family changes what the port record must contain.

Photograph the ports, their cable labels, and which cable goes where before anything is unplugged. One photo per port direction is enough, as long as the labels stay legible in the frame. On a bus-adapter family, photograph the adapter reference too, because a replacement connector is a purchasable part someone will have to source.

The port record also decides what a successor check will ask about. A CPU with one port replaced by a CPU with two changes what the cabinet can connect without extra hardware, and the photos prove what the current layout actually uses. The record is short; the confusion it prevents is not.

List the connected devices by name and reference: remote I/O stations, drives, HMIs, and any switches in the path. Each one holds a configured relationship to the CPU that a part number alone does not describe. A drive that expects its controller under a specific device name will not resume on a replacement that arrives unnamed, no matter how exact the CPU reference is.

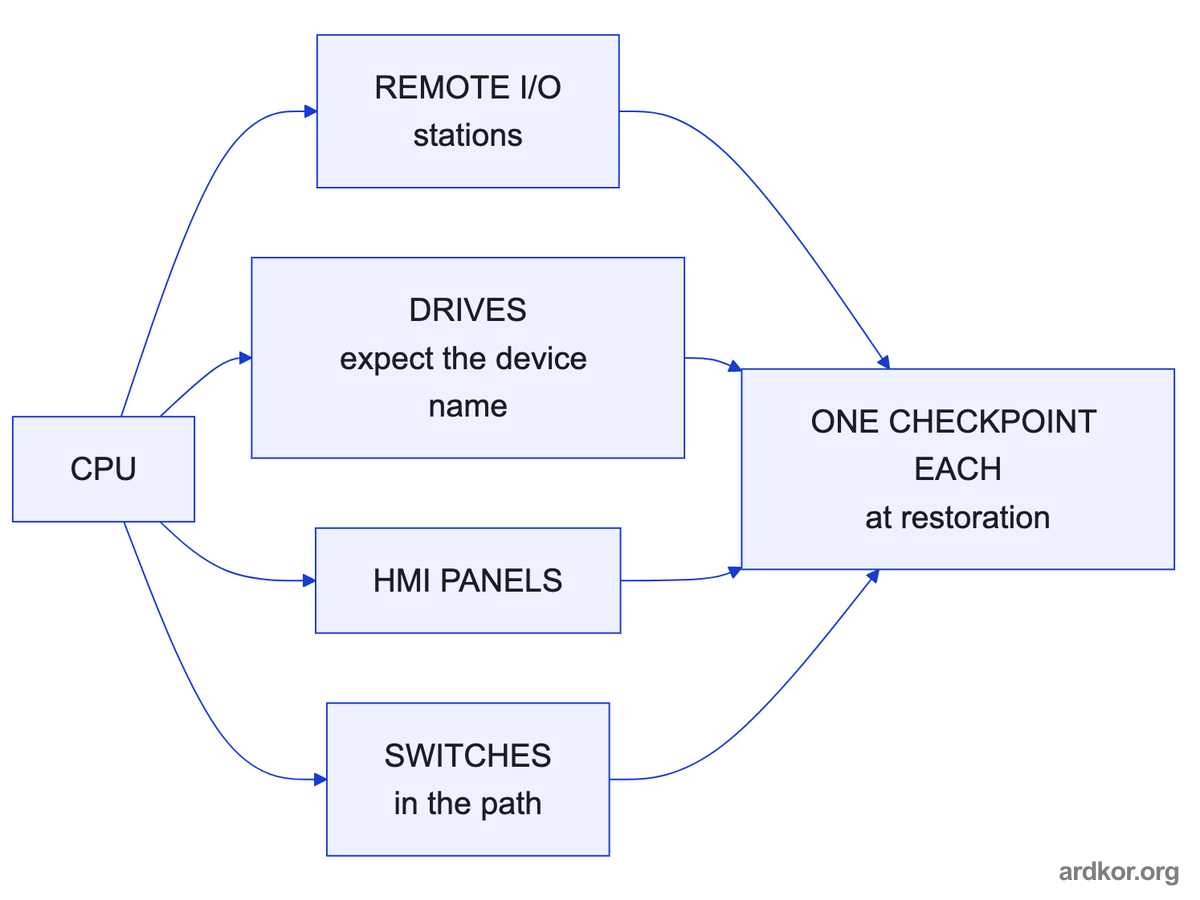

Enlarged system diagram

×

The branches are configured relationships, not network wiring. Each one must come back before the machine accepts the replacement.

Note how addressing is distributed on the network. Some plants run a dedicated engineering station that assigns names and addresses when devices are configured. Others rely on values held in each project. The difference decides who can restore the network identity and which tool they need, so it belongs in the record next to the device list.

Each device on that list becomes a checkpoint when a replacement is restored. The list is short to make and heavy to skip: without it, the restoration discovers its scope device by device during the outage, with every discovery costing downtime. A device that was configured once and never touched since is still a checkpoint, because the replacement resets the relationship.

Do not skip the switches on the grounds that they are infrastructure rather than devices. A switch sits in the path between the CPU and everything else, and its port assignments are the map that makes the cable labels meaningful. Record the switch reference too, because a failed switch is recovered faster than a failed CPU but interrupts more, and its replacement inherits the same port questions.

Photograph the network connections and the switch ports before disconnection. A photo of the switch face with cables in place, plus close-ups of any cable labels, turns port assignments into evidence instead of recollection. Port assignments are the first thing lost after a disconnection and among the most expensive to recover by tracing.

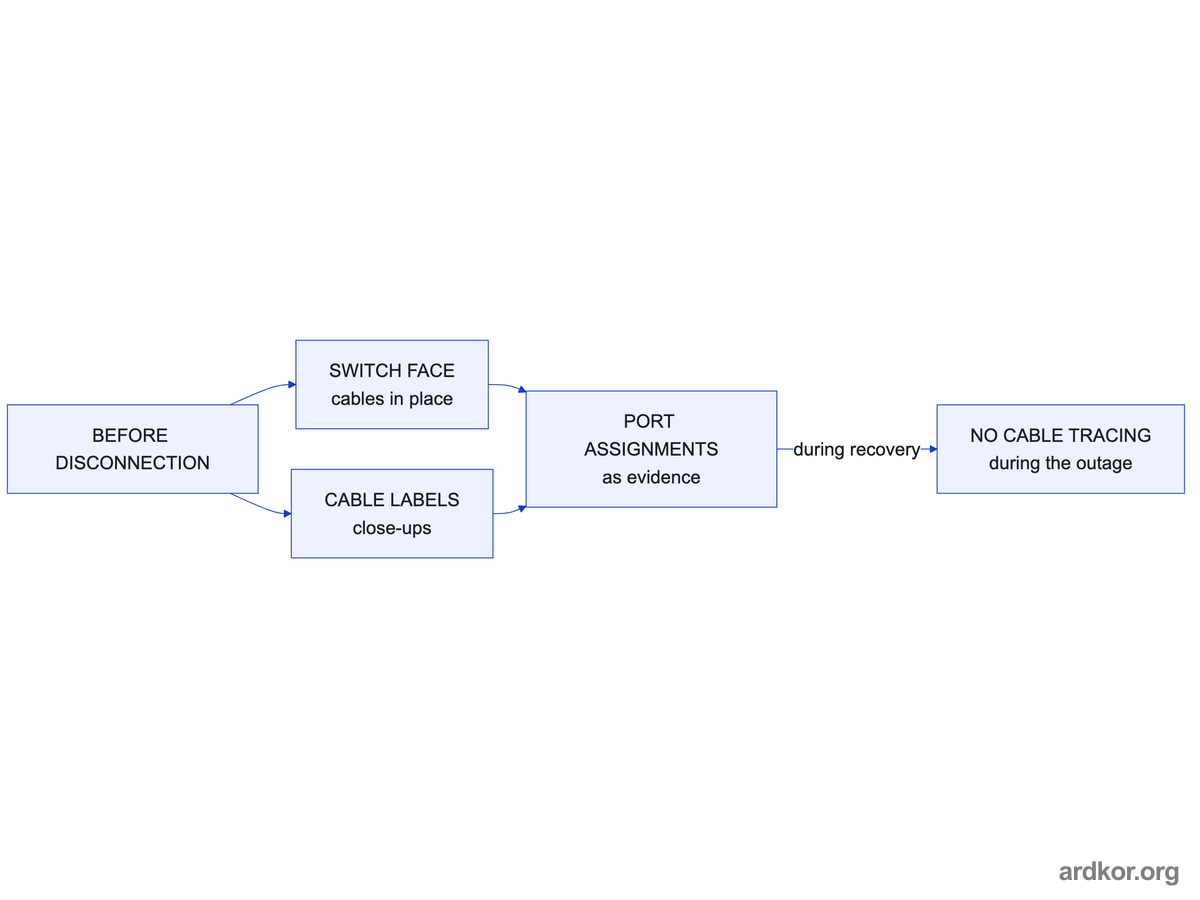

Enlarged system diagram

×

The photo pass has a deadline: it only works before anything is unplugged. The payoff arrives during the outage.

When the machine is stopped, that evidence shortens recovery, because nobody has to trace a cable back through a duct to learn where it went. Anyone who has done that tracing once knows why the photo matters. Ten seconds of camera work beats an hour of cable tracing.

The same pass is the moment to capture anything that will change: a switch due for replacement, a panel being rewired, a cable label that has faded. A photo taken after rewiring documents the new state, not the one the project expects, so the useful photo is always the one taken before the change. A faded label photographed today still reads; the same label next year may not.

Label quality decides whether the photos will help. If the existing cable labels are handwritten, faded, or missing, photograph them as they are and note the state in the record. Correcting labels is worthwhile but belongs to a planned window, because relabeling a running network introduces its own risk. An honest photo of a bad label beats a tidy record that does not match the cabinet.

A new CPU ships with default network settings and no project. It becomes a drop-in only after the project is restored, the device name and addressing are assigned, and the connected devices accept the restored controller. Each step depends on evidence captured earlier. That is why the network record is not a detail but a precondition for the whole replacement route.

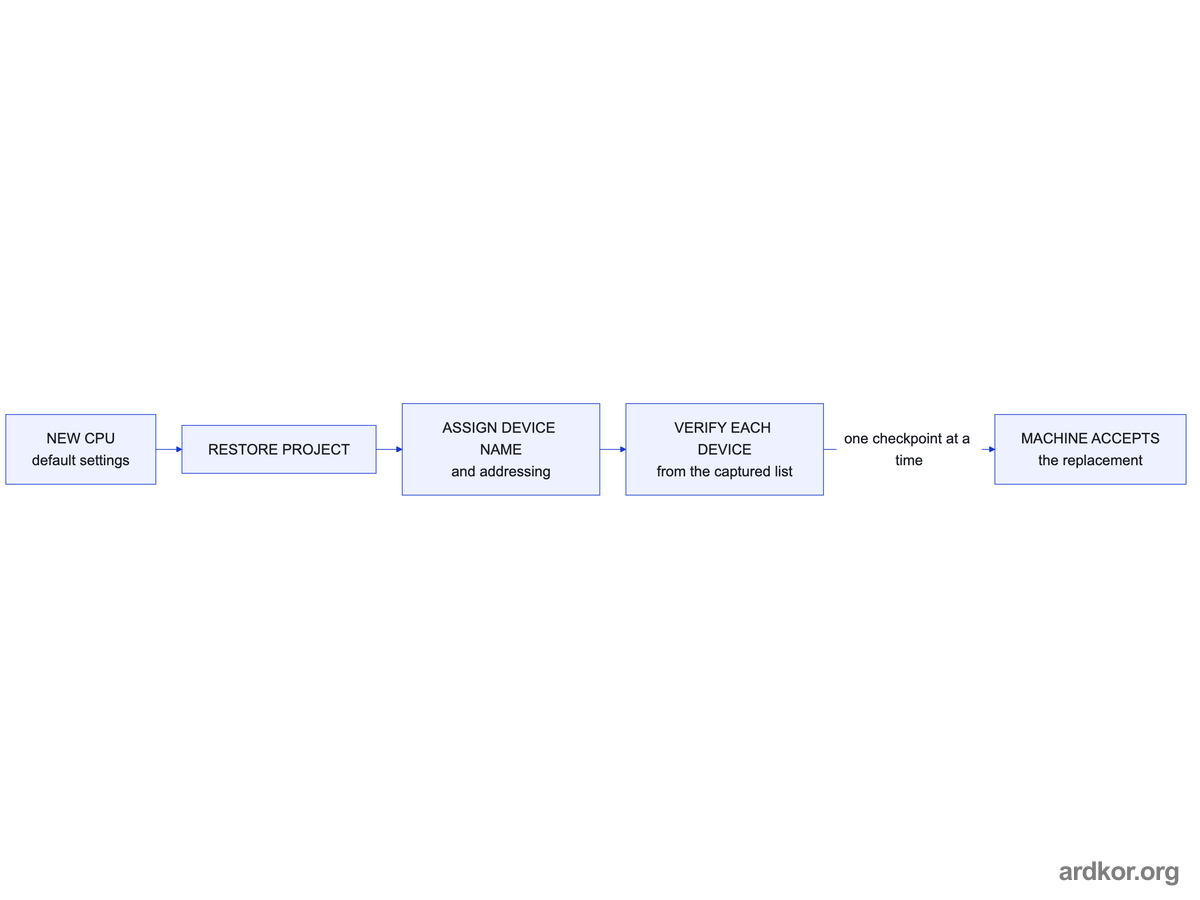

Enlarged system diagram

×

Three steps separate a boxed unit from a drop-in. The captured evidence feeds the checklist at the last step.

The restored identity also has to match what the connected devices expect. A replacement with the right order number but a slightly different device name or address can leave drives, remote I/O, and the HMI unable to re-establish their relationships. The device list you captured is the checklist for verifying that every relationship came back, one connection at a time.

Treat the network context as a required part of any request. A submission with the device name, the addressing, the port layout, and the connected device list lets a reviewer plan the restoration as a concrete sequence instead of an optimistic order. Where a value is unknown, record it as unknown. A stated gap is easier to plan around than a silent one.

Order matters in the restoration sequence, and the record can settle it in advance. The project comes back first because it carries the configuration, the identity assignment comes next because the connected devices expect a named controller, and the per-device checks come last because each one verifies a relationship. Reversing the order does not fail immediately, which is what makes it expensive: the failure appears as device after device refusing to resume.

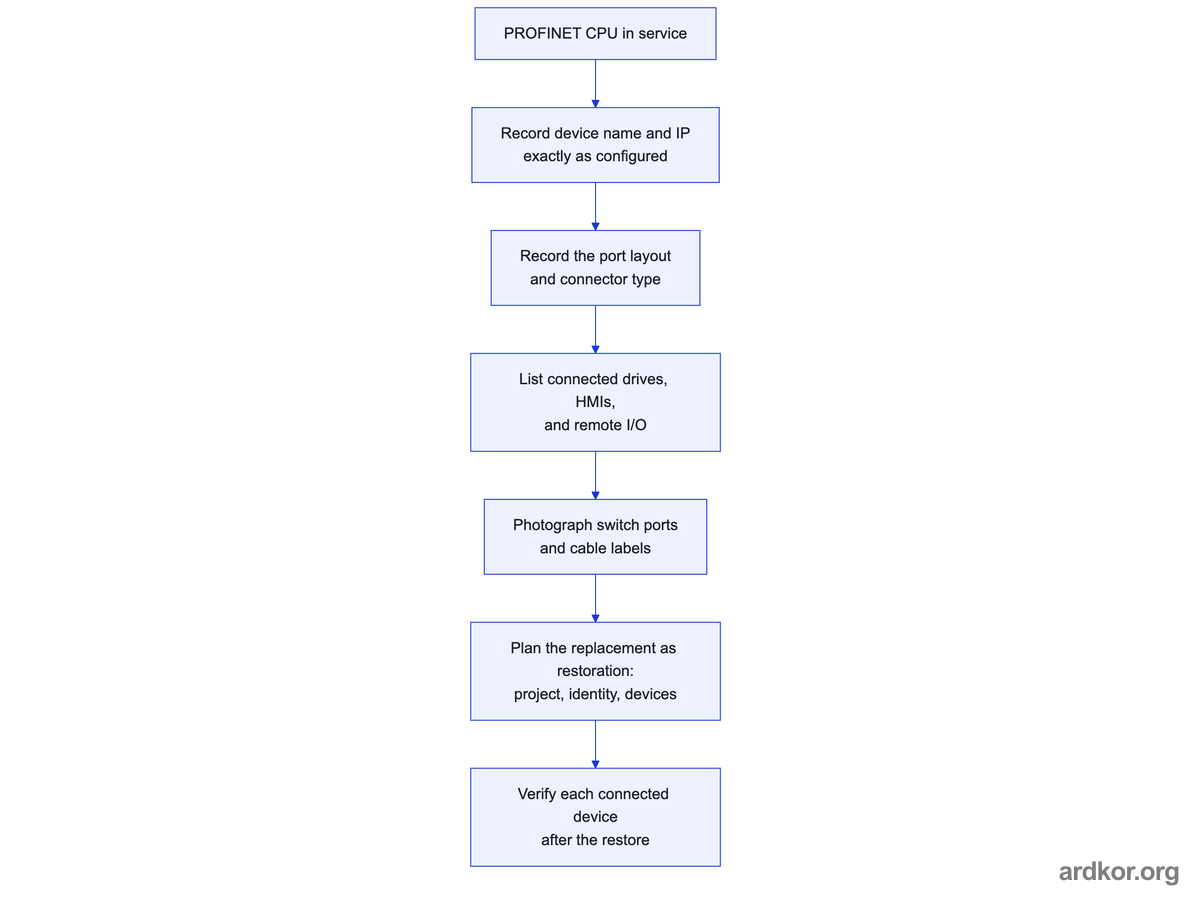

• Record the PROFINET device name and IP addressing exactly as configured, from the engineering tool where you can.
• Photograph ports, cable labels, and switch assignments before disconnecting anything.
• List every connected device. Each one expects a specific relationship to the CPU.
• Plan the replacement as a restoration: project, then network identity, then per-device checks.
