1756-EN2TR ControlLogix EtherNet/IP module

1756-EN2TR links ControlLogix data to EtherNet/IP through dual copper ports.

System role and ports

Rebuilt from individual evidence

Unknown: verification boundary

Rockwell Automation identifies 1756-EN2TR as a ControlLogix EtherNet/IP communication module with dual ports and Device Level Ring support.

It links the ControlLogix chassis to the EtherNet/IP network at the network edge through two 10/100 Mbps copper ports, with up to 128 TCP connections documented.

Unknown: network topology, firmware state and condition of an individual 1756-EN2TR unit.

Exact reference: 1756-EN2TR
Category: PLC / CPU
Evidence checked: 2026-09-11

System role

This section explains what the product does and where it acts in the surrounding system.

Function: Transmits ControlLogix data over EtherNet/IP through dual 10/100 Mbps copper ports.
System position: Links a ControlLogix chassis to the EtherNet/IP network at the network edge.
Upstream / inputs: ControlLogix chassis data enters the communication module.
Downstream / outputs: EtherNet/IP traffic leaves through the dual copper network ports.
Limitations: Unknown: network topology, firmware state and condition of an individual 1756-EN2TR unit.

Evidence ledger

Facts, inferences, and unknowns are kept separate.

Facts

Rockwell Automation identifies 1756-EN2TR as a ControlLogix EtherNet/IP communication module with dual ports and Device Level Ring support.
Confidence: high
- www.rockwellautomation.com — retrieved 2026-09-11; high confidence
The product page documents two 10/100 Mbps copper ports and support for up to 128 TCP connections.
Confidence: high
- www.rockwellautomation.com — retrieved 2026-09-11; high confidence

Inferences

The module links a ControlLogix chassis to an EtherNet/IP network at the network edge.
Confidence: high
Rationale: Rockwell documents the chassis communication module, dual copper ports and EtherNet/IP support.
- www.rockwellautomation.com — retrieved 2026-09-11; high confidence

Unknowns

Unknown: network topology, firmware state and condition of an individual 1756-EN2TR unit.
Confidence: low
Missing evidence: The product page does not provide a site topology, project file or individual unit inspection.

System position diagram

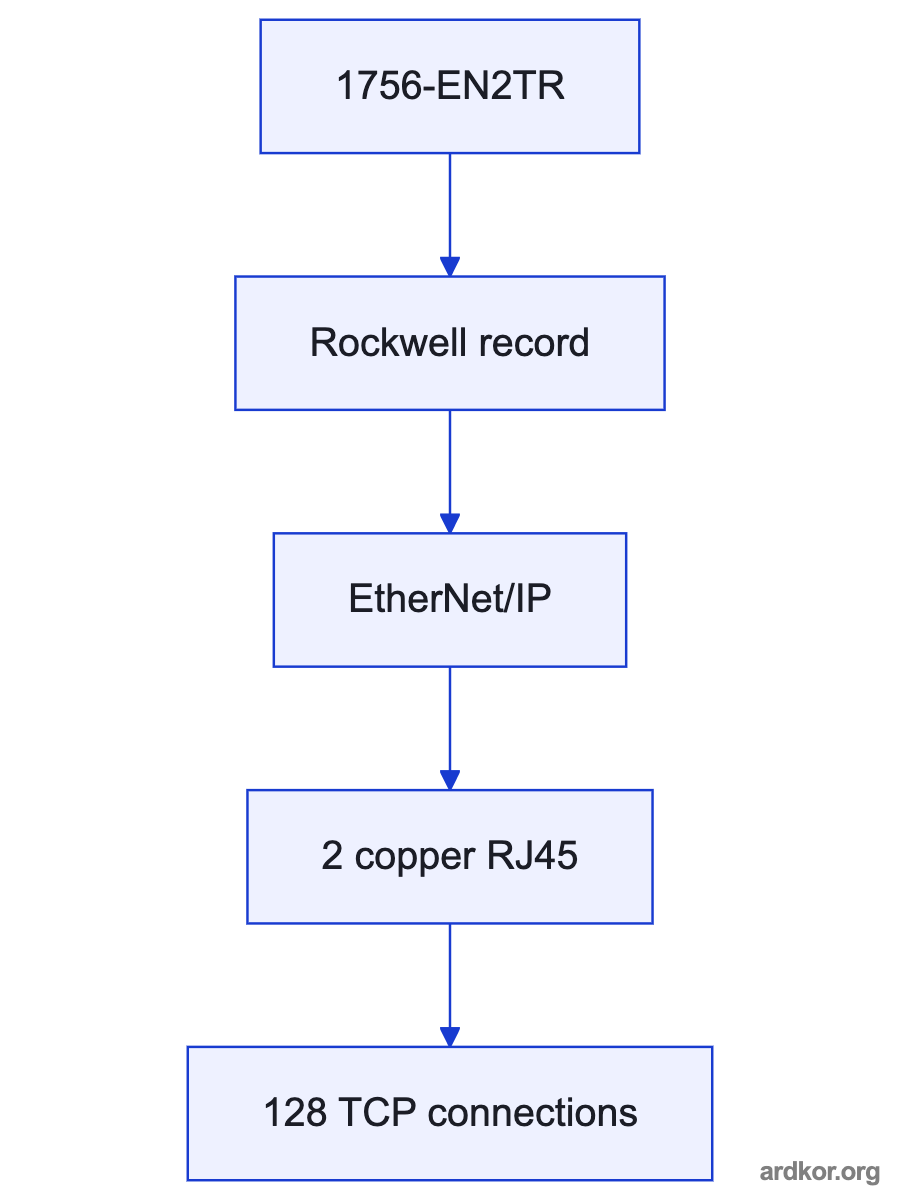

1756-EN2TR links a ControlLogix chassis with an EtherNet/IP network. — The module carries ControlLogix chassis data to and from the EtherNet/IP network.

View Mermaid source

flowchart LR
 chassis["ControlLogix chassis"] --> en["1756-EN2TR"]
 en <--> net["EtherNet/IP network"]

View diagram labels

Nodes: ControlLogix chassis; 1756-EN2TR; EtherNet/IP network
Edges: Chassis data; EtherNet/IP traffic

Next action

The Rockwell evidence supports publishing this exact reference as a dual-port ControlLogix EtherNet/IP module.
