Siemens 6DR5220-0EG01-0AA0 SIPART PS2 Smart electropneumatic positioner, 4-20 mA/HART, double-acting

Siemens 6DR5220-0EG01-0AA0 is documented for the stated industrial system role: Regulates a double-acting pneumatic actuator from a 4-20 mA/HART command and provides the documented analog position-feedback path.

System function

Rebuilt from individual evidence

System position

Siemens identifies 6DR5220-0EG01-0AA0 as a SIPART PS2 Smart electropneumatic positioner for 4-20 mA/HART operation on double-acting pneumatic linear and part-turn actuators.

The Siemens product description specifies intrinsic-safety Ex i protection, a polycarbonate enclosure, M20x1.5 electrical and G1/4 pneumatic connections, and an analog 4-20 mA position-feedback module.

Regulates a double-acting pneumatic actuator from a 4-20 mA/HART command and provides the documented analog position-feedback path.

The system position is an explicit inference from the exact-reference evidence.

Unknown: installation-specific actuator sizing, air quality, HART configuration, certification conditions, and current service status.

Exact reference: 6DR5220-0EG01-0AA0
Category: PLC / CPU
Evidence checked: 2026-09-12

System role

This section explains what the product does and where it acts in the surrounding system.

Function: Regulates a double-acting pneumatic actuator from a 4-20 mA/HART command and provides the documented analog position-feedback path.
System position: Sits between the controller loop and the pneumatic actuator in the valve-positioning path.
Upstream / inputs: Receives the controller's 4-20 mA/HART command and the pneumatic supply for the actuator.
Downstream / outputs: Controls both actuator directions and exposes the documented 4-20 mA analog position feedback.
Limitations: Unknown: installation-specific actuator sizing, air quality, HART configuration, certification conditions, and current service status.

Evidence ledger

Facts, inferences, and unknowns are kept separate.

Facts

Siemens identifies 6DR5220-0EG01-0AA0 as a SIPART PS2 Smart electropneumatic positioner for 4-20 mA/HART operation on double-acting pneumatic linear and part-turn actuators.
Confidence: high
- mall.industry.siemens.com — retrieved 2026-09-12; high confidence
The Siemens product description specifies intrinsic-safety Ex i protection, a polycarbonate enclosure, M20x1.5 electrical and G1/4 pneumatic connections, and an analog 4-20 mA position-feedback module.
Confidence: high
- www.nexinstrument.com — retrieved 2026-09-12; medium confidence

Inferences

Inferred system position: Sits between the controller loop and the pneumatic actuator in the valve-positioning path.
Confidence: high
Rationale: The exact-reference sources establish the product identity and documented interfaces; their relationship to the stated upstream and downstream elements is marked as an inference.
- mall.industry.siemens.com — retrieved 2026-09-12; high confidence
- www.nexinstrument.com — retrieved 2026-09-12; medium confidence

Unknowns

Unknown: installation-specific actuator sizing, air quality, HART configuration, certification conditions, and current service status.
Confidence: low
Missing evidence: The individual lookup does not establish the installation, configured software, physical condition, or current commercial record.

System position diagram

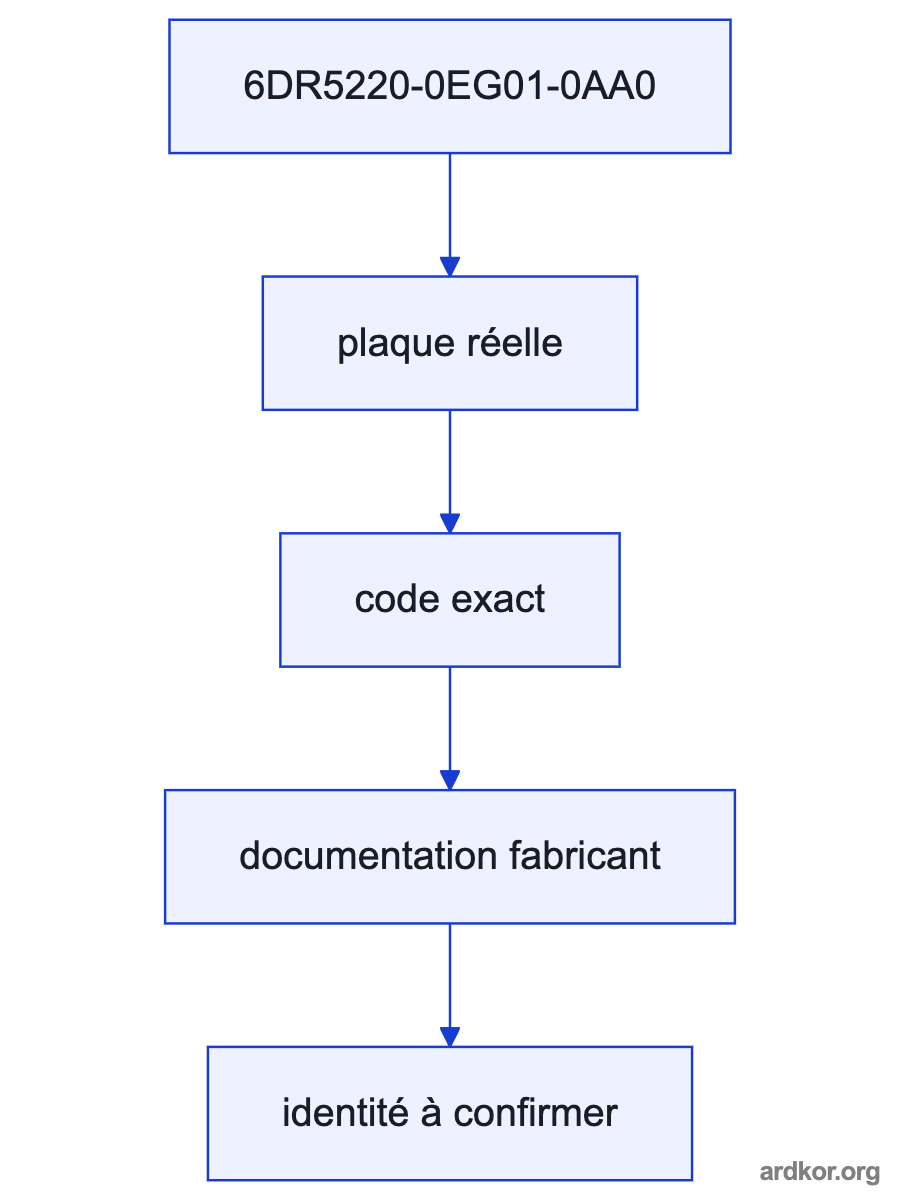

A system diagram places Siemens 6DR5220-0EG01-0AA0 SIPART PS2 Smart electropneumatic positioner, 4-20 mA/HART, double-acting between Controller 4-20 mA/HART loop and Double-acting pneumatic linear or part-turn actuator; the placement is marked as an inference. — The component placement between the documented upstream and downstream elements is an explicit inference.

View Mermaid source

flowchart LR; Upstream-->Component; Component-->Downstream

View diagram labels

Nodes: Controller 4-20 mA/HART loop; Siemens 6DR5220-0EG01-0AA0 SIPART PS2 Smart electropneumatic positioner, 4-20 mA/HART, double-acting; Double-acting pneumatic linear or part-turn actuator
Edges: Input and control data; Processed output

Next action

Siemens primary product evidence supports the exact identity, function, interfaces, system position, and documented limits.

Confirm the target controller, wiring, configuration, and installation constraints before deployment or replacement.
