Siemens 6EP1334-2BA20 SITOP PSU100S 24 V DC/10 A stabilized power supply

Siemens 6EP1334-2BA20 is documented for the stated industrial system role: Converts single-phase AC mains into a regulated 24 V DC, 10 A supply for PLC, I/O, HMI, and other control-panel loads.

System function

Rebuilt from individual evidence

System position

Siemens identifies 6EP1334-2BA20 as a SITOP PSU100S one-phase stabilized power supply with 120/230 V AC input and 24 V DC/10 A output.

Siemens documentation specifies 85-132 V and 170-264 V AC input ranges, 24 V DC output, 10 A rated current, and IP20 protection for the exact reference.

Converts single-phase AC mains into a regulated 24 V DC, 10 A supply for PLC, I/O, HMI, and other control-panel loads.

The system position is an explicit inference from the exact-reference evidence.

Unknown: cabinet load profile, protective-device coordination, wiring, ambient conditions, and installation-specific compliance.

Exact reference: 6EP1334-2BA20
Category: PLC / CPU
Evidence checked: 2026-09-12

System role

This section explains what the product does and where it acts in the surrounding system.

Function: Converts single-phase AC mains into a regulated 24 V DC, 10 A supply for PLC, I/O, HMI, and other control-panel loads.
System position: Sits at the head of the automation power chain between AC mains and the 24 V DC control bus.
Upstream / inputs: Receives single-phase AC within the documented 85-132 V or 170-264 V ranges.
Downstream / outputs: Supplies the downstream control bus with regulated 24 V DC at the documented 10 A rating.
Limitations: Unknown: cabinet load profile, protective-device coordination, wiring, ambient conditions, and installation-specific compliance.

Evidence ledger

Facts, inferences, and unknowns are kept separate.

Facts

Siemens identifies 6EP1334-2BA20 as a SITOP PSU100S one-phase stabilized power supply with 120/230 V AC input and 24 V DC/10 A output.
Confidence: high
- mall.industry.siemens.com — retrieved 2026-09-12; high confidence
Siemens documentation specifies 85-132 V and 170-264 V AC input ranges, 24 V DC output, 10 A rated current, and IP20 protection for the exact reference.
Confidence: high
- support.industry.siemens.com — retrieved 2026-09-12; high confidence

Inferences

Inferred system position: Sits at the head of the automation power chain between AC mains and the 24 V DC control bus.
Confidence: high
Rationale: The exact-reference sources establish the product identity and documented interfaces; their relationship to the stated upstream and downstream elements is marked as an inference.
- mall.industry.siemens.com — retrieved 2026-09-12; high confidence
- support.industry.siemens.com — retrieved 2026-09-12; high confidence

Unknowns

Unknown: cabinet load profile, protective-device coordination, wiring, ambient conditions, and installation-specific compliance.
Confidence: low
Missing evidence: The individual lookup does not establish the installation, configured software, physical condition, or current commercial record.

System position diagram

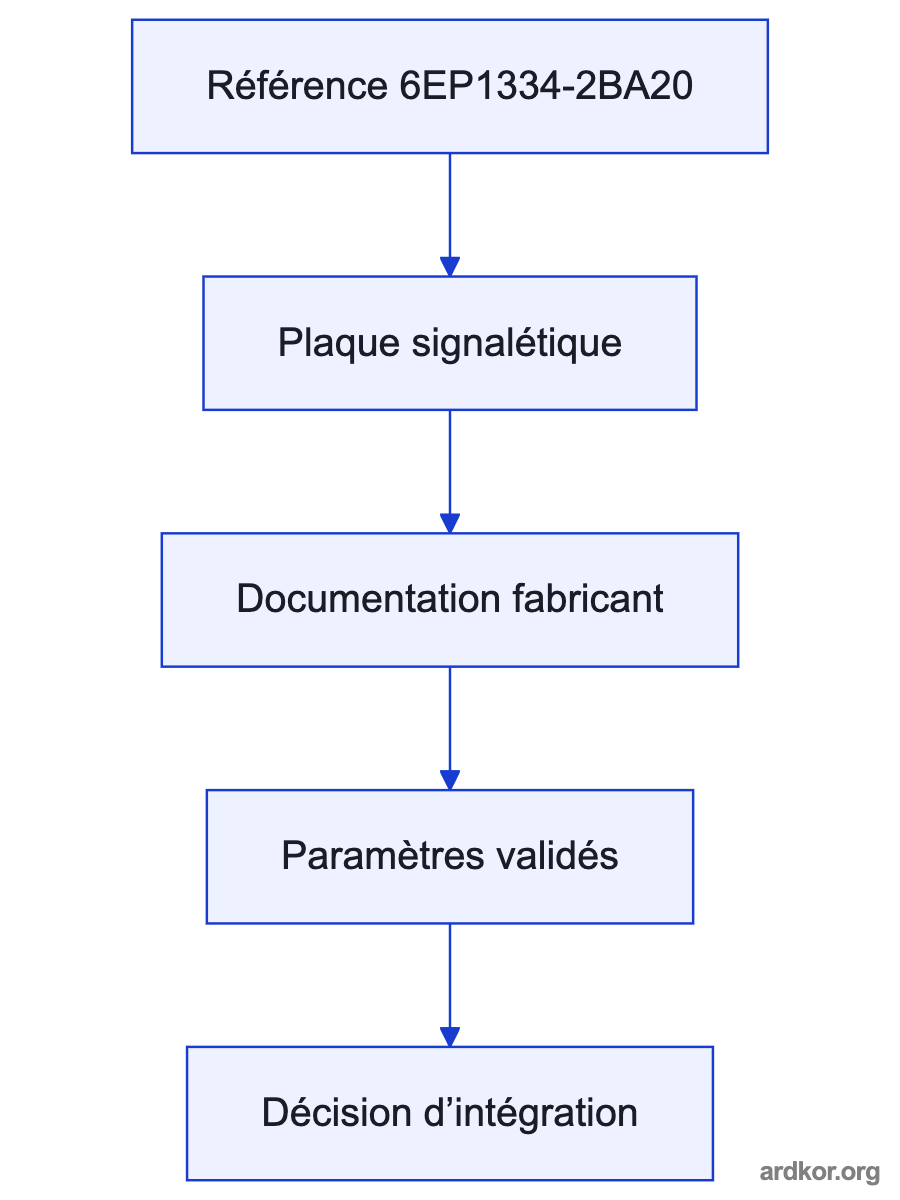

A system diagram places Siemens 6EP1334-2BA20 SITOP PSU100S 24 V DC/10 A stabilized power supply between Single-phase 120/230 V AC mains and 24 V DC automation control bus; the placement is marked as an inference. — The component placement between the documented upstream and downstream elements is an explicit inference.

View Mermaid source

flowchart LR; Upstream-->Component; Component-->Downstream

View diagram labels

Nodes: Single-phase 120/230 V AC mains; Siemens 6EP1334-2BA20 SITOP PSU100S 24 V DC/10 A stabilized power supply; 24 V DC automation control bus
Edges: Input and control data; Processed output

Next action

Two Siemens primary sources support the exact SITOP identity, electrical specifications, and concrete panel-power role.

Confirm the target controller, wiring, configuration, and installation constraints before deployment or replacement.
