Siemens 6EP1336-2BA10 SITOP PSU100S 20 A supply

Siemens 6EP1336-2BA10 is a SITOP PSU100S supply that converts automatic-range AC input to isolated 24 V DC at 20 A.

System function

Rebuilt from individual evidence

Evidence and limits

6EP1336-2BA10 is a Siemens SITOP PSU100S supply with automatic 120/230 V AC range selection and a controlled isolated 24 V DC output at 20 A.

Its system position is the AC-to-DC conversion point feeding cabinet control distribution; the output can be adjusted from 24 V to 28 V through the documented potentiometer.

The Siemens sheet specifies up to 480 W output.

Unknown: the installed cabinet load, wiring, ambient conditions, service status, and replacement compatibility.

Exact reference: 6EP1336-2BA10
Category: PLC / CPU
Evidence checked: 2026-09-12

System role

This section explains what the product does and where it acts in the surrounding system.

Function: Converts single-phase AC input into a controlled isolated 24 V DC output rated at 20 A.
System position: Sits between the single-phase AC source and the cabinet 24 V DC distribution path.
Upstream / inputs: The automatic-range AC input receives the incoming single-phase supply.
Downstream / outputs: The isolated 24 V DC output feeds downstream cabinet control loads.
Limitations: Unknown: the installed cabinet load, wiring, ambient conditions, service status, and replacement compatibility.

Evidence ledger

Facts, inferences, and unknowns are kept separate.

Facts

Siemens identifies 6EP1336-2BA10 as a SITOP PSU100S 20 A stabilized power supply with 120/230 V AC input and 24 V DC output.
Confidence: high
- support.industry.siemens.com — retrieved 2026-09-12; high confidence
Siemens specifies automatic range selection across 85-132 V AC and 176-264 V AC input ranges.
Confidence: high
- support.industry.siemens.com — retrieved 2026-09-12; high confidence
Siemens specifies a controlled isolated 24 V DC output rated at 20 A and up to 480 W.
Confidence: high
- support.industry.siemens.com — retrieved 2026-09-12; high confidence
Siemens specifies an adjustable 24-28 V output range through a potentiometer.
Confidence: high
- support.industry.siemens.com — retrieved 2026-09-12; high confidence

Inferences

The supply sits between the single-phase AC source and the cabinet 24 V DC distribution path.
Confidence: high
Rationale: The exact Siemens specification names the AC input and isolated DC output, which establishes the conversion point in the cabinet power path.
- support.industry.siemens.com — retrieved 2026-09-12; high confidence

Unknowns

Unknown: the installed cabinet load, wiring, ambient conditions, service status, and replacement compatibility.
Confidence: low
Missing evidence: No installation-specific cabinet, wiring, environmental, service, or replacement record was captured.

System position diagram

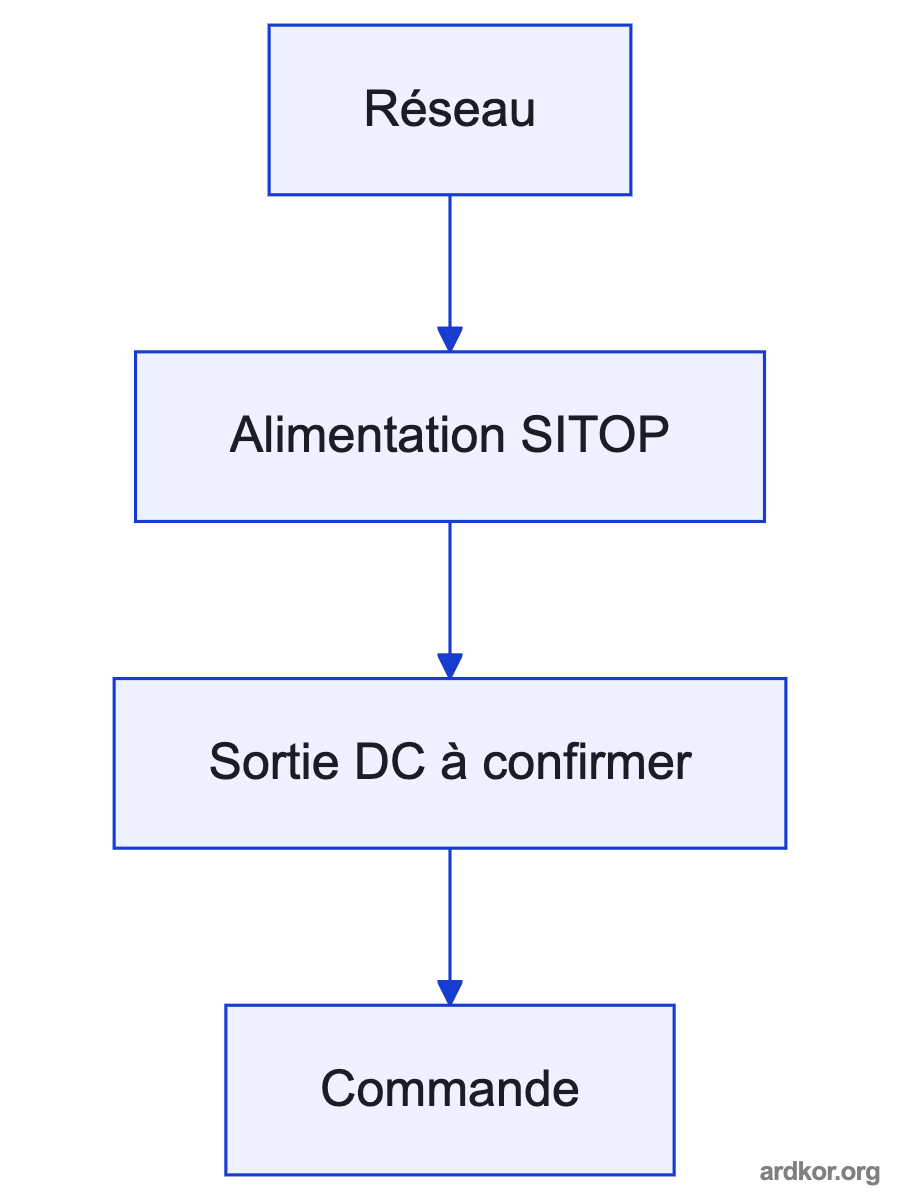

A single-phase AC source feeds the 6EP1336-2BA10 SITOP PSU100S, which supplies isolated 24 V DC at 20 A to cabinet control distribution. — The Siemens input and output specifications establish this cabinet conversion path.

View Mermaid source

flowchart LR
  ac["Single-phase AC source"] -->|automatic 85-264 V AC range| psu["6EP1336-2BA10 SITOP PSU100S"]
  psu -->|isolated 24 V DC, 20 A| bus["Cabinet control distribution"]

View diagram labels

Nodes: Single-phase AC source; 6EP1336-2BA10 SITOP PSU100S; Cabinet control distribution
Edges: Automatic 85-264 V AC range; Isolated 24 V DC, 20 A

Next action

The captured Siemens evidence supports a concrete 20 A, 24 V DC cabinet-supply role for this exact article.

Confirm the selected AC range, output setting, and cabinet load before replacement.
