Siemens 6ES7521-1BL00-0AB0 DI 32x24VDC HF digital input module

Siemens 6ES7521-1BL00-0AB0 DI 32x24VDC HF: 32 inputs, optional counters on channels 0 and 1, diagnostics, and 0.05 to 20 ms delay.

System function and position

Rebuilt from individual evidence

A 32-channel 24 V DC digital input module for S7-1500 and distributed Siemens I/O configurations, with optional counter operation on channels 0 and 1.

Unknown: local interchangeability, availability, and the correct architecture, firmware, channel mode, and connector selection for a particular installation require separate evidence.

A supported use case is high-channel-count discrete acquisition where optional counting and per-channel diagnostics are useful.

Exact reference
6ES7521-1BL00-0AB0
Category
PLC / CPU
Evidence checked
2026-09-11

System role

This section explains what the product does and where it acts in the surrounding system.

Function
Receives 32 channels of 24 V DC digital signals, with channels 0 and 1 optionally configured for counting.
System position
Acts in the S7-1500 or Siemens I/O input stage between field switches or proximity sensors and S7-1500 control logic.
Upstream / inputs
24 V DC signals from switches or 2-wire, 3-wire, and 4-wire proximity switches feed the input channels.
Downstream / outputs
The module passes input states to the S7-1500 user program and can provide counted values and status through its counting feedback interface.
Limitations
Unknown: exact compatibility, installed parameterization, safety suitability, and live commercial availability require separate evidence.

Evidence ledger

Facts, inferences, and unknowns are kept separate.

Facts

  • Siemens identifies 6ES7521-1BL00-0AB0 as the DI 32x24VDC HF digital input module in the S7-1500 and ET 200MP documentation family.

    Confidence: high

  • The module has 32 digital inputs electrically isolated in groups of 16 and a rated input voltage of 24 V DC.

    Confidence: high

  • Channels 0 and 1 can optionally operate together in counter mode, while channels 2 through 31 remain available as digital inputs.

    Confidence: high

  • The input delay is configurable from 0.05 ms to 20 ms, and diagnostics and hardware interrupts are configurable per channel.

    Confidence: high

  • The documented input sources include switches and 2-wire, 3-wire, and 4-wire proximity switches.

    Confidence: high

  • The manual lists central operation with an S7-1500 CPU and distributed operation on PROFINET IO or PROFIBUS DP in an ET 200MP system.

    Confidence: high

  • In counting mode, the feedback interface supplies current counted values and status information to the user program.

    Confidence: high

  • The manual states that the front connector, including potential jumpers and cable ties, must be ordered separately.

    Confidence: high

Inferences

  • The module occupies the input stage between 24 V DC field switches or proximity sensors and S7-1500 control logic, either centrally or through an ET 200MP station.

    Confidence: high

    Rationale: The manual documents the input signal types and both central and distributed S7-1500-family configurations, which establishes the system position without asserting a specific cabinet layout.

  • A supported use case is high-channel-count discrete acquisition where optional counting and per-channel diagnostics are useful.

    Confidence: medium

    Rationale: This use-case summary combines the documented channel count, counter mode, input delay, diagnostics, and interrupt functions without naming an unsupported machine.

Unknowns

  • Unknown: compatibility with a particular CPU, interface-module firmware, channel parameter set, or replacement part requires the installed configuration.

    Confidence: low

    Missing evidence: The captured documentation describes supported configurations and dependencies but does not identify the user's installed hardware or project settings.

  • Unknown: current stock, price, repair status, warranty, and local service availability are not established by the captured sources.

    Confidence: low

    Missing evidence: The captured sources are technical documentation and a catalog record, not a live stock or service confirmation for a location.

  • Unknown: safety-rated or emergency-stop suitability is not established.

    Confidence: low

    Missing evidence: No safety certification or safety-application assessment was captured for this exact reference.

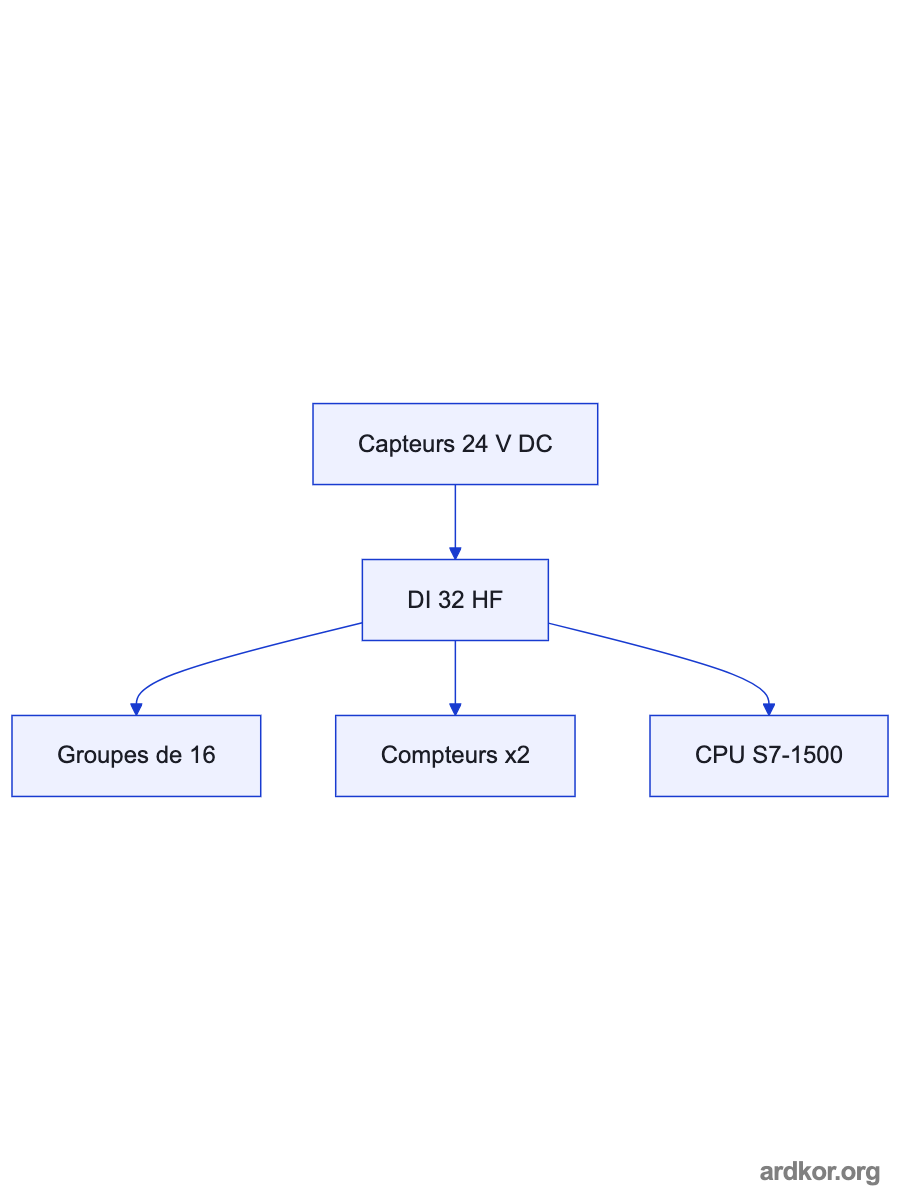

System position diagram
