Drive environment checks before a replacement

Heat is the factor that most often kills a like-for-like swap. Drives carry a rated ambient temperature, commonly around 40 degrees C for many models with derating above it, and the rating applies to the air at the drive, not the room outside the cabinet. The distinction matters because cabinets trap heat, and a comfortable workshop says little about the air column a drive actually lives in.

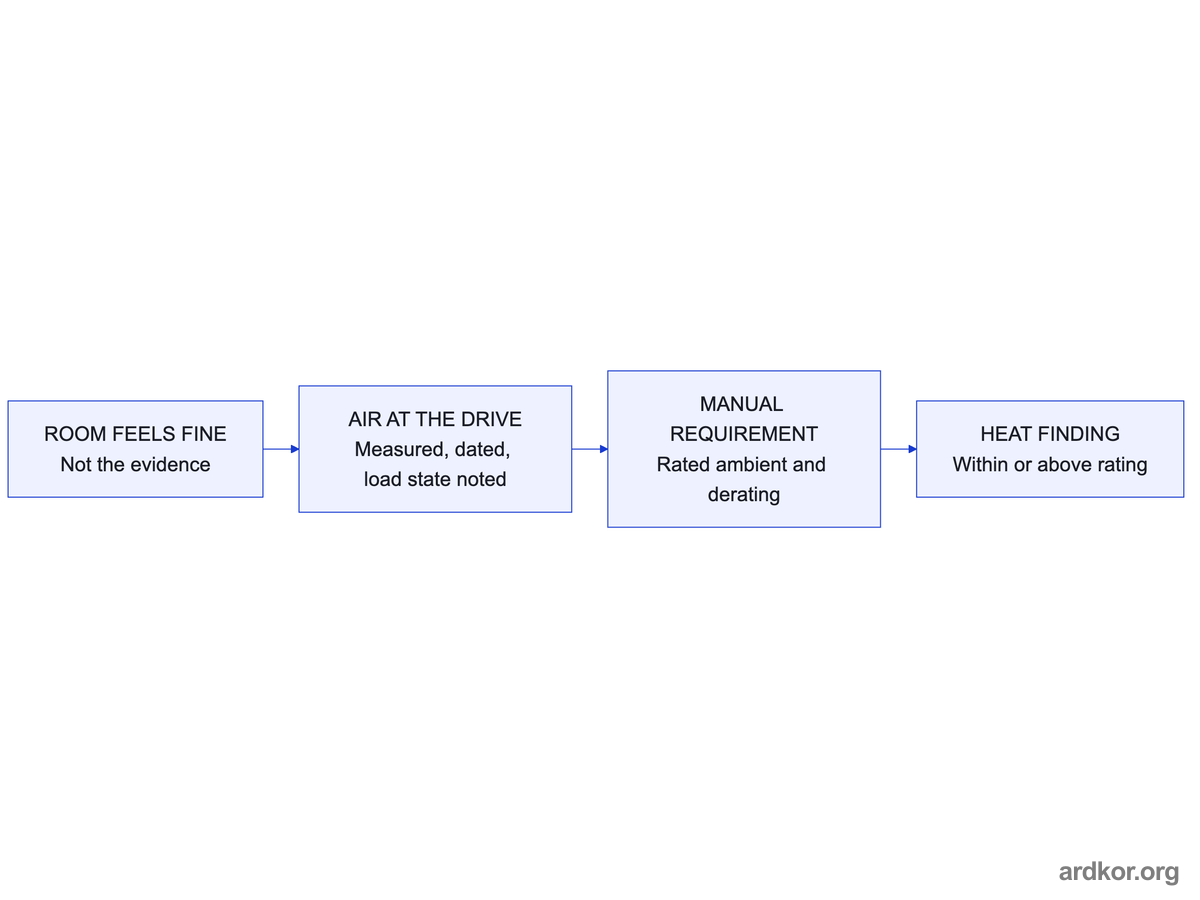

Enlarged system diagram

×

The comparison records one measured moment against stated requirements. It does not characterize the cabinet across seasons, and repeat readings improve the record.

Measure or estimate the temperature where the drive actually sits, ideally with a logged reading across a full production cycle, and record when you took it. Note whether the cabinet cools by forced ventilation or by natural convection, because the two behave very differently on a warm day. A summer afternoon reading and a winter morning reading are not the same evidence.

If you can only take one reading, take it when the machine is at full load on a warm day, because that is the condition the drive has to survive. The installation documentation states the ambient requirements and the derating that applies above them, and comparing your measured reality against those numbers is the first real environment finding. Write the comparison down with its date, because a temperature is a measurement at a moment, not a permanent property of the cabinet.

Where the rating question matters, the manual wins over habit. The quick installation guides of modern families state the ambient conditions, the altitude limits, and the derating percentages explicitly, and those numbers are the reference the measured reading should meet. A reading that lands above them is not a failure of the drive; it is a finding that changes which replacement, cooling, or derating decision the record can support.

Inspect the cooling path with the equipment isolated. Drive fans clog, cabinet filter mats load up with dust, and heat sinks fill with debris that no longer lets air through. Every one of those changes the temperature story that the rated ambient assumed, and none of them shows up from outside the cabinet.

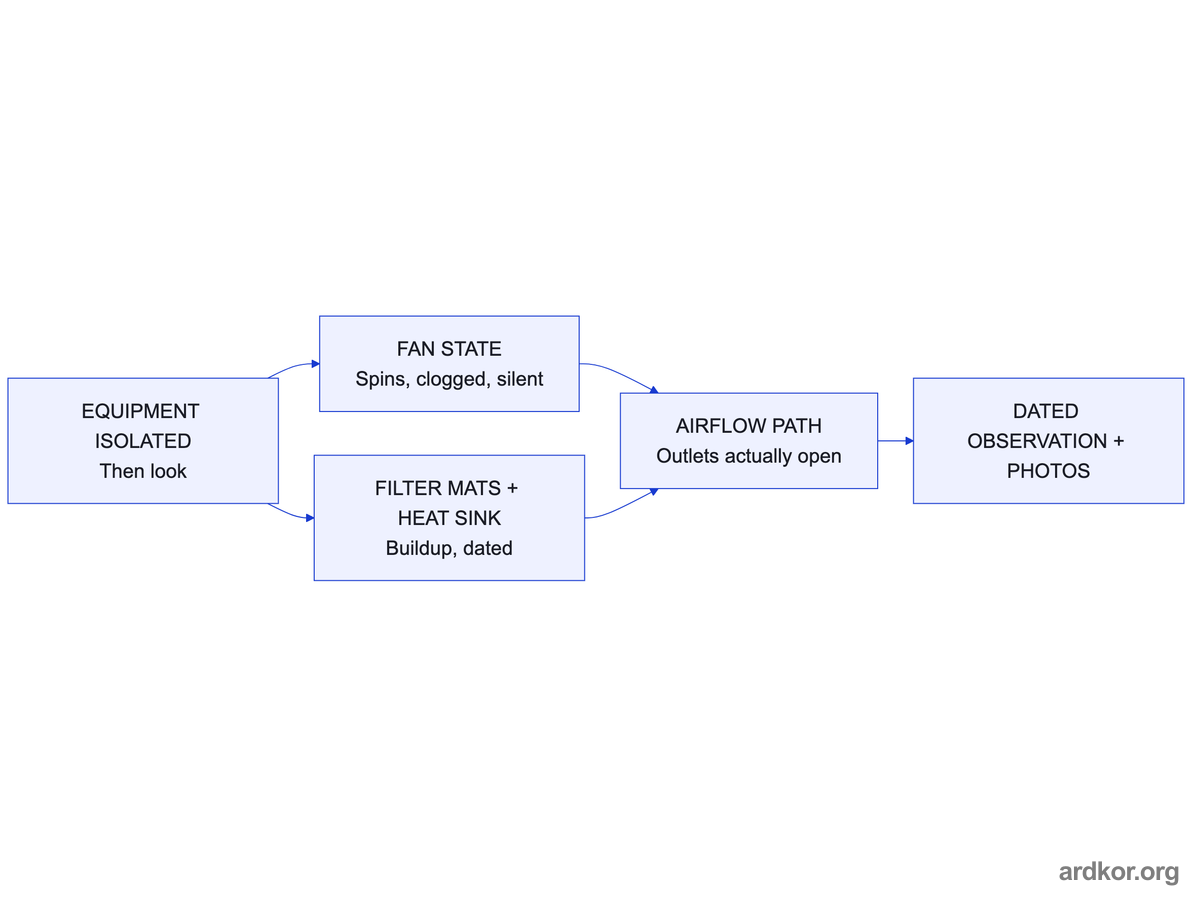

Enlarged system diagram

×

The inspection is visual and takes place under isolation. Cleaning or replacing parts is a separate maintenance task for qualified personnel.

Check that the airflow path is actually open, because added wiring, a shelf, or a new component can block the outlet the drive was designed around. Record the fan and filter states as dated observations, since they change over weeks and a stale note misleads the next reader. A photo of the filter mat and the fan inlet does that job well, and it also documents how much material had built up.

Record the finding even when the path is clean, because a dated clean note is evidence that the cooling system was working on the day you looked. The next reader can then tell the difference between a cabinet whose cooling has always been marginal and one that degraded last month. Inspection here means looking with the equipment isolated; cleaning and fan replacement are maintenance actions for qualified personnel.

Give clearance its own line in the record. Manufacturer installation instructions specify minimum distances above, below, and beside drives for cooling, and stacked installations eat that margin fast. The gaps that were respected at commissioning tend to shrink as the cabinet fills, and nobody updates the drawing when a new contactor squeezes in.

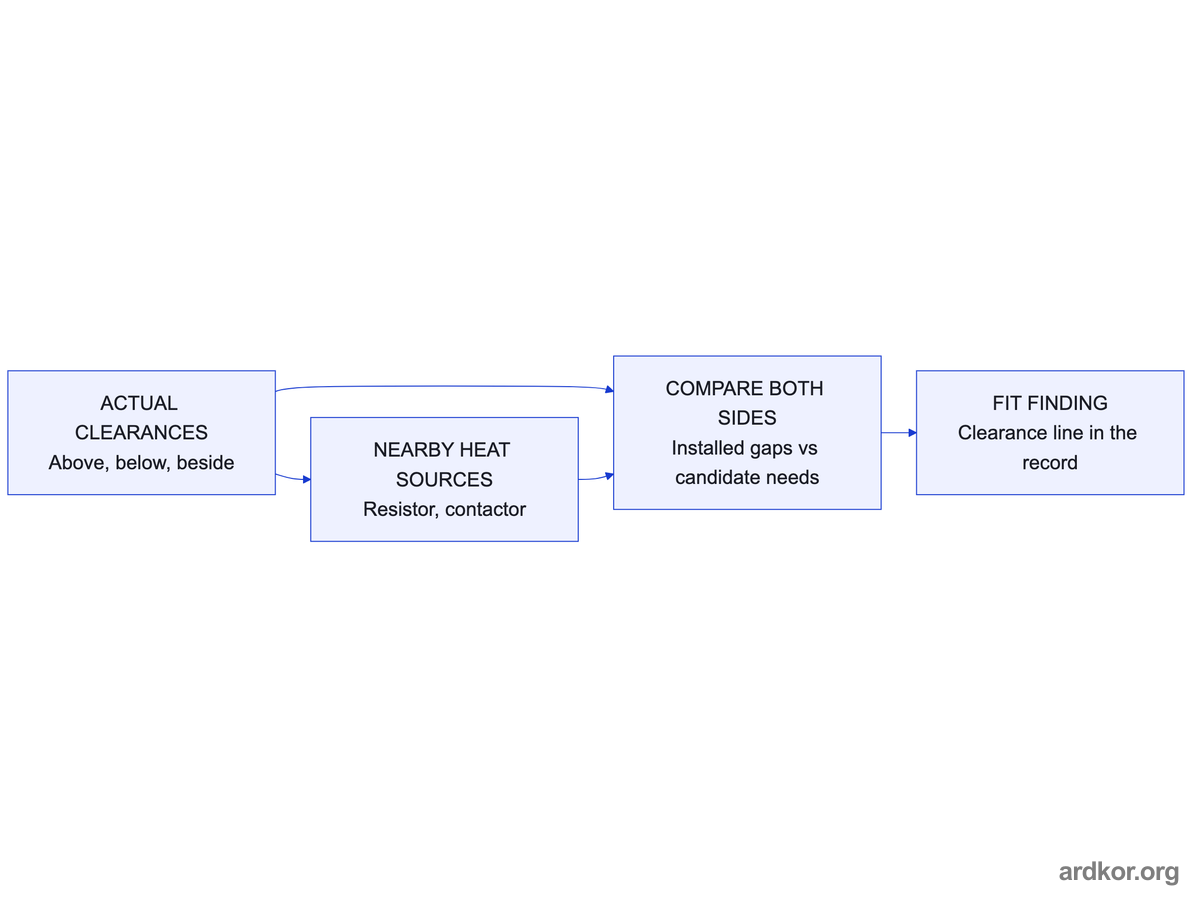

Enlarged system diagram

×

The comparison uses each family's stated requirements, not a general rule. It documents space and heat, not thermal performance under load.

Note the actual clearances around the installed unit and any heat source next to it, such as a braking resistor or a contactor running warm. A nearby component that heats the drive's air is a clearance finding even when the distances technically meet the drawing. Photograph the surroundings, because the next reader will want to see what shared the air column.

The clearance check runs on both sides of the comparison. Note the installed unit's actual gaps, and check the candidate's installation instructions rather than the old drive's, because clearance requirements differ between families. A candidate drive that runs cooler but needs more clearance can still be the wrong answer for the same cabinet, and the sizing article treats this as its own line for exactly that reason.

Record what the air contains, not only what the surface looks like. Conductive dust from machining, carbon dust, and moisture from washdown or condensation each attack a drive differently, and the drive's protection class only covers part of that exposure. Even ordinary workshop air carries enough grit to matter over years, so describe what you actually see rather than what the room is supposed to be.

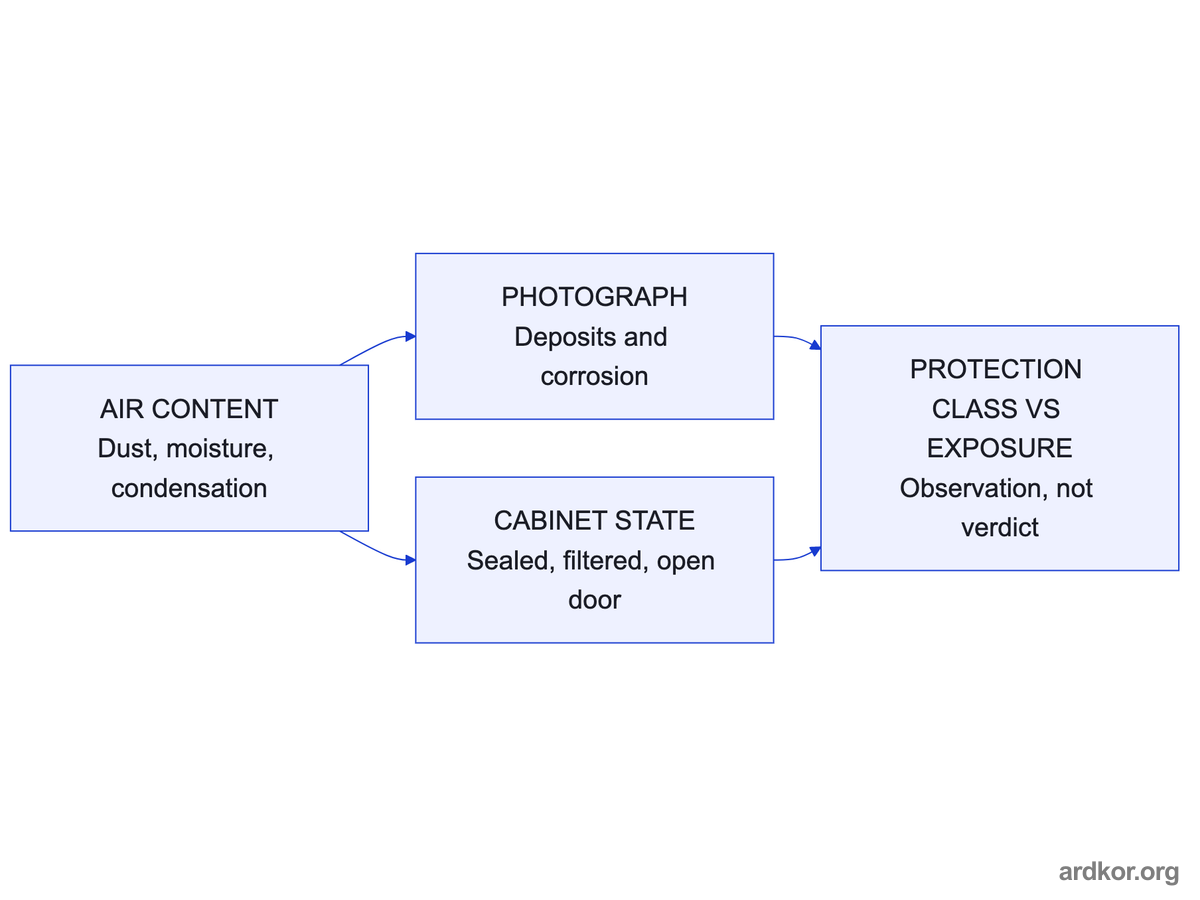

Enlarged system diagram

×

The comparison documents exposure against stated ratings. It does not measure ingress protection, and upgrading the class is a decision for the sizing record.

Exposure also travels in from the process side. A machine that washes down twice a shift, a nearby grinding station, or a duct that dumps warm shop air across the cabinet are all environment facts, and they belong in the record even when the inside of the cabinet still looks presentable. The damage such exposure causes shows up years later in terminals and bearings, long after the daily reality that caused it has been forgotten.

Note whether the cabinet is sealed, filtered, or effectively open, and whether condensation marks show inside. Photograph any corrosion or deposits on terminals and heat sink fins, because those photos carry the finding better than adjectives. A door that stands open during shifts is an exposure fact, and it belongs in the record even if it annoys someone.

Compare the installed drive's enclosure class against the environment it actually lives in. A drive rated for a protected cabinet interior gains nothing from the cabinet if the filter mat is missing. Where the exposure clearly exceeds the installed protection, say so in the record as an observation rather than a verdict, and the replacement decision can then weigh a higher protection class or better cabinet sealing as part of the search. The cabinet itself belongs in the comparison alongside the drive that sits inside it.

Check the wiring condition while the cabinet is open. Loose power terminals, discoloration around connections, and heat-shrunk or cracked insulation are all intake evidence, recorded with photographs and a note of where you saw them. These observations feed the fault separation question as much as the environment question, because a poor connection mimics several other failure modes.

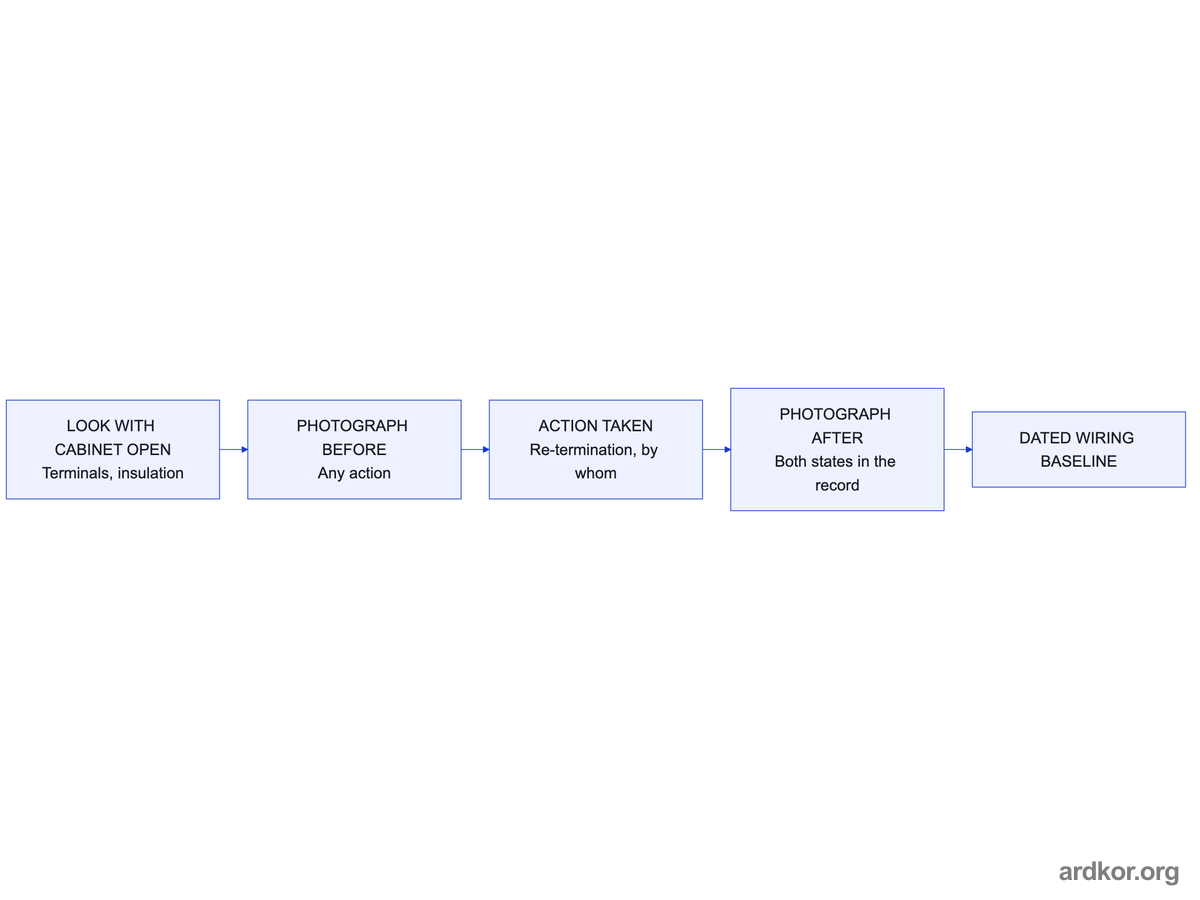

Enlarged system diagram

×

Observation precedes any work, and live circuit work stays with qualified personnel. The baseline records states, not causes.

Re-tightening a terminal changes the state, so record both the finding and any action taken. Photograph the terminal positions before and after any re-termination, so the record shows exactly what changed and when. An intervention that leaves no trace in the record turns into a mystery the next time the same terminal misbehaves.

Torque checks and thermal work on power circuits belong to qualified personnel with the equipment isolated, and the intake should mark clearly where the looking stopped and the touching started. A record that separates what was seen from what was tightened gives the next reader an honest baseline. That baseline is also what makes the environment record comparable over time, because the wiring state is now dated.

Finish with the duty the machine really imposes. Count starts per shift, note how often the load hits current limit, and describe whether the drive runs continuously or cycles. Frequent hard starts push the sizing toward a heavier overload duty class even when the continuous current looks comfortable, and a cyclic duty changes the thermal story entirely.

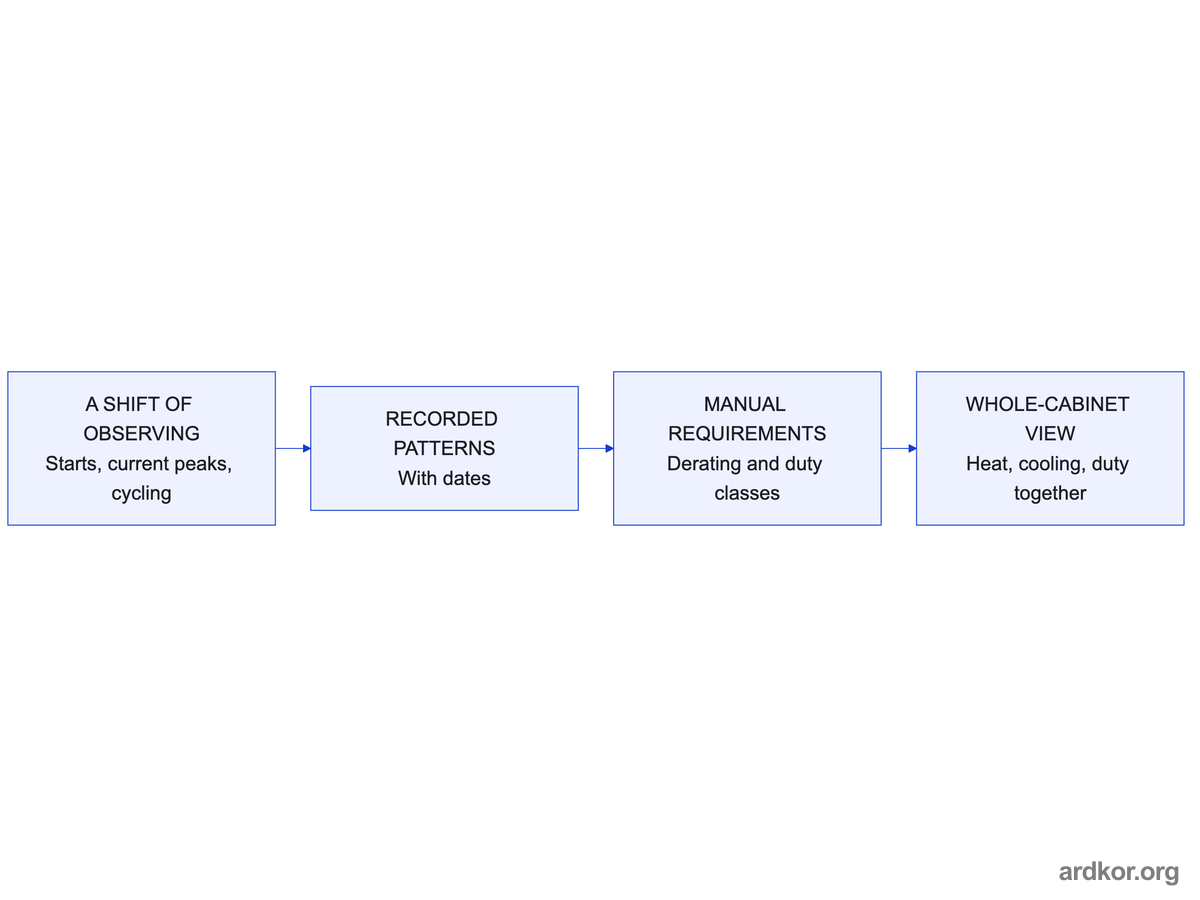

Enlarged system diagram

×

The patterns describe observed behavior on specific days. They do not measure the drive, and the manual comparison uses the candidate family's own data.

Record these as observed patterns with dates, then check them against the manufacturer's installation and derating requirements. The comparison, not the impression, is what a reviewer can reuse. Two machines that look identical on the floor can carry very different duty patterns, and the numbers are the only way to see that from paper.

The duty record closes the loop with the other findings, because heat, cooling, and duty interact. A cabinet that runs warm with light duty may be fine, while the same cabinet with a cyclic heavy load crosses a line. The environment record is complete when each finding carries its date and the set is compared against the requirements as a whole, not line by line in isolation.

Watch one full cycle rather than reconstructing one from memory. The observation can be as simple as noting the clock time at each start and the drive's display current at peak, taken while the machine runs its normal product. What the record gains is a pattern with dates that anyone can re-check by repeating the same observation, which is the property that separates evidence from opinion.

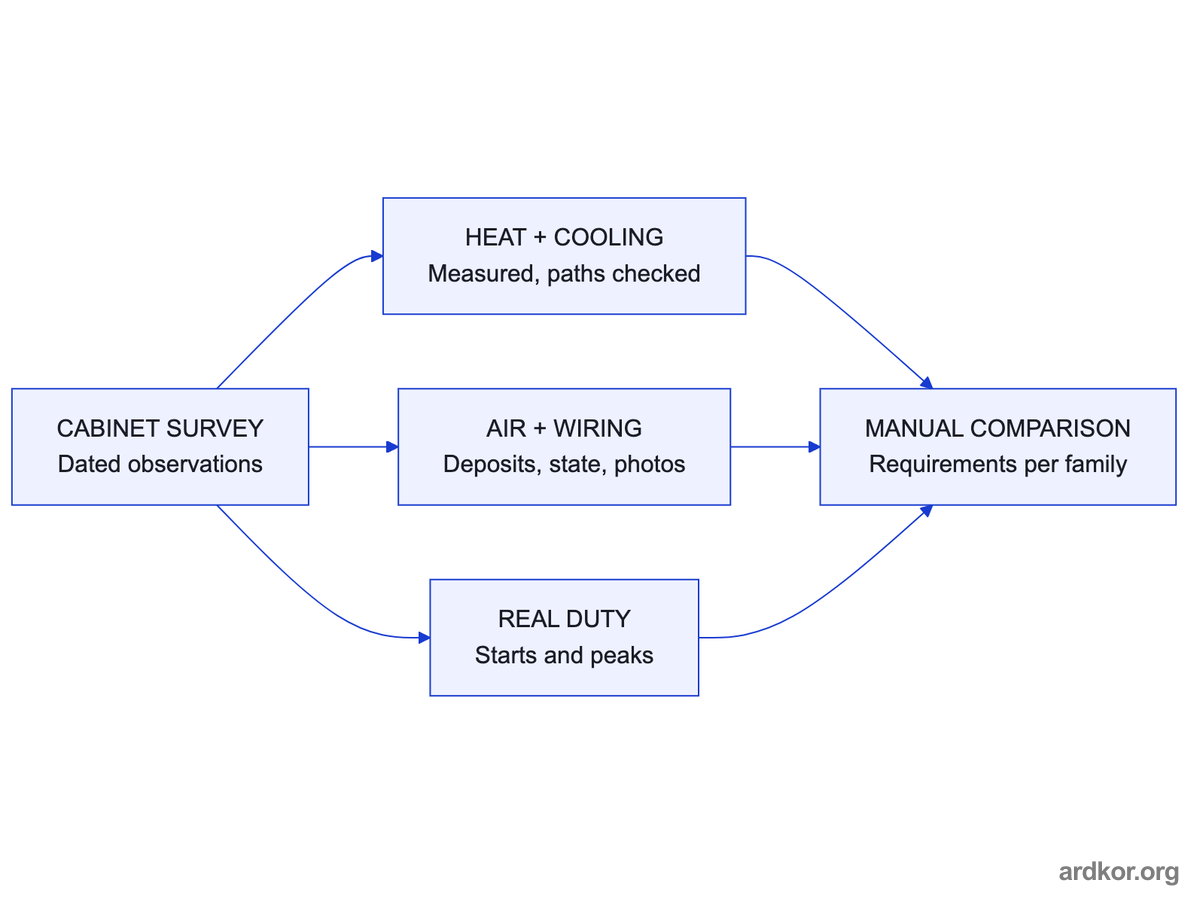

• Record measured cabinet temperature near the drive, with the date and the production state.
• Inspect and photograph the cooling path, filters, clearances, and nearby heat sources.
• Note dust, moisture, corrosion, and wiring condition as dated observations with photos.
• Describe the real duty cycle of starts and current peaks, then compare it with the manual.
