Why HMI communication ports matter

Start by separating three things that sit at the same connector: the physical port, the wiring standard, and the protocol running on top. The port is the socket. The wiring standard is how the conductors are used, for example RS-485. The protocol is the language, for example PROFINET or Modbus. A replacement needs all three to line up, and the third one is invisible unless you record it.

Enlarged system diagram

×

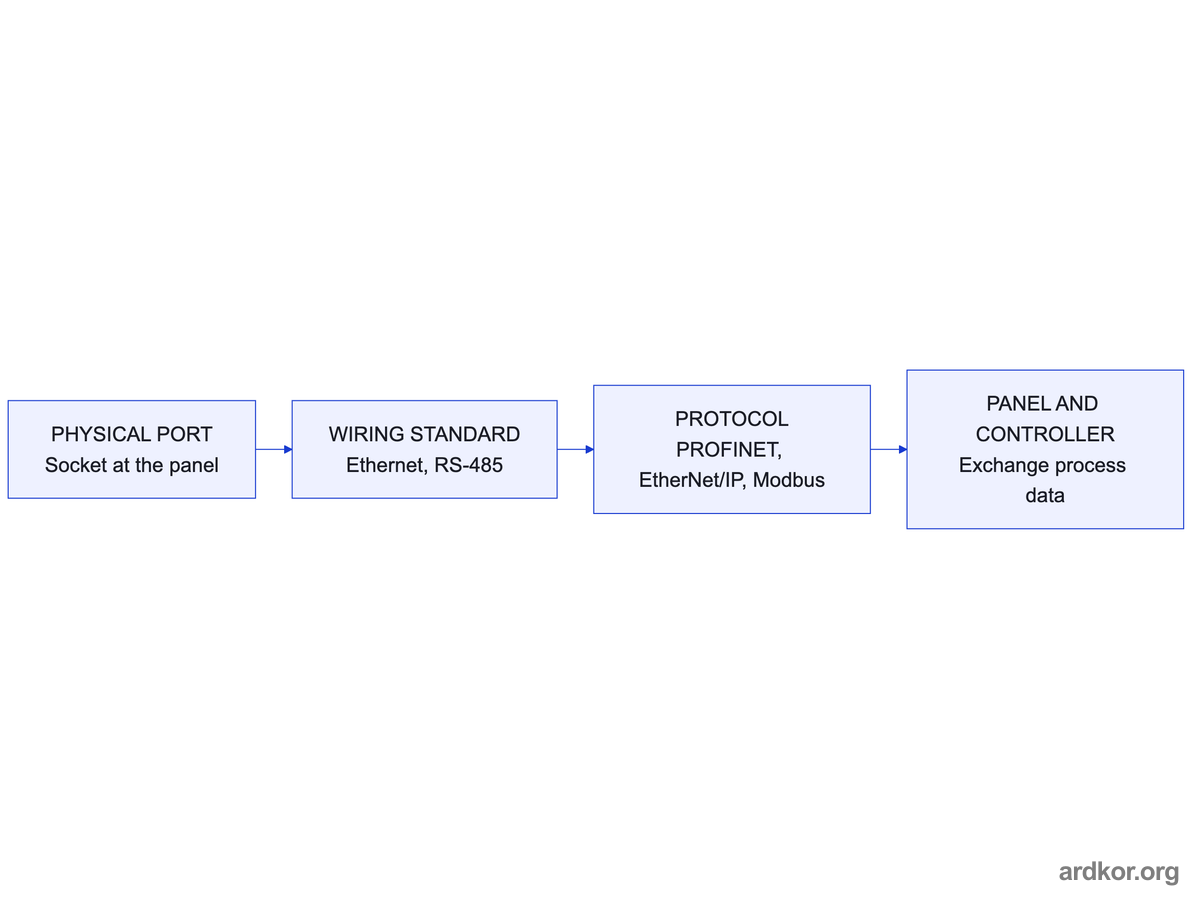

Read left to right as three stacked decisions, not one cable. Every layer must match before the panels talk.

That is why two Ethernet cables can look identical and carry protocols that never talk to each other. An Ethernet socket says nothing about whether the traffic is PROFINET, which is Siemens' industrial Ethernet protocol, or EtherNet/IP, or plain office traffic on a shared switch. The cable proves the path. The protocol decides whether the panel and the controller can actually hold a conversation.

Here is the observation worth making at the machine. Trace where each cable at the panel actually goes before you disconnect anything: to a PLC, to a dedicated switch, to a maintenance laptop, or into a duct you cannot follow. Label the cables while they are still plugged in. One clear photo of the connector side has settled more port debates than any drawing.

The limit of this section is honest: a recorded port and protocol tell you what exists today. They do not tell you whether a given replacement supports the same combination, and they do not confirm that the current setup was ever correct. Both questions stay open until the documentation for the exact reference is checked.

Build the port list from every physical connection the panel uses today, and do not stop at the obvious one. A Siemens Basic Panel such as a KTP700 normally reaches its PLC over PROFINET on the built-in Ethernet port. Comfort Panels add an MPI and PROFIBUS DP port that serves older controllers. A PanelView Plus 7 speaks EtherNet/IP over Ethernet, and older PanelView terminals relied on option modules for legacy networks such as DH-485 or ControlNet.

Enlarged system diagram

×

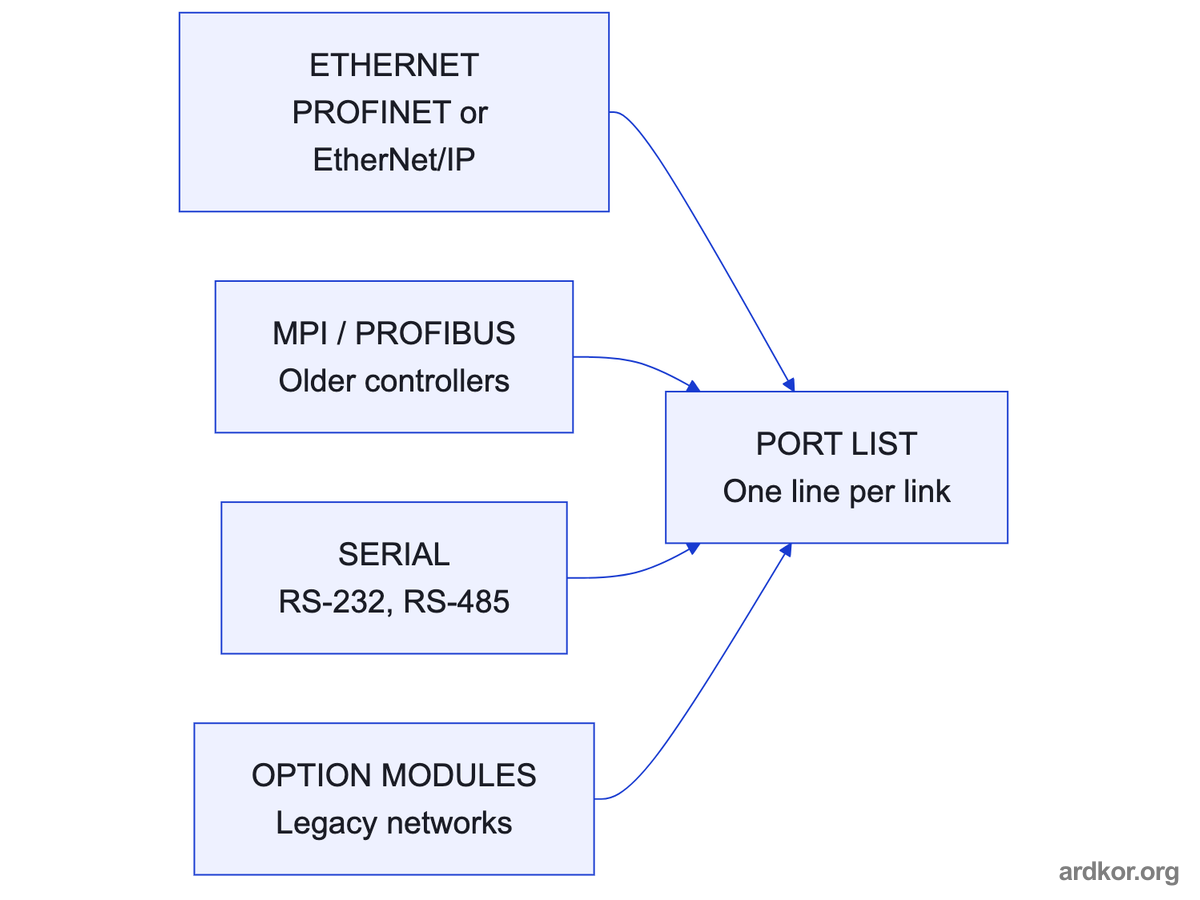

Parallel branches show the port types to walk through at the panel. Presence of a port does not confirm which protocol runs on it.

Serial links still exist in the field, and they are easy to miss because they look like leftovers. Magelis and Weintek terminals in older lines often talk RS-232 or RS-485 to a PLC or a drive, and a serial port can be the only path to a controller that predates Ethernet. Record the connector type, the wiring standard, and the protocol running on it. RS-485 wiring alone does not tell you whether the traffic is Modbus, a proprietary protocol, or something else.

Note port counts and what shares them. A panel with one Ethernet port that also serves engineering access competes with the runtime traffic, and some installations split this with a switch. Port labels wear off, so the rear photo is often the only port record anyone has. Write the count down even when it seems obvious, because a two port panel and a one port panel lead to different replacement shortlists.

Service and wireless access belong in the list too. Some cabinets reach the panel through a maintenance laptop on the same Ethernet switch, and some plants mirror the screen to operator tablets over a wireless access point. Record any such access, because it affects how a replacement can be commissioned without interrupting the controller.

The controller protocol, not the cable, is the compatibility boundary. An Ethernet cable plugged into a switch does not make a PROFINET panel and an EtherNet/IP controller compatible, and no screen size fixes that. Record the controller family and the protocol it expects, for example an S7-1200 on PROFINET or a ControlLogix on EtherNet/IP, together with the panel reference.

Enlarged system diagram

×

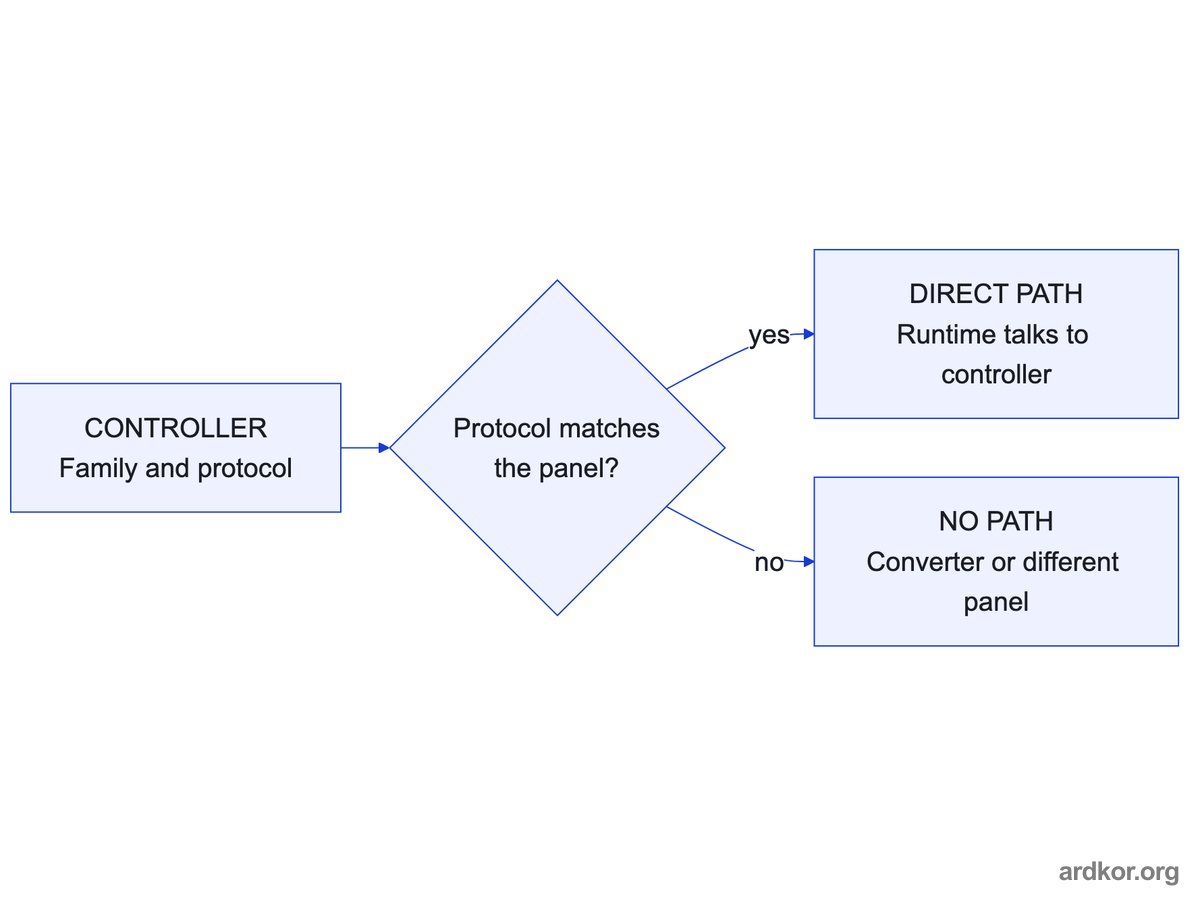

The decision diamond is a documentation check, not an electrical test. A mismatch means engineering work, not a wiring fix.

Do this while you stand at the cabinet, not later from memory. Write the protocol name next to the cable number, and note the controller type from its own label if the program is not at hand. Ten seconds there saves a full round of questions later, because the controller side is the half a panel photo can never show.

A concrete example shows why this matters. Two panels in one plant may look the same and share a switch, while one talks to an S7 controller over PROFINET and the other to a Logix controller over EtherNet/IP. A spare that suits the first machine fails on the second without any visible difference at the cabinet. The protocol record is the only thing that separates them.

The limit: the controller family and protocol narrow which panels fit, but they do not confirm that any specific replacement works. Project support, driver availability, and version compatibility need the engineering tool documentation, which the replacement review checks separately.

A converter sits between a panel and a controller that do not share a protocol. A serial to Ethernet gateway or a protocol bridge can connect a modern panel to an older controller, and that is often the cheapest way to keep an aging line running. The converter translates in both directions, so the panel sees data it understands and the controller keeps its own language.

Enlarged system diagram

×

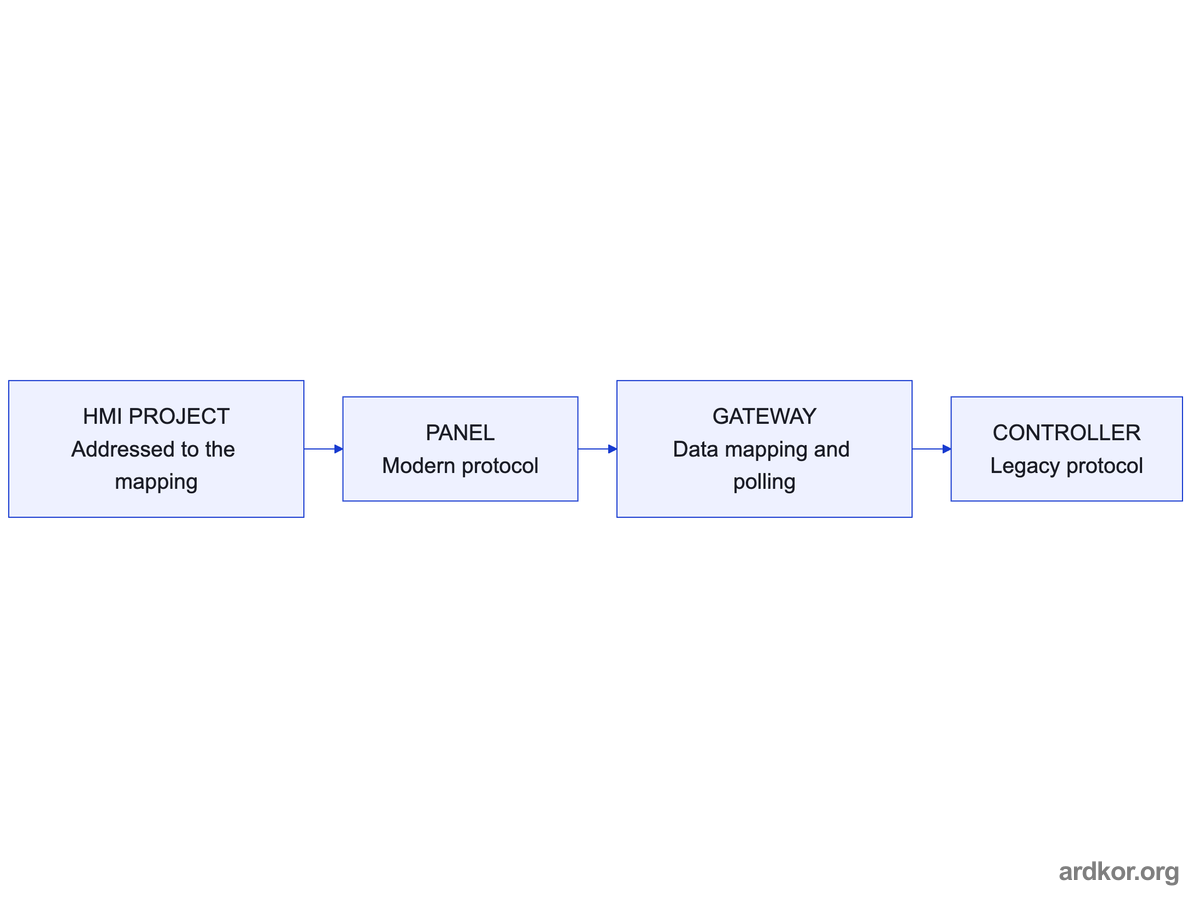

The gateway is the middle stage where mapping and cycle time changes appear. Arrows show data flow, not wiring.

The translation has a cost that lives in the project. The HMI project must address the gateway's data mapping, meaning the tag list the panel reads is not the controller's own tag list anymore. Cycle behavior can change as well, because the gateway polls, buffers, and retransmits. Values that updated in ten milliseconds may update in a hundred. Whether that matters depends on what the screen shows.

If your recovery plan involves a converter, record the intended pair of protocols and the converter model number, so the engineering effort gets estimated on real facts. A converter reference without the protocol pair helps nobody, because the same gateway model can carry different mapping firmware.

Keep one limit in view. A recorded converter plan shows the work exists, it does not size it. Mapping effort, license needs, and cycle time results are engineering estimates, and they belong to whoever checks the project, not to the port list.

The port evidence has a physical half and a paper half, and the physical half starts with one photo. Photograph the connector side of the panel and the cable routing before you unplug anything. Port labels wear off, and that photo is often the only port record anyone has. Zoom until the molded connector types stay readable.

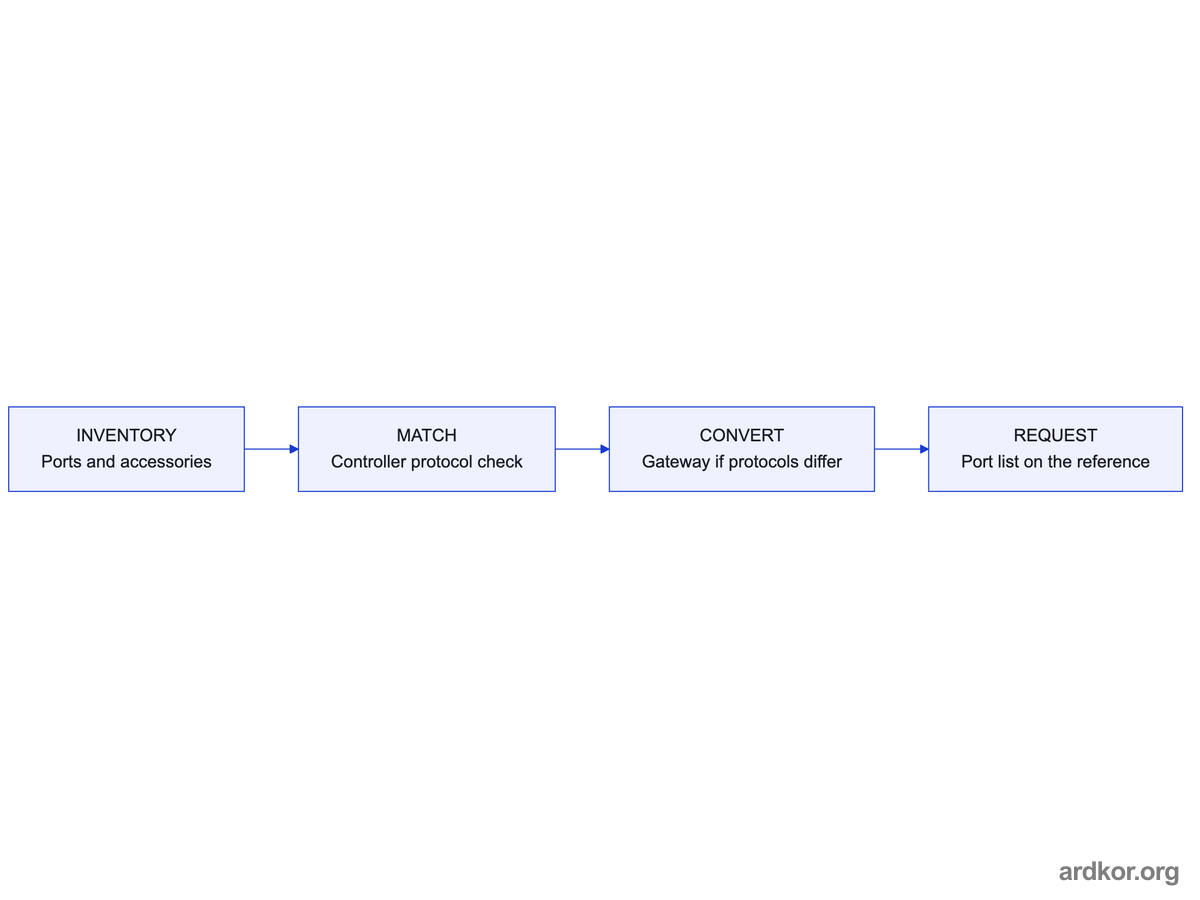

Enlarged system diagram

×

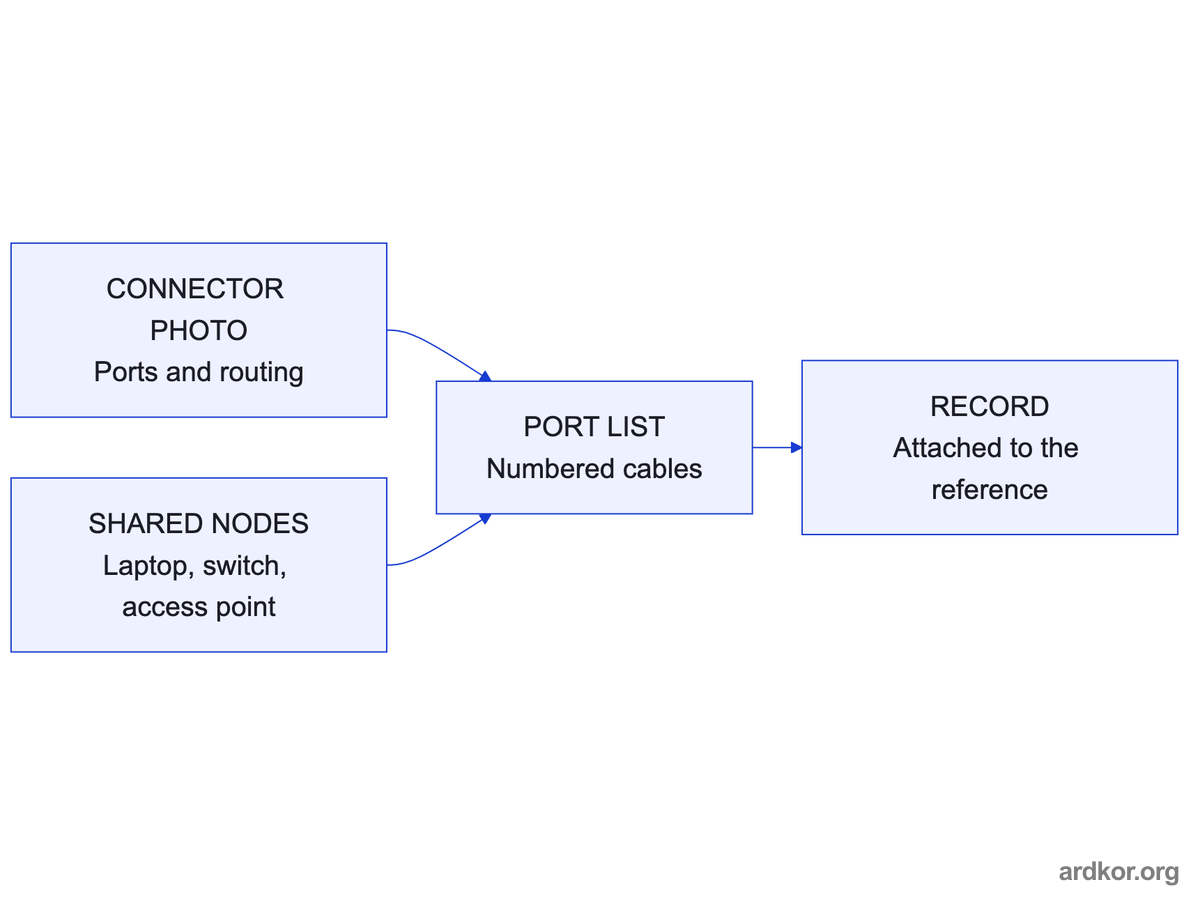

Both branches feed one record. The photo proves layout, the list adds names and protocols the photo cannot show.

Then trace and label the cables. Where a cable disappears into a duct, follow both ends before you disconnect it, and mark each cable with a number. A labeled photo turns into a port list; an unlabeled photo turns into a puzzle. Which of the two you deliver decides how much of the review is guesswork.

Record what shares the network as well. A maintenance laptop, a printer, a second panel, or a wireless access point on the same switch all change how a replacement can be commissioned. Note the switch if the installation has one, since a managed switch with spare ports is a different situation from a direct cable to the controller.

The photo and the list together still have a boundary. They describe today's wiring, and they cannot reveal whether the current installation follows the manufacturer's recommendations. Check that against the manual for the exact reference before anyone copies the installation onto a replacement.

Attach the port list to the exact panel reference, in the same sentence if possible. The combination of 6AV2124-0XC02-0AX1 with its PROFINET and MPI or DP connections describes a serviceable problem. Either half alone forces the reviewer to guess or ask. The same holds for a 2711P reference and its EtherNet/IP plus any serial or option module connections.

Enlarged system diagram

×

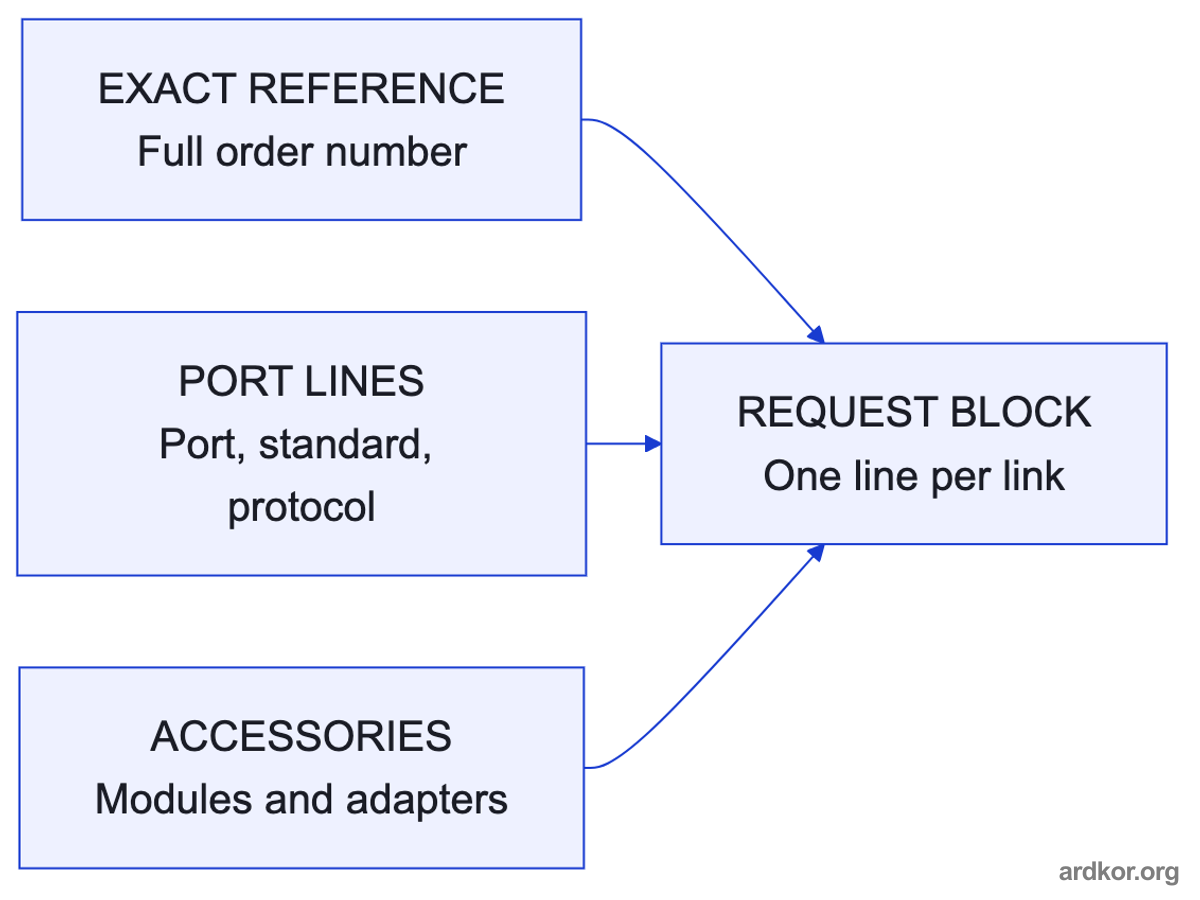

Three inputs form the finished communication block. It narrows candidates, it does not confirm availability or price.

Record accessories as part of the communication story. Option modules, gateway devices, cable part numbers, and connector adapters all belong in the request, because they are sometimes the scarce part rather than the panel. A missing option module can block an otherwise simple panel swap. Half a gateway reference helps nobody.

Structure the block so it survives copy and paste. One line per link, each with the port, the wiring standard, the protocol, and the far end. Then one line per accessory with its full reference. A reviewer who reads that block can rule candidates in or out in a single pass, which is the entire purpose of the exercise.

The port evidence narrows the candidate list but does not complete it. It shows which controllers a panel can serve and what engineering work a change implies. Stock, price, and availability stay open until a provider checks current sources. Keep those questions explicit in the request, and the answers come back faster.

• List every port and protocol, including serial links and option modules.
• Record the controller family and protocol. The cable is not the compatibility boundary.
• Treat converters as project work, with mapping and cycle time consequences.
• Attach the port list to the exact reference and name the accessories.
