HMI replacement constraints beyond screen size

You found a replacement with the same screen size. Before you order it, know that the diagonal is the easiest part to match and the least reliable. Two panels with identical 10 inch displays can differ in opening, depth, supply, ports, and the project they accept. The diagonal is a hint for searching, not a specification for buying.

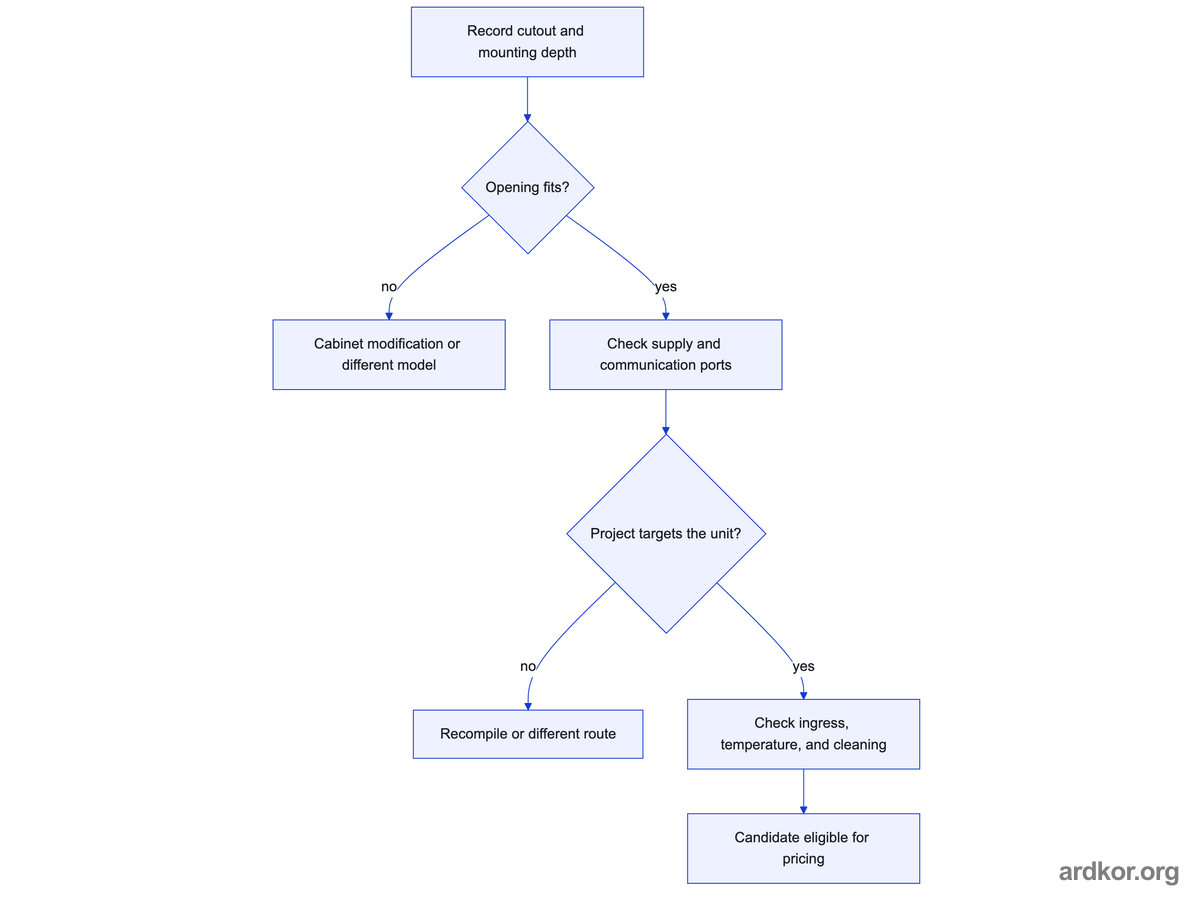

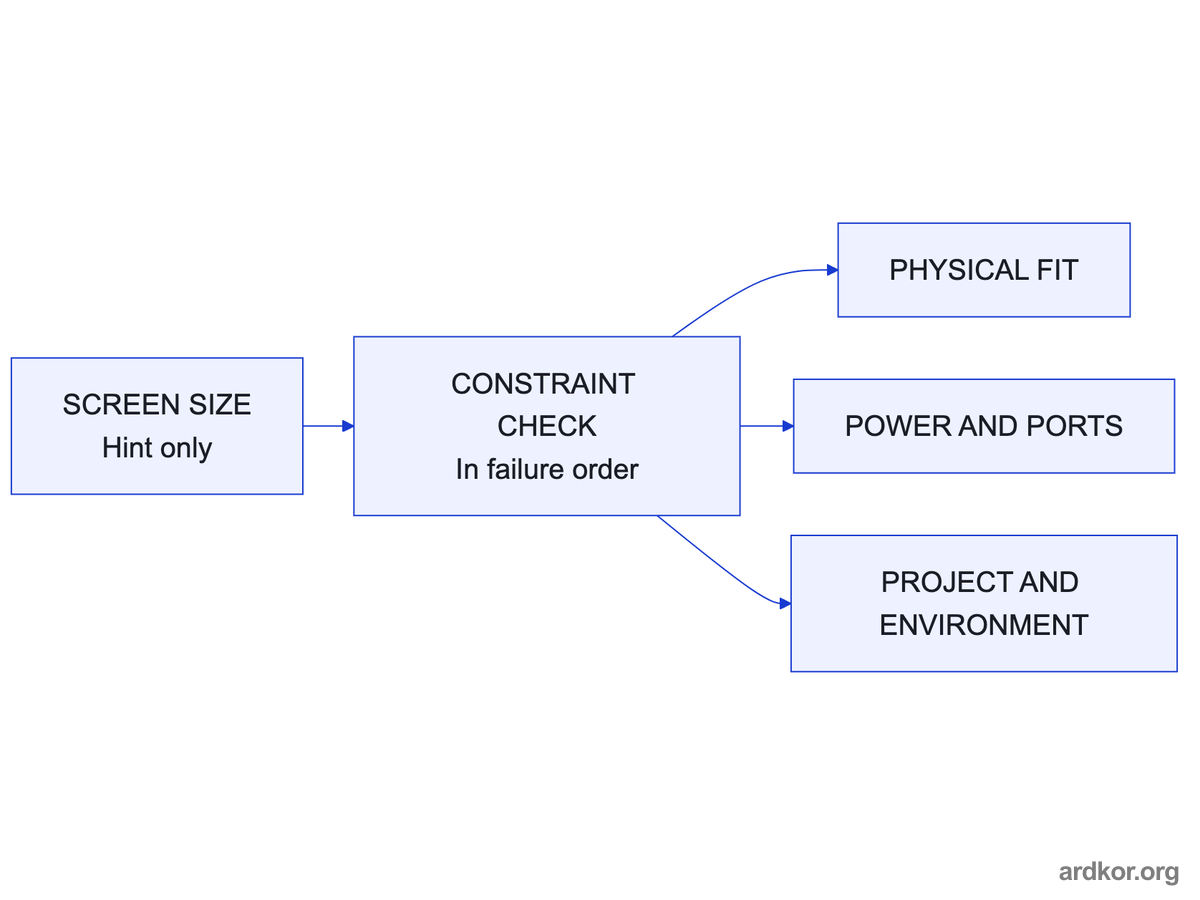

Enlarged system diagram

×

The diagonal starts the search, the branches decide the purchase. Any failed branch redirects the route.

The reason is structural. Manufacturers design the family around their own mounting system, their own power budget, and their own communication set. The screen is the visible part of a package that was never meant to be interchangeable across families. Every constraint in this guide exists because one of those invisible parts differs.

A quick example shows the trap. A 10 inch Basic Panel and a 10 inch Comfort Panel occupy different openings, and even within one family a size change usually moves the cutout. Record the diagonal anyway, since it helps a reviewer suggest candidates. Just let the measured opening be the value that decides.

This guide walks the constraints in the order they usually fail: physical fit first, then power, communication, project, and environment. Work them in order and the first failure ends the comparison early, which is exactly what makes the process fast.

The cutout is the first hard constraint. A replacement has to fit the existing opening in the cabinet door, and opening dimensions follow the panel family and size, not the screen diagonal. Measure the width, height, and panel thickness the door accepts before you look at any candidate, and write the numbers down rather than trusting memory.

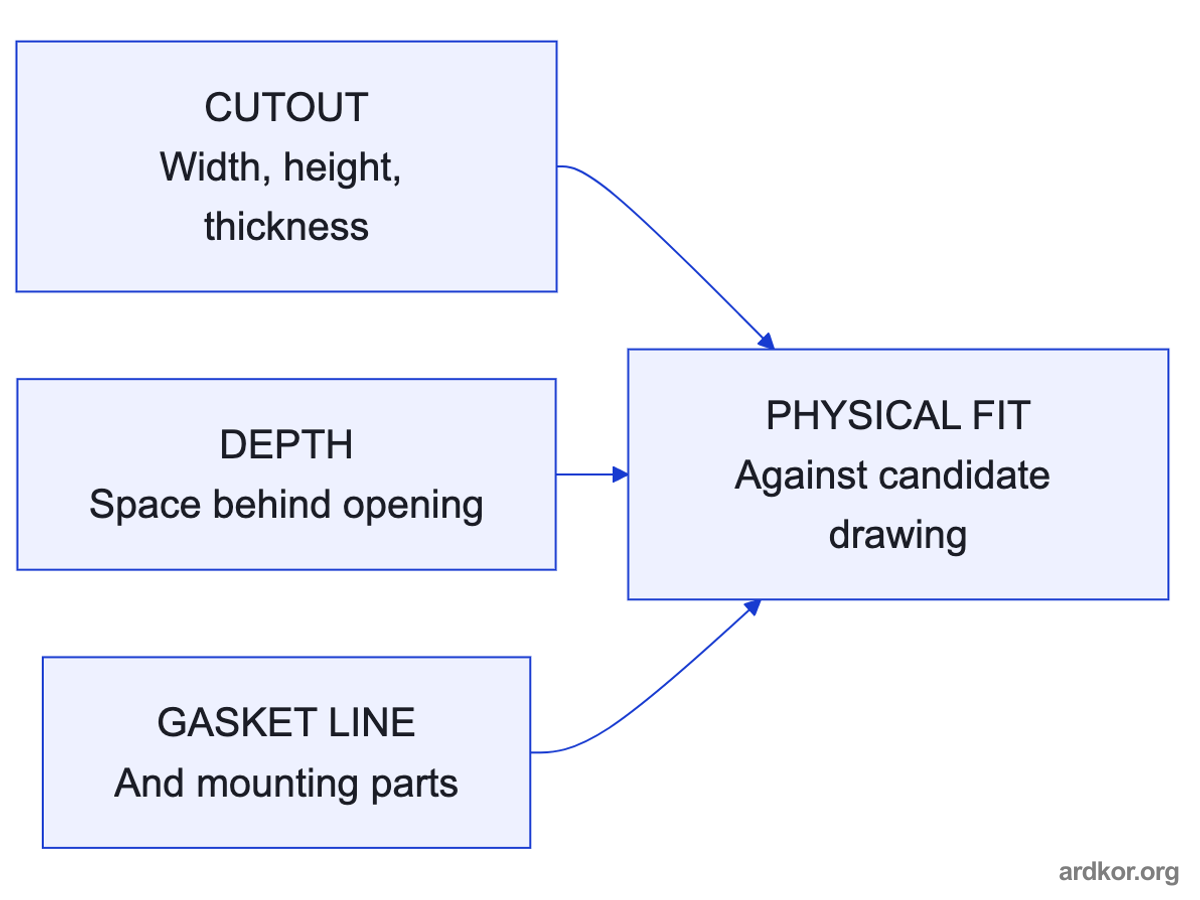

Enlarged system diagram

×

Three measurements feed the fit decision. The candidate drawing is the referee, not the screen diagonal.

Mounting depth is the constraint people miss. PanelView Plus 7 terminals and Comfort Panels differ in case depth, and a deeper replacement can foul the door reinforcement, cable ducts, or the swing of the door itself. Measure the space behind the opening and include the rear clearance the connector block needs, because that is where swaps stall.

The sealing frame is part of the physical match too. The old gasket often stays stuck to the door and shows you the exact sealing footprint, and a new panel must cover the same line or the opening needs machining. Note any mounting adapters, trim rings, or locking clips that came with the original, since they may not exist for the candidate unit.

One practical limit closes the physical check. Measurements and gasket photos describe the door, and only the manufacturer dimension drawing for a specific candidate confirms the fit. Publish the constraint in the request so the provider runs that check before shipping anything.

Check the power supply next. Most industrial HMIs run on 24 V DC, which sounds simple until you look at the current draw. It differs between families and sizes, and an undersized supply branch can trip or sag right at panel startup, when the display and the backlight both hit their peak load.

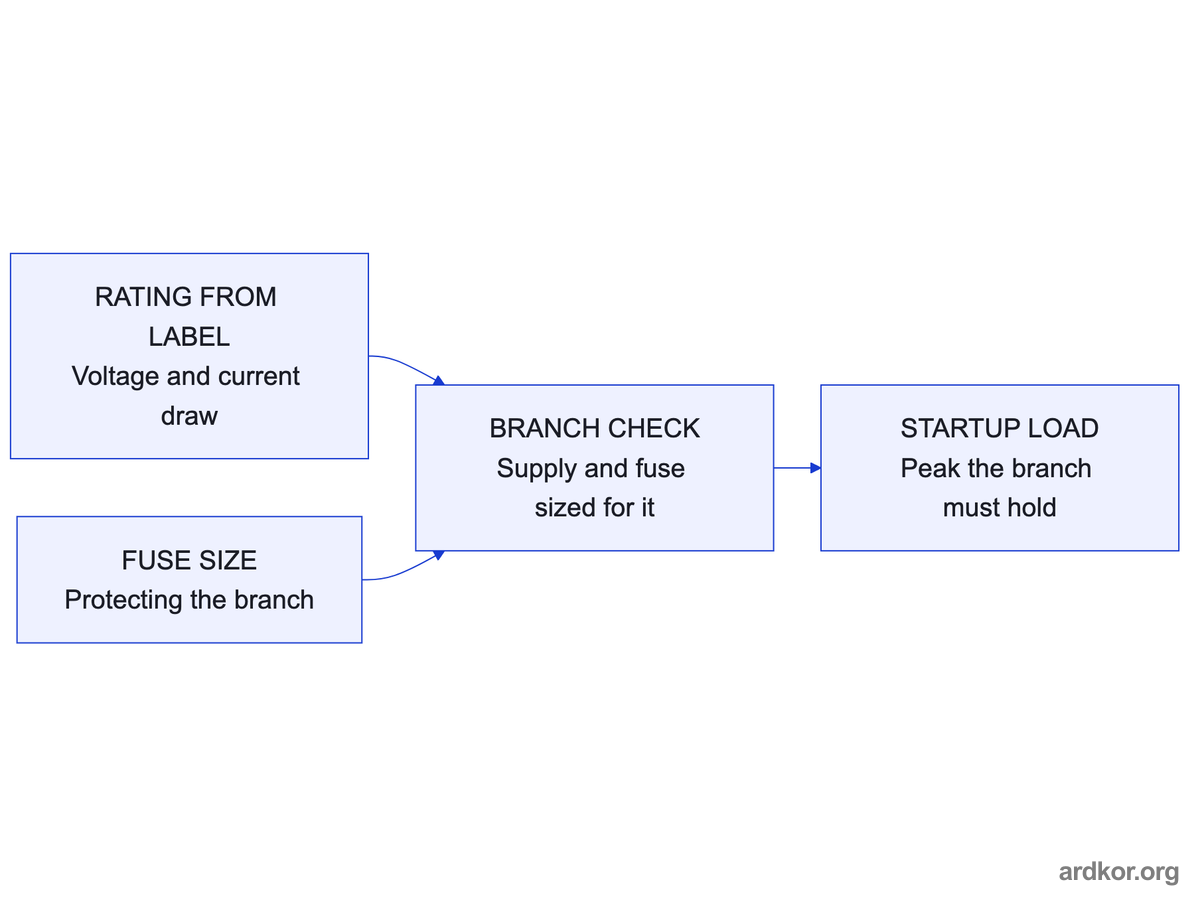

Enlarged system diagram

×

Two record values meet one physical event. A match on paper still needs the branch to hold at startup.

Record the printed supply rating from the rear label along with the fuse size protecting the branch. Both numbers travel together in the request, because a candidate that draws more current than the branch was fused for is not a drop in replacement, whatever its label says about accepting 24 V DC.

Look at the supply itself while you are there. An aged switched mode supply that has run hot for a decade may deliver less than its nameplate under load, and a panel that reboots at startup often traces back to that sag rather than to the panel. A measured supply voltage during startup is one of the cheapest useful numbers in the whole pack.

The limit: the rear label states what the panel accepts and draws, and it does not guarantee the branch behind it. Whether the cabinet supply and wiring can feed a candidate is a cabinet side check, and it belongs to whoever owns the electrical documentation.

Communication ports decide whether the panel fits at all, which is why they come before price. A Siemens Basic Panel speaks PROFINET, which is Siemens' industrial Ethernet protocol for talking to the PLC. Comfort Panels add an MPI and PROFIBUS port for older controllers. A PanelView Plus 7 speaks EtherNet/IP, and older PanelView models need option modules for legacy networks such as DH-485.

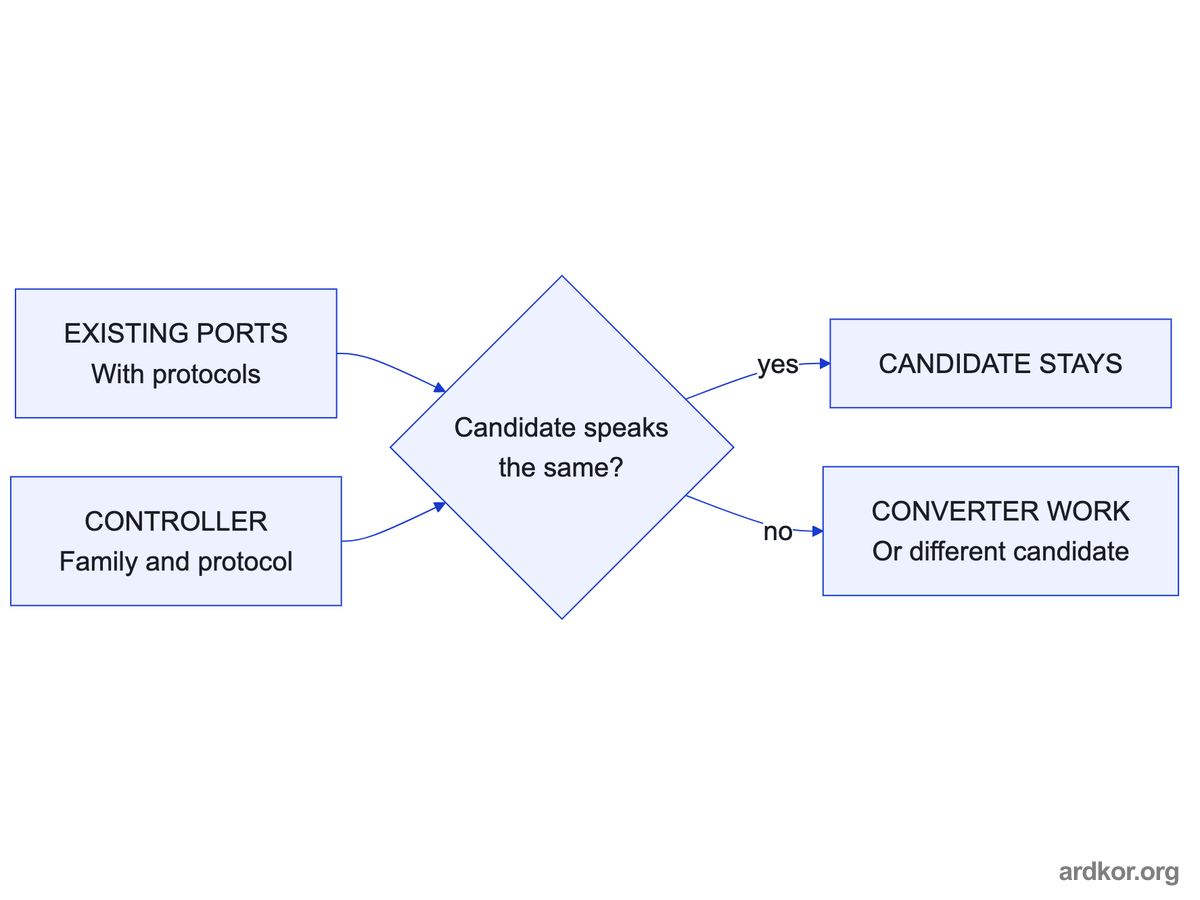

Enlarged system diagram

×

The match is a documentation check against the candidate datasheet. A miss becomes project work, not a wiring fix.

A replacement that lacks the port your controller expects is not a drop in replacement, whatever its screen shows. Record the protocol on each existing link instead of only the connector types, and note the controller family on the other end. The linked communication guide walks this inventory port by port if some links are still unclear.

Option modules deserve their own line in the record. They are sometimes the scarce part rather than the panel, and a candidate that needs a legacy option module can be blocked by one missing adapter rather than by the panel itself. Include cables and adapters in the constraint check, since a different connector family can add silent cost.

Keep the boundary in view: recorded ports show which candidates are possible, and the manufacturer documentation for each candidate confirms what it actually speaks. Protocol converters exist, but they move the work into the project, and that belongs to the next constraint.

The project file is the deepest constraint of the five. A WinCC or TIA Portal project is compiled for one specific panel type, and a FactoryTalk View application is built for the PanelView Plus line. A substitute unit only accepts your machine project if the engineering tool and the target both support it. This is where screen size mismatches become the smallest of the problems.

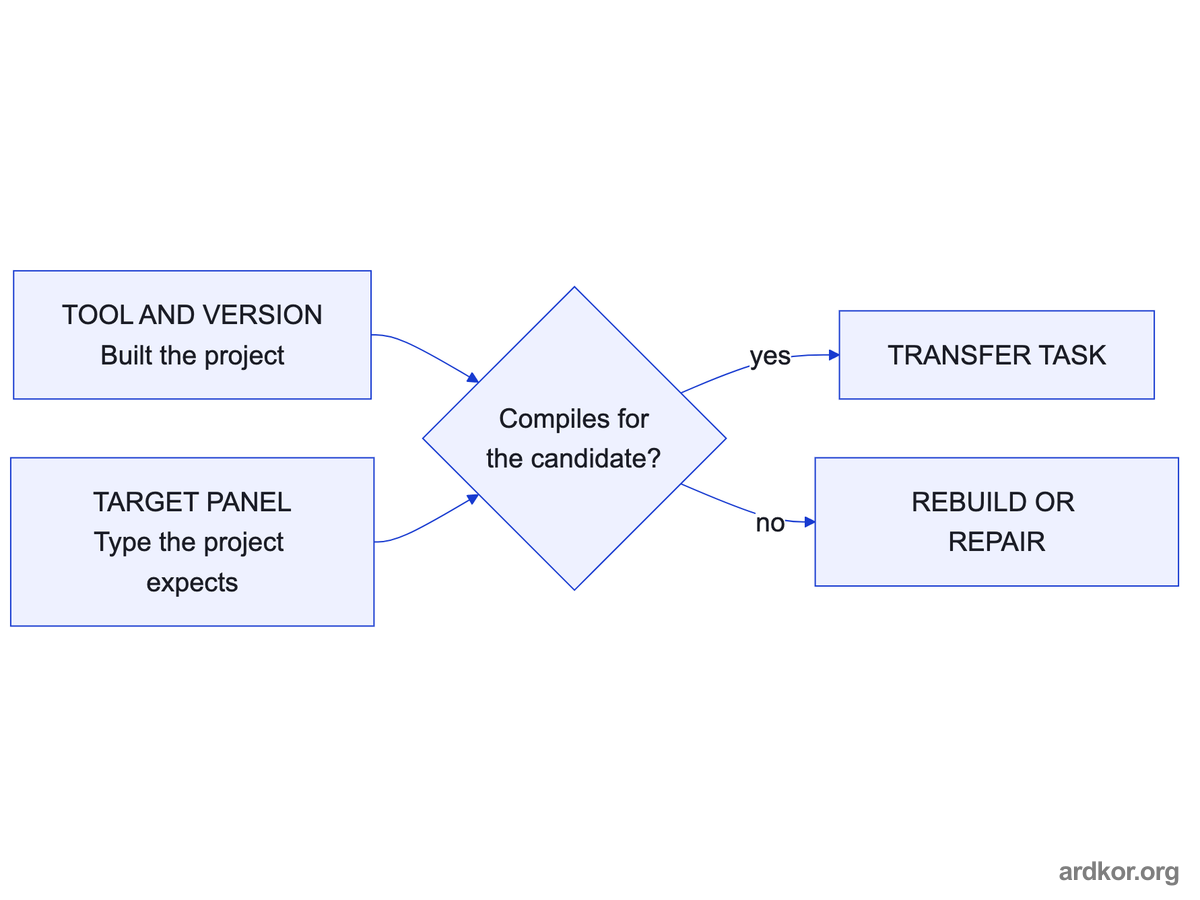

Enlarged system diagram

×

The compile check belongs to the engineering station. The record here only decides who can run it.

Record which tool built the project and whether a backup exists. That one answer can decide the whole recovery route, because a verified backup turns a replacement into a transfer task, while a missing backup turns it into a rebuild or a repair that preserves the panel storage. The linked backup guide covers the capture while the panel still runs.

The tool version matters as much as the tool name. A project saved by a much newer tool version may refuse to load on an older engineering station, and a license that expired with a departed colleague is a project constraint no datasheet mentions. Write down which computer currently opens the project and which version runs on it.

One limit frames this section honestly. Project compatibility is checked by compiling, not by comparing names. Everything recorded here gives the person doing that check a running start, and the check itself stays theirs.

Environment closes the constraint list, and then everything goes into one comparison. Front ratings have to match the installation as it really is: a panel rated IP65 or IP66 at the front keeps that rating only when its gasket sits compressed on a clean, flat surface, and the rating never applies to the rear. Cabinet temperature, direct sunlight, and cleaning agents narrow the list further.

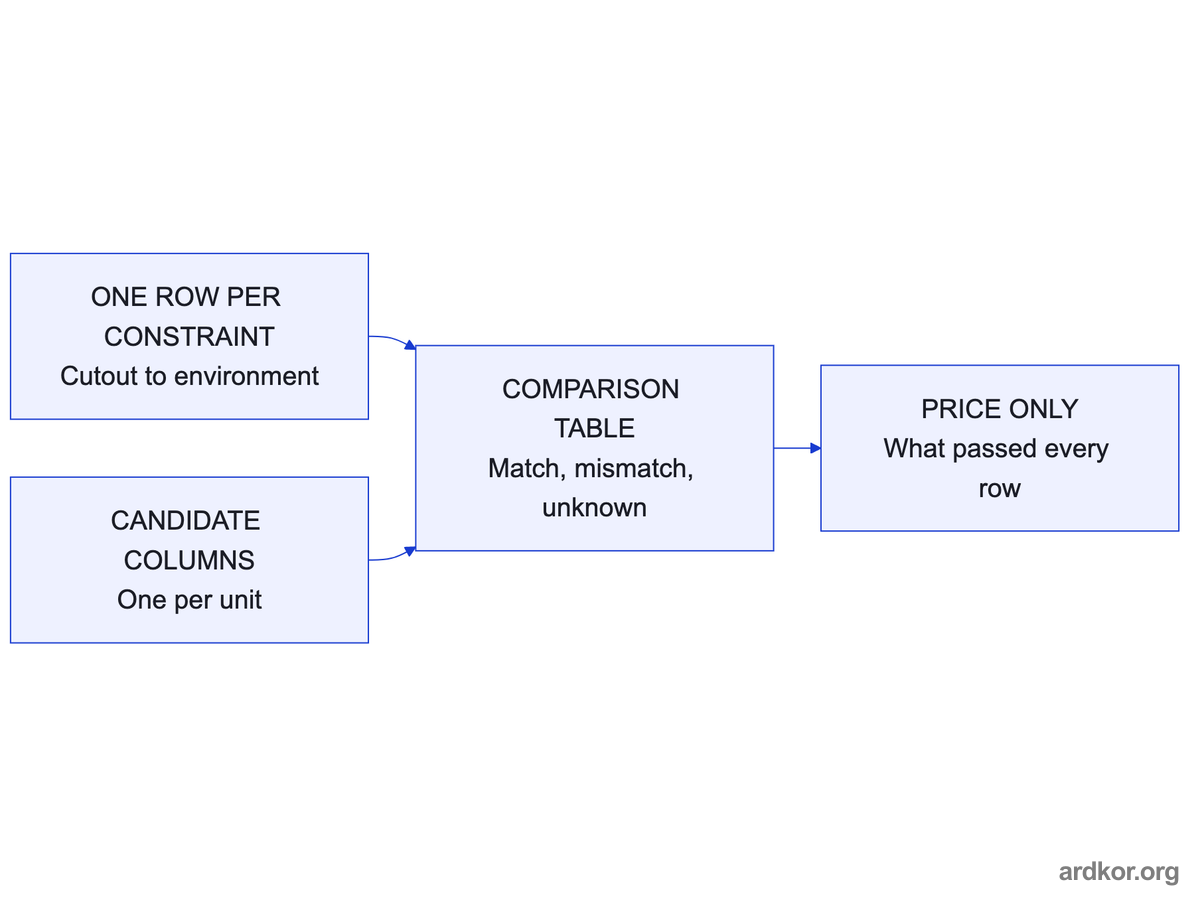

Enlarged system diagram

×

The table is the decision tool for this guide. Unknown cells are allowed, but they stay visible as unknowns.

Put every constraint in one table before anyone prices a candidate. One row per constraint: cutout, depth, supply, ports, project target, and environment. Each candidate gets a column, and each cell says match, mismatch, or unknown. The table keeps the review honest when several people look at it, because opinions have nowhere to hide.

When the cutout, depth, supply, ports, project target, and environment all line up, the unit is worth pricing. When one fails, say so in the request, because that failure moves the answer toward repair, a different model, or a cabinet modification. A single failed constraint is not a footnote, it is the headline of the comparison.

The closing limit is the same one this guide started with. A completed table bounds feasibility, and it does not confirm availability, price, or delivery. Those stay provider checks, and the table is what lets the provider run them on the first pass instead of the third question.

• Measure the cutout, thickness, and depth behind the opening before shortlisting anything.
• Check supply rating, ports, and whether the project file can target the replacement.
• Front IP ratings hold only with the gasket mounted right, and never cover the rear.
• One failed constraint changes the route. Record all of them in the request.
