HMI enclosure and environment checks

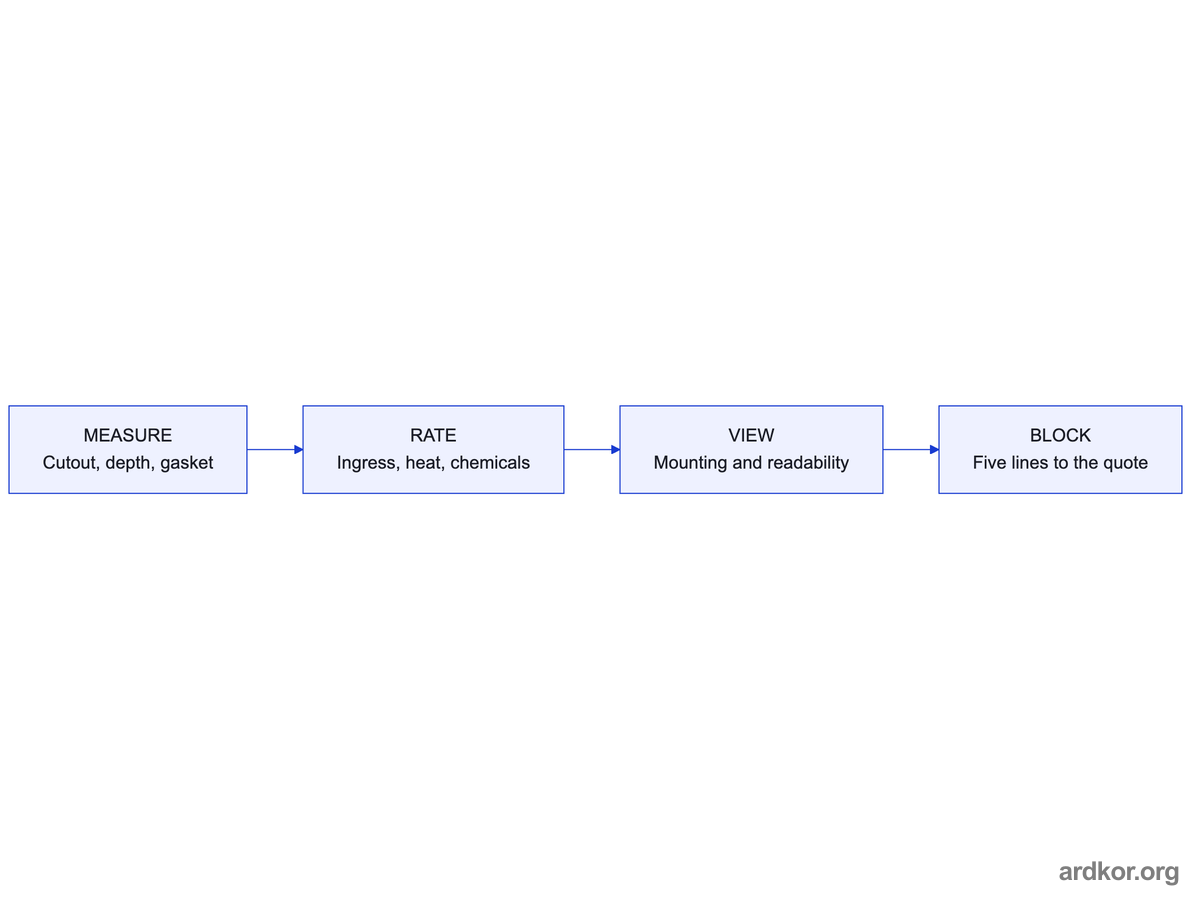

The cabinet door remembers every panel that was ever mounted in it, and the cutout is the record it keeps. A replacement cannot negotiate with an opening that was cut for another family, so the measurement comes before any candidate list. Measure the width and height of the opening, the panel thickness the door accepts, and the depth available behind it.

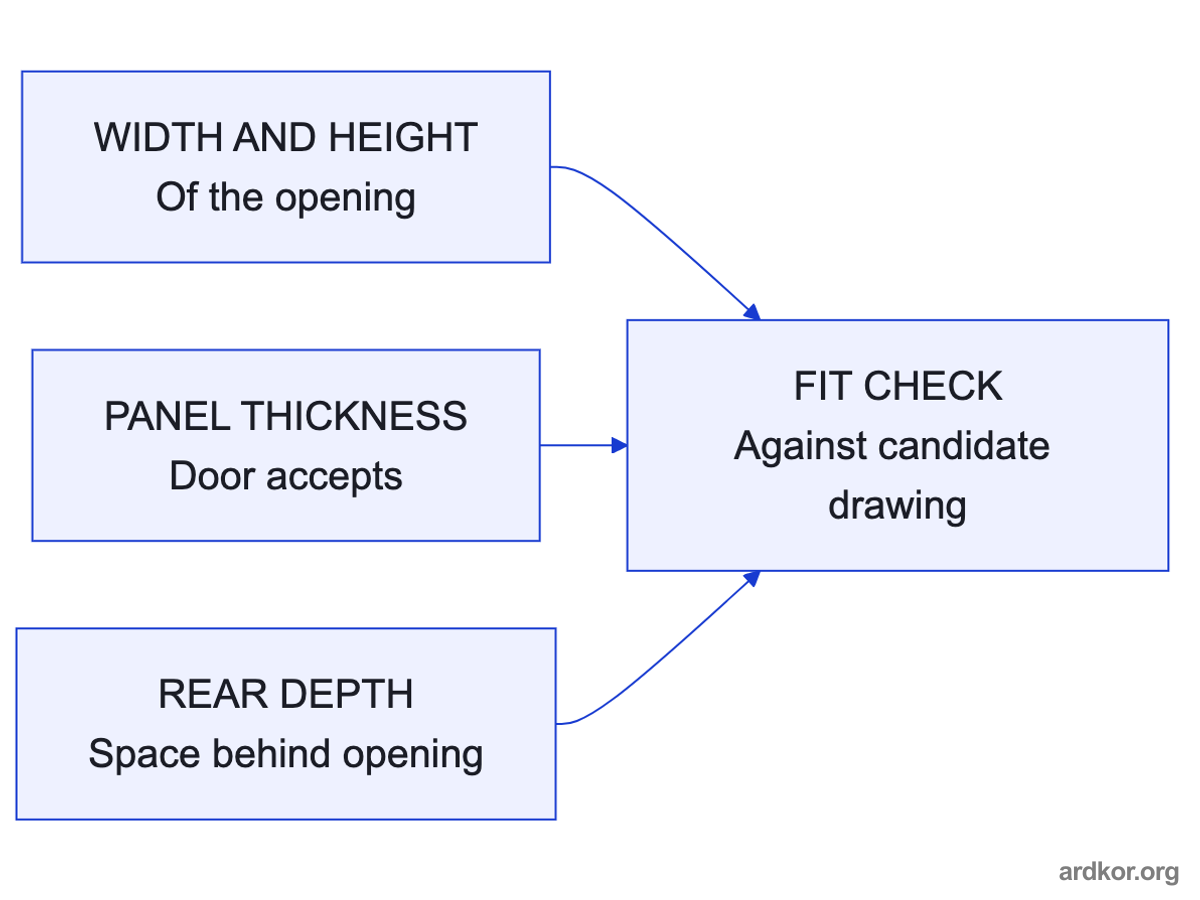

Enlarged system diagram

×

Three parallel measurements feed one fit decision. The check runs against a candidate drawing, not against a screen diagonal.

The depth is the constraint people miss until the swap stalls. A deeper replacement can foul the door reinforcement, cable ducts, or the swing of the door itself. Behind the opening, leave room for the connector block too, because that is where cables enter and where the deepest point usually sits.

A Comfort Panel and a PanelView Plus 7 of similar screen size do not share an opening. Opening dimensions follow the panel family and size, not the screen diagonal, so a 7 inch panel from one maker can need a different hole than a 7 inch panel from another. If a previous retrofit enlarged the opening, measure it again rather than trusting the original drawing.

The honest limit: measurements describe the opening, and only the manufacturer dimension drawing for a specific candidate confirms the fit. A candidate that needs machining turns a panel swap into sheet metal work, which is a different project with a different quote.

The old gasket stuck to the door is a drawing of the sealing history. It shows exactly where the previous panel sealed, and a replacement must cover the same line or the ingress protection of the whole door drops. Photograph the opening with the old panel removed, if it already is, and note any adapters or trim pieces that came with the original.

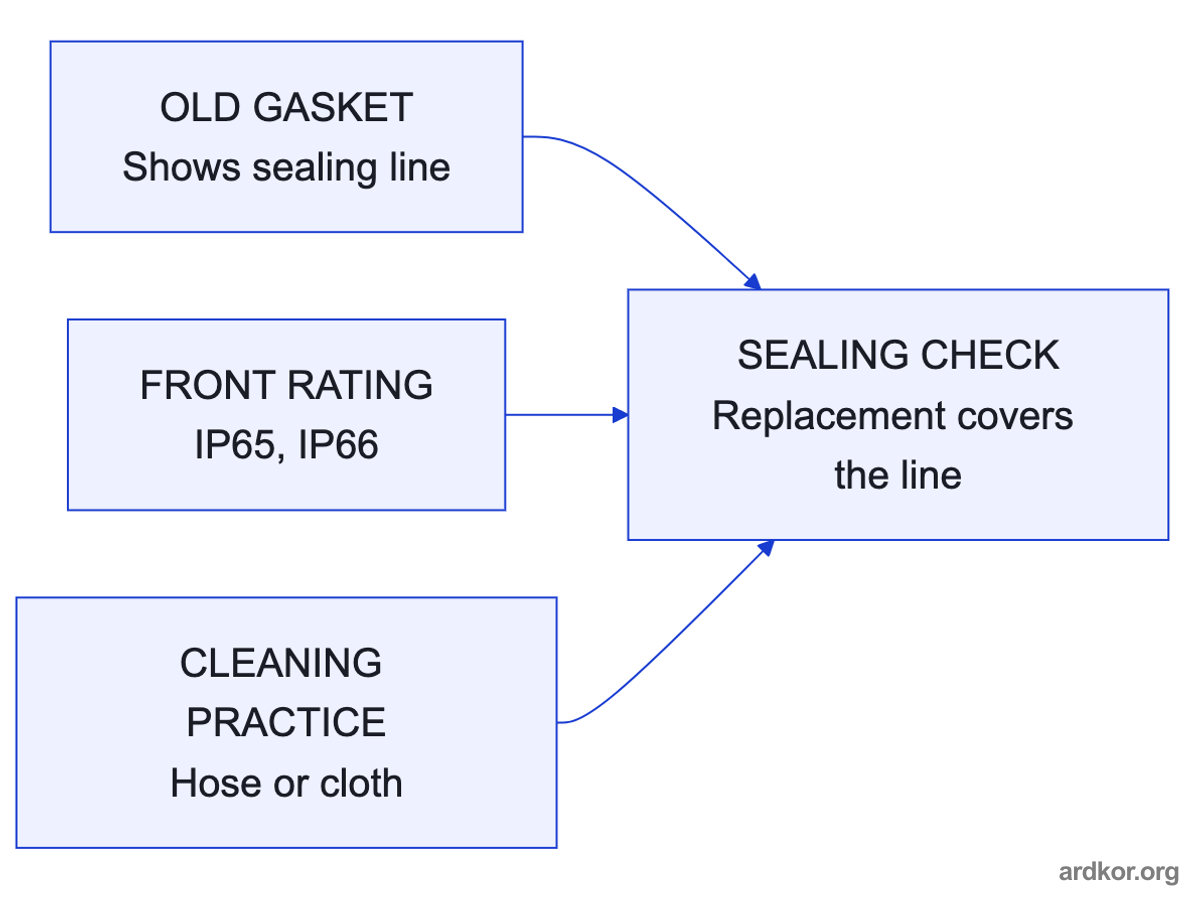

Enlarged system diagram

×

Three inputs decide whether the door keeps its protection. The rating alone proves nothing without correct mounting.

Front ingress ratings apply to the bezel side only, and only when mounted correctly. A panel rated IP65 or IP66 at the front keeps that rating with its gasket compressed on a clean, flat surface. The rear of the same unit is not rated for washdown and belongs inside a cabinet. That combination, rating plus mounting state, is what the replacement has to satisfy.

Check the door surface too. A gasket on a rough or textured surface seals less reliably than one on a painted flat plate, and a door that gets hose washed stresses the seal differently from one wiped with a cloth. Record how the door is actually cleaned, including anything the cleaning crew does that the procedure sheet does not mention.

One limit deserves its own sentence: ingress protection and chemical resistance are separate properties. A high IP rating does not imply resistance to a given cleaning agent, and a bezel that survives water can still cloud under solvent. Both need the manufacturer material data, not an inference from the IP number.

Temperature limits come from the label and the manual, but the number that matters is the worst case the panel sees. A cabinet next to an oven, in direct sun through a window, or behind a door that stays open in summer can beat the room rating even when the average looks safe. Record the hottest realistic condition and, where possible, a measured cabinet temperature.

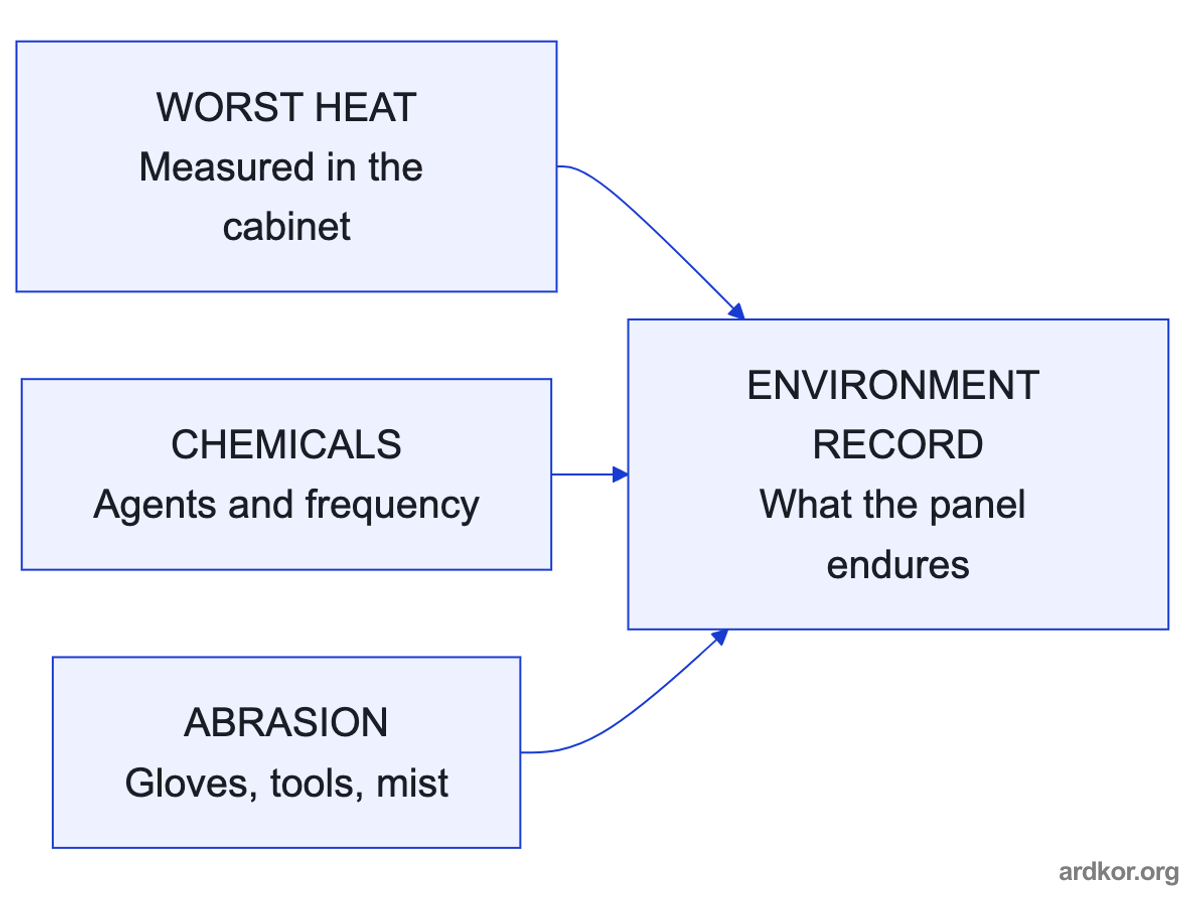

Enlarged system diagram

×

Three parallel observations describe the installed environment. They screen candidates, they do not certify survival.

Measuring is easier than it sounds. A thermometer held in the cabinet for ten minutes during the hot part of the day beats any estimate, and it catches the conditions the datasheet never sees. If the cabinet has a fan or a filter, record its condition too, because a blocked filter quietly changes the temperature the panel lives in.

Chemicals and abrasion shape the surface choice in a different way. Cleaning agents, cutting fluid mist, and operator gloves or tools in constant contact each stress the overlay differently. A panel specified for a clean control room fails early on a machine front. Record what touches the screen in normal operation and how often it gets cleaned.

The limit to carry forward: a recorded environment narrows the candidate list, it does not prove a candidate survives it. Chemical compatibility and the true ambient rating of a specific unit come from the manufacturer documentation for the exact reference, and they belong to the quote stage.

Record how the panel is mounted and how it can be serviced. A panel held by spring clips on a thin door behaves differently from one bolted through a reinforced plate, and the difference shows up in vibration behavior and in how the opening wears over the years. One photo of the mounting captures most of this.

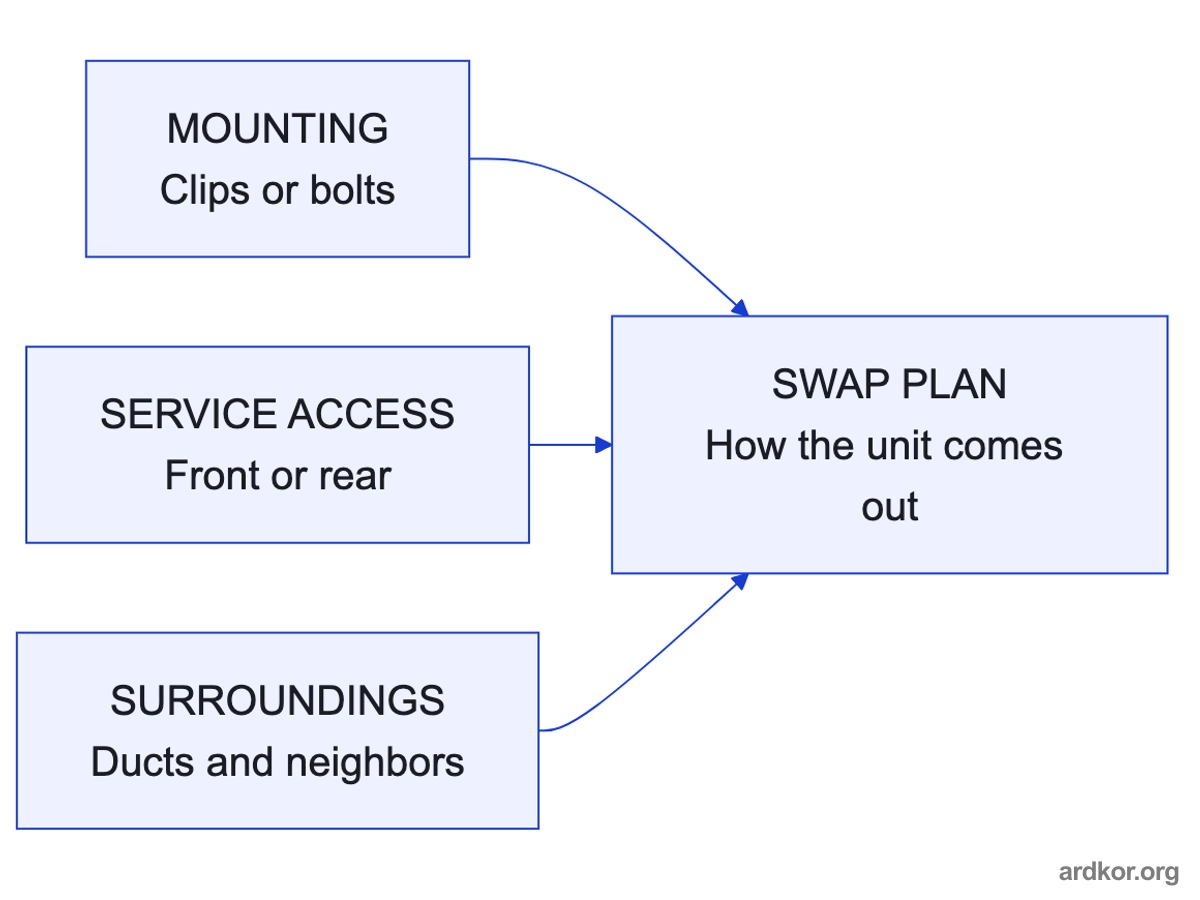

Enlarged system diagram

×

Three observations shape the removal plan. Arrows show how they combine, not how anything is wired.

The service path matters just as much. Some units need rear access to release connectors, while others release from the front. Note which access the machine allows, because it decides how the swap can happen during a stop. A swap that needs rear access on a machine bolted to a wall becomes a rigging job, not a panel change.

Include the surrounding constraints in the same note. Cable ducts, a hinged subplate, or a second panel mounted back to back all change what fits and what a technician can reach. The reviewer sees none of this from the cutout numbers, so two sentences here prevent an unrealistic plan.

A limit applies: access notes describe the machine as it is, and they cannot make an incompatible candidate work. If the only fitting unit needs a service path the machine does not offer, that failure belongs in the request rather than being discovered on the install day.

Record the viewing position as well, because a screen is only useful if the operator can read it. A panel mounted through a sloped console or on an arm is read from angles a flat door never sees, and glare changes with the mounting height and nearby lighting. The replacement inherits all of that, whatever its datasheet says.

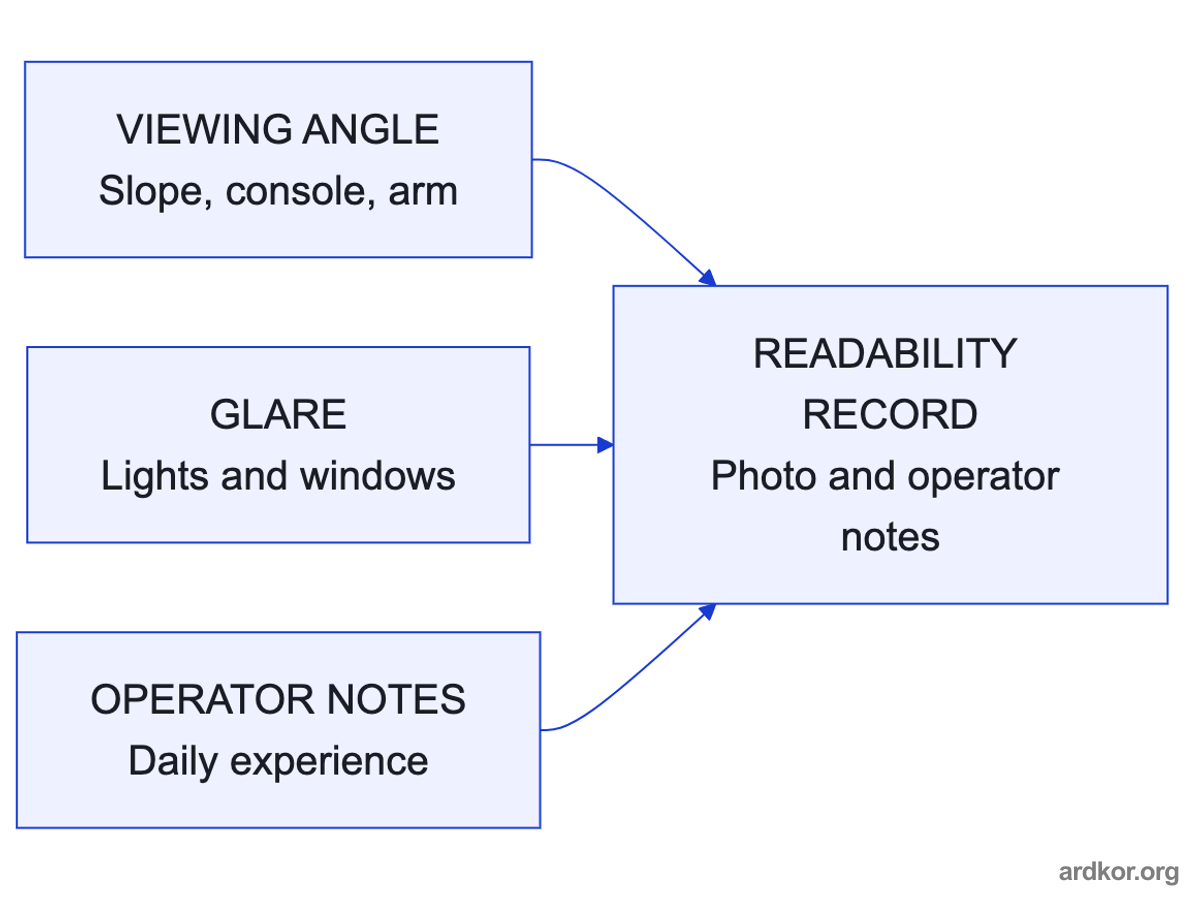

Enlarged system diagram

×

The branches describe how the screen is read in practice. They set conditions for the quote, they do not grade candidates.

A photo taken from the operator's normal standing point captures this better than any written note. Take it during a shift, with the machine lights on as they usually run. The photo shows both the angle and the reflections the operator actually fights, and reviewers read it in seconds.

Ask the operators while you are there. They know which screen washes out at two in the afternoon and which corner is unreadable with the glove on. That knowledge lives nowhere else, and it takes one conversation to collect. Write it next to the photo while it is fresh.

The limit is fairness to the candidates: a recorded glare problem does not disqualify a replacement, and it does not prove the old panel was wrong. It sets a condition the quote has to discuss, for example a different surface treatment or a mounting change, and naming the condition keeps that discussion factual.

Turn the observations into a short condition block attached to the reference. Cutout dimensions, depth, front rating, worst case temperature, and cleaning exposure form five lines. Those five lines let a provider judge any candidate against the real installation instead of the datasheet, and they fit in any email.

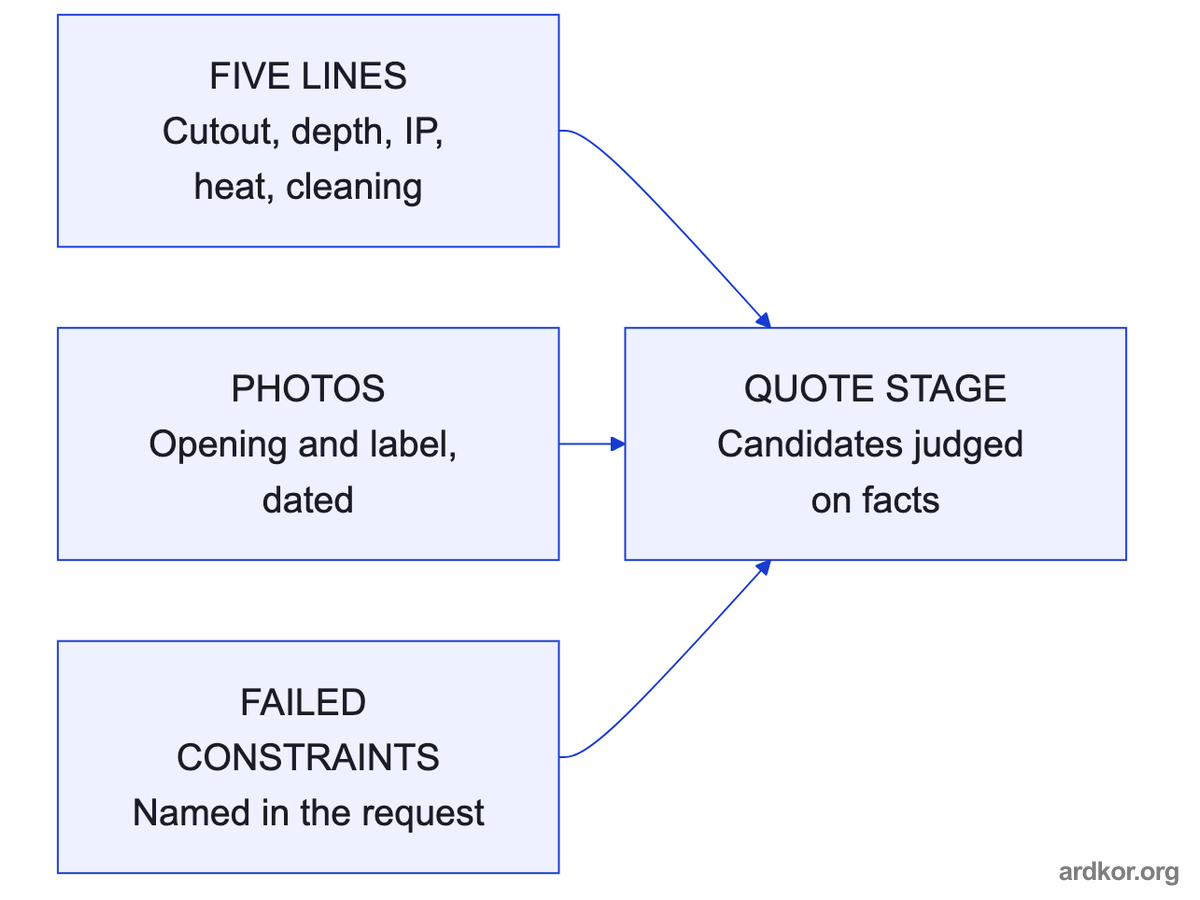

Enlarged system diagram

×

Everything measured earlier compresses into this closing block. It bounds feasibility, it does not fix price or availability.

Attach the opening photo and the label photo next to the block, and date them. Use the block to compare candidates explicitly: when a proposed replacement matches the cutout and depth but drops the front rating, say so in the request. That mismatch either rules the unit out or forces a door redesign, and naming the failed constraint keeps the discussion on facts.

The block also makes the review comparable across people. A simple table with one row per constraint keeps the review honest when several people look at it, because each candidate faces the same five questions in the same order. Opinions about brands stay out of the table.

One closing limit: the condition block bounds feasibility, not the outcome. It shows which replacements physically and environmentally fit. Price, availability, and long term durability of a specific unit remain provider checks. Keep those limits visible in the request instead of resolving them by assumption.

• Measure cutout, thickness, and rear depth, then photograph the opening and gasket line.
• Front IP ratings hold only with correct gasket mounting and never cover the rear.
• Record the worst temperature and cleaning conditions the panel actually sees.
• Attach a five line condition block so candidates are judged against the real installation.
