How to identify an industrial HMI

You are standing in front of a panel and someone asks which one it is. The bezel says SIMATIC HMI, or Magelis on a Schneider HMIGTO5310. That is a brand name, not a reference. It narrows things to a family, but one family covers many screen sizes, port sets, and hardware generations. The answer you actually need is on the back of the unit.

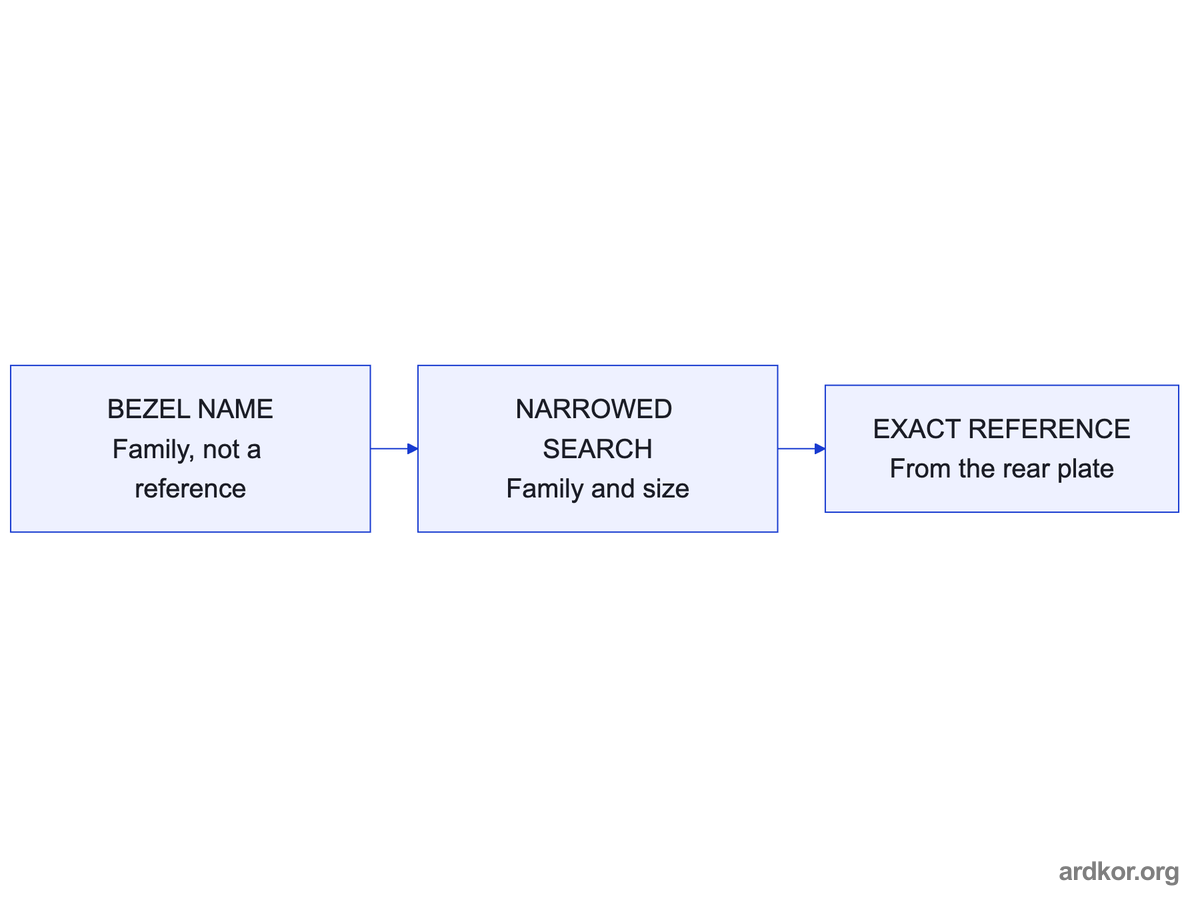

Enlarged system diagram

×

Read left to right as two steps of one lookup. The bezel starts the search, the rear plate ends it.

The reason is simple economics of manufacturing. One bezel design serves an entire product line, and the differences that matter for service, which ports, which power input, which hardware revision, sit behind the same front. The bezel tells you where to start looking, and the rear plate tells you what you found.

There is a scene worth naming. Two technicians order a spare for a KTP700 because that is what the bezel says, and the spare arrives with different ports than the machine needs. Nobody lied, and the order still fails. The gap between family name and order number is where that failure lives.

Keep one boundary in mind from the start. Nothing on the front of a panel is wrong or useless, and the bezel name stays useful for narrowing documentation and searches. It just never becomes the reference that decides hardware, because it was never meant to.

Flip the panel or open the cabinet door and find the rear plate. On a Siemens Comfort Panel, that label prints the full order number, something like 6AV2124-0XC02-0AX1. The label also carries the supply data and often the certification marks, which is why it is the single most useful photo you can take of any panel.

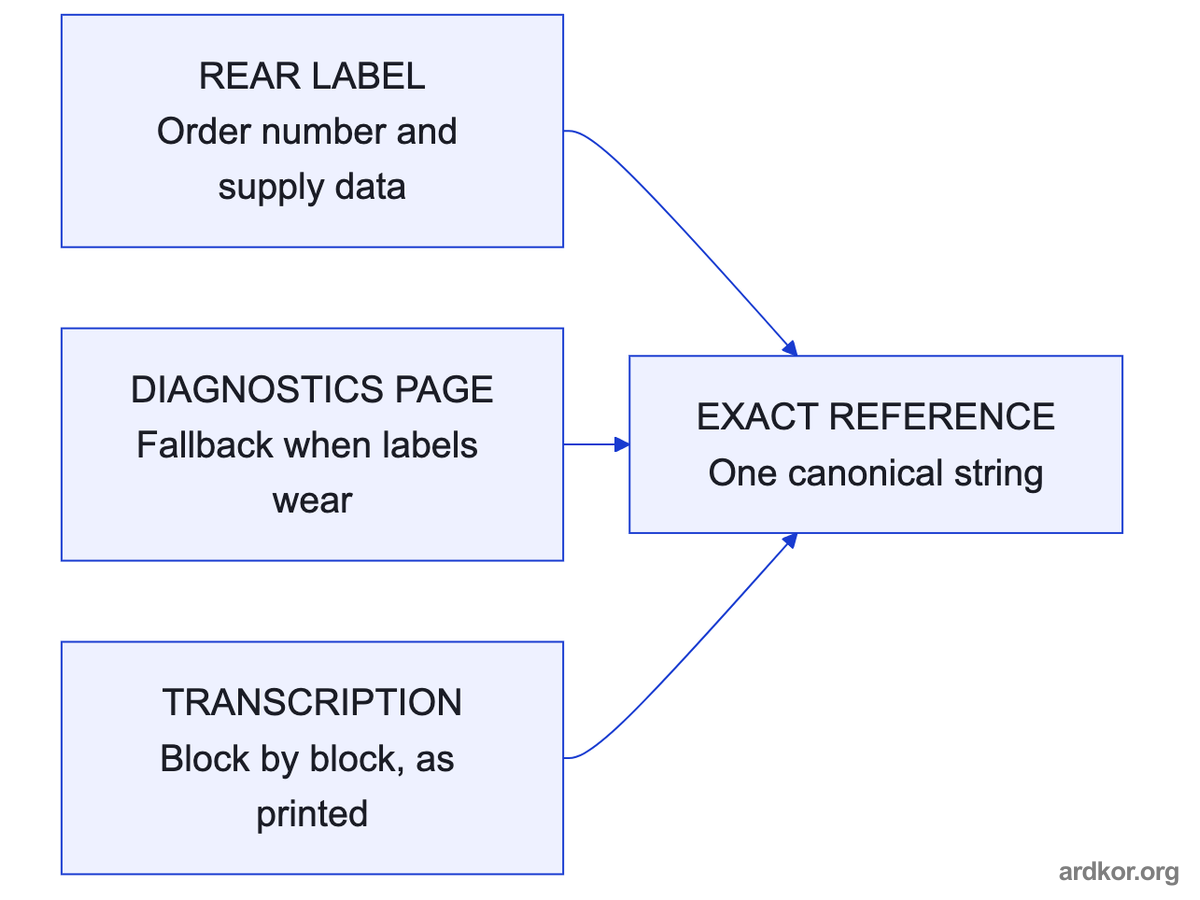

Enlarged system diagram

×

Two physical sources and one transcription rule produce the canonical string. Neither source proves function or price.

The rear label is not the only source, and that matters when labels wear out. Open the panel diagnostics or info page, and most HMIs print their exact order number and firmware version on screen. A photo of that page works as a fallback identity proof, and it works from the front of the cabinet with no disassembly at all.

Transcribe the string exactly as printed, block by block, before any lookup or normalization. Leading zeros, hyphens, and trailing digit pairs are all part of the reference. Write the digits as printed, including the blocks that look redundant, because the blocks that look redundant are usually the ones that separate two products.

A limit applies to every source in this section. Both the label and the diagnostics page identify the unit. Neither shows whether the panel works, what it costs today, or whether a spare accepts your project. Those are different checks with different documents, and the reference you capture here is the key that indexes them.

A Siemens order number reads as blocks, and each block answers one question. Take 6AV2124-0XC02-0AX1: the 6AV2 prefix marks the SIMATIC HMI family, the next digits pick the series and the size class, the middle block fixes the interfaces and power options, and the trailing digit pair tracks the hardware version. Panels that share a size can still differ in that trailing block, and the difference changes firmware behavior and service parts.

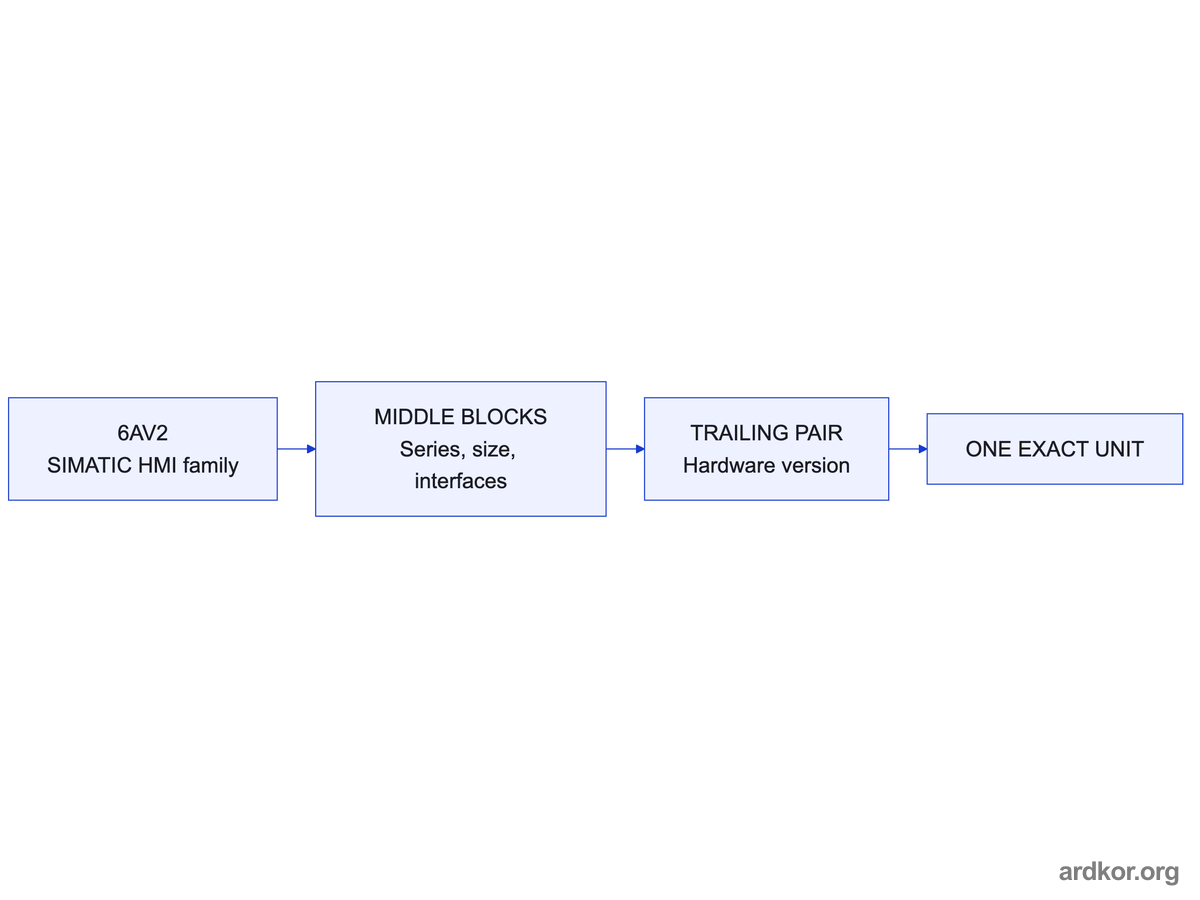

Enlarged system diagram

×

Each stage narrows the string until one unit remains. Every dropped block reopens the ambiguity.

The block structure is why partial strings fail quietly. A search for 6AV2123 matches several variants with different screens and interfaces, because the prefix only names the family. The string 6AV2123-2JB03-0AX0 names one exact unit, with its option space and its hardware generation, and that is the level a spare order or a firmware question needs.

Practice the read on a real label. Cover the trailing pair and ask which two products could share the remaining string. Usually there are several, separated by exactly the block you covered. This habit takes a minute and it teaches why the full transcription rule exists better than any explanation.

The limit for this section: the block meanings described here are the general structure, and the exact meaning of each position is defined by Siemens documentation for the series. Use the blocks to capture and compare, and use the manufacturer documentation to interpret before you order anything.

Allen-Bradley PanelView Plus 7 terminals split their reference the same way, just with different fields. In 2711P-T10C22D8S, the 2711P prefix ties the unit to the PanelView Plus catalog. T10 means a touch interface in the 10 inch size class. C22 carries the power supply and communication options, and the trailing block separates hardware and option packages.

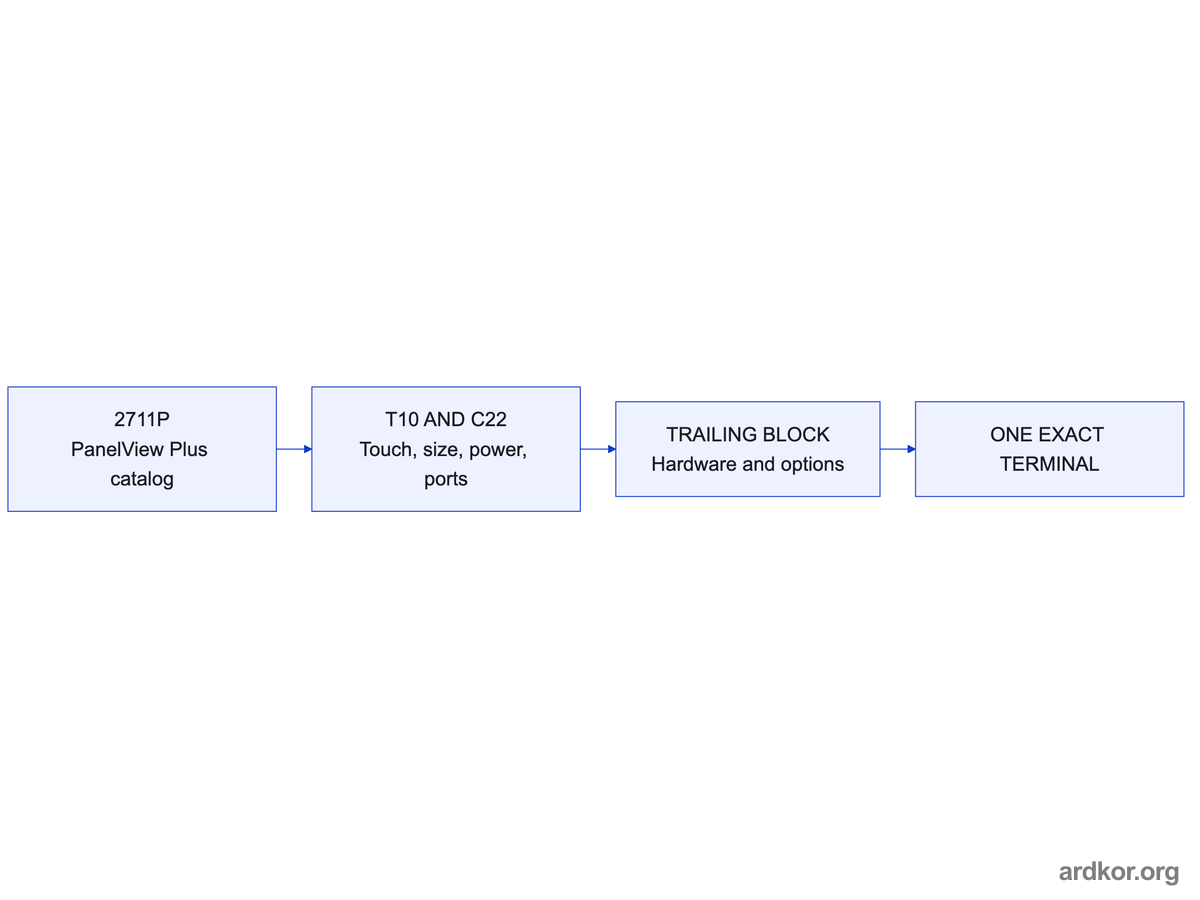

Enlarged system diagram

×

Same reading discipline as any other order number. The trailing block is where Standard and Performance divide.

Two terminals can both say PanelView Plus 7 on the bezel and still be different products once that trailing block differs, and the Standard and Performance lines part ways in exactly that territory. The same bezel, the same family name, and a different trailing block means different hardware packages and sometimes different firmware expectations.

The C22 block deserves the same care as the trailing block, since power and communication options are a common source of wrong matches. A terminal that matches on screen size but wants a different supply voltage fails in the cabinet, not in the store. Read every block before writing anything down.

One limit closes the section. The field meanings here follow the catalog structure that Rockwell Automation documents for these terminals, and each catalog number series has its own documentation page. Use the blocks to capture and compare, and let the publication for the exact series interpret before a purchase.

Schneider and Weintek pack the same details into shorter codes, and the digits carry the weight. HMIGTO5310 encodes family, size, and generation in the digits after GTO, and its bigger sibling HMIGTO6310 follows the same pattern. The shorter string is not less exact, and the temptation to trim it is where errors start.

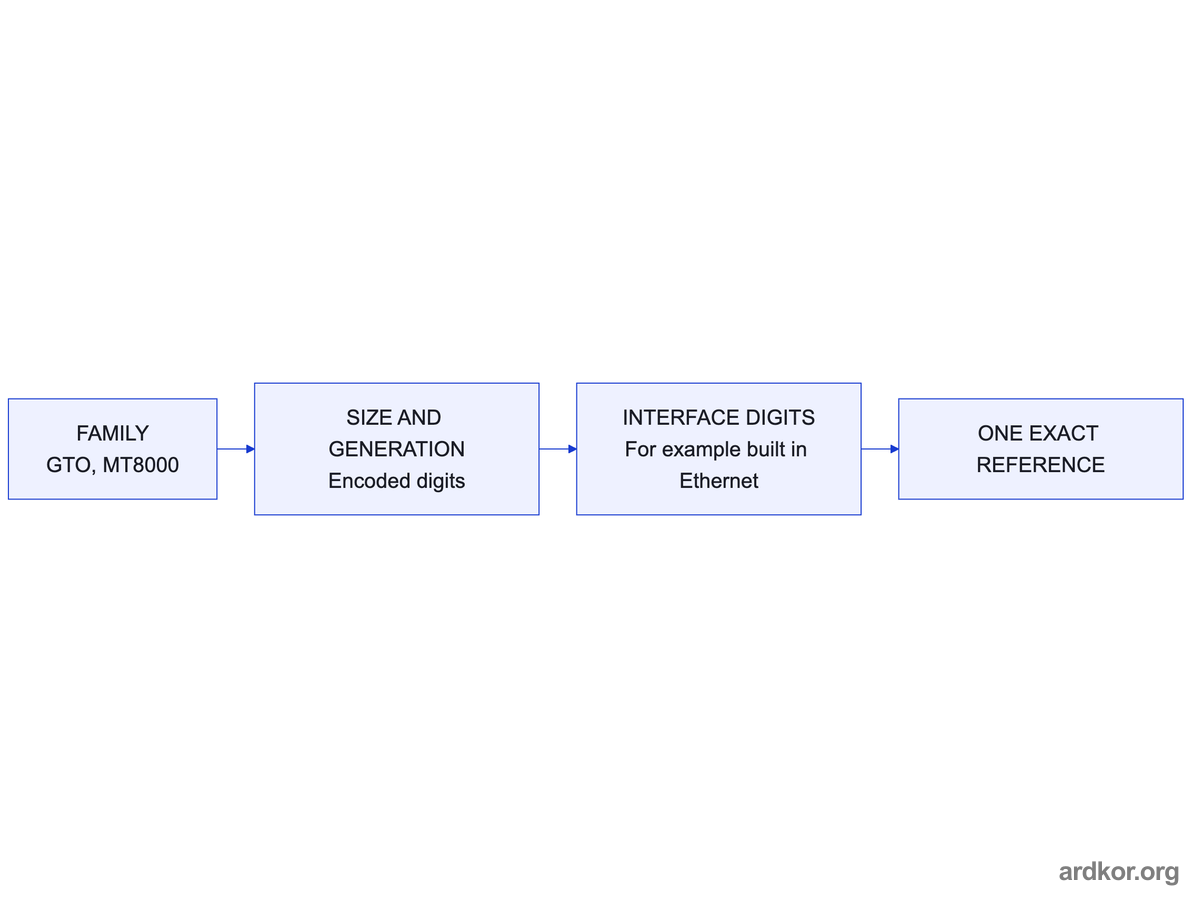

Enlarged system diagram

×

Short does not mean vague. Each digit is a field, and the full code is as exact as a long order number.

MT8106IE names the Weintek MT8000 series, the 10 inch class, and the built-in Ethernet interface. Read the code slowly once and the naming logic becomes an advantage: every digit is a field, so every digit you drop is a field you guessed. Capture it whole, and resist the urge to shorten it for a message or a search box.

Short codes have one trap the long strings do not. A single transposed digit moves you to a different size class, and the wrong code still looks plausible because there are fewer characters to notice. This is why the photo of the label stays the proof, and the transcription stays the working copy.

The limit is the same across brands. The code identifies the unit, and the product page or datasheet for that exact code carries the technical characteristics, the interfaces, and the ratings. Checking those two together takes minutes and prevents the classic wrong family match.

Grab your phone before you leave the machine. Four photos cover almost every follow-up question a reviewer will ask, and they take five minutes while you stand there. The order matters, because the rear label is the one photo that has to be perfect and everything else is context.

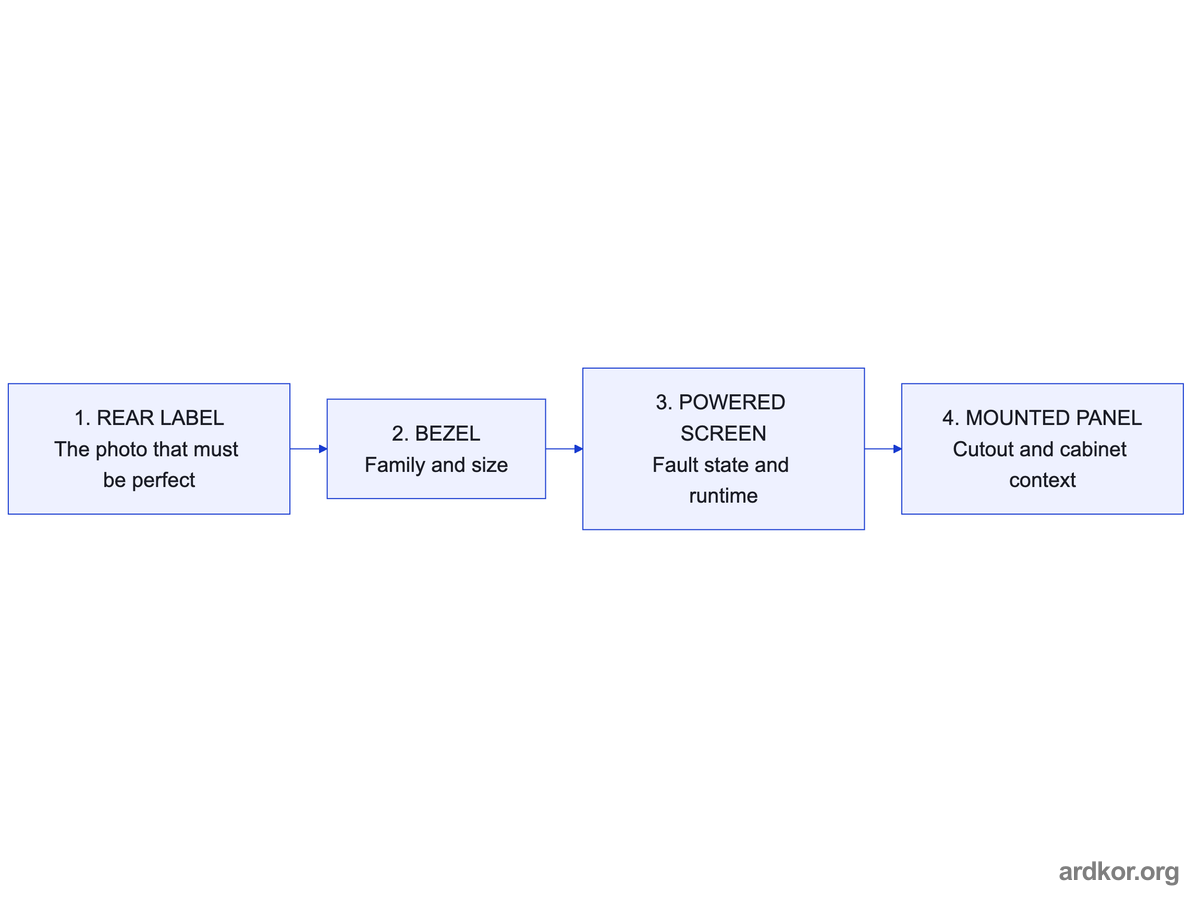

Enlarged system diagram

×

Take the photos in this order and the first one protects the whole set. Later photos carry context, not identity.

Start with the rear label, straight on and in focus, because it holds the order number, the revision, and the supply data. Then shoot the bezel, the screen while powered, and the panel as mounted in the machine. Zoom in on the rear label so the revision and suffix fields stay readable, since a blurred suffix can hide the difference between two hardware generations.

The powered screen photo does two jobs at once. It documents the fault state if one exists, and it shows the panel reached its runtime instead of failing at power on. The mounted photo records the cutout, the bezel condition, and the cabinet context that environmental checks will need later. Two photos, two different jobs, no extra work.

The exact reference decides what happens after the photos, which is why they feed everything else. Documentation, spare touch layers, firmware updates, and replacement cutout dimensions are all indexed by order number, not by marketing name. Get the string right and every later step gets easier. And keep the limit in mind: the nameplate identifies the unit, and it proves nothing about function, price, or project fit.

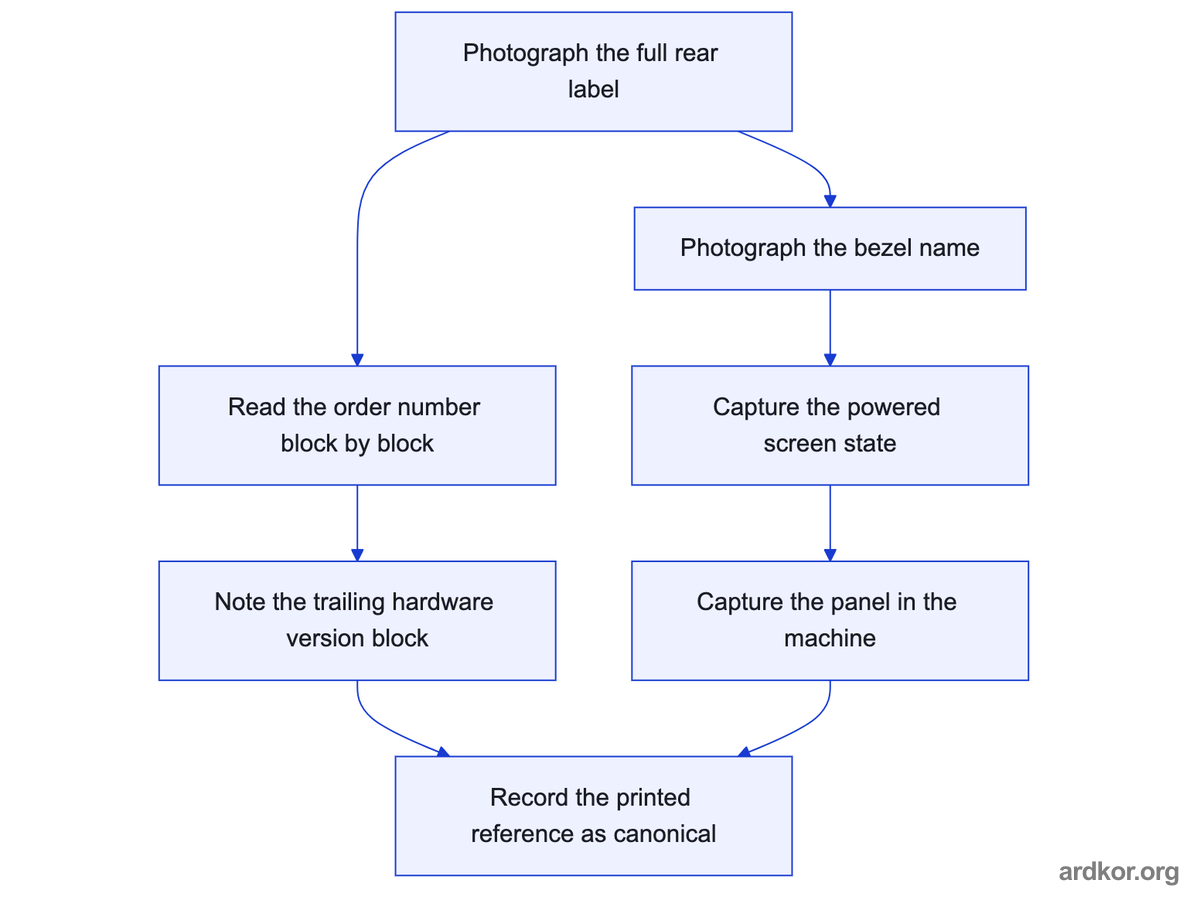

• Photograph the rear label before anything else, then the bezel, the powered screen, and the mounted panel.
• Read the order number block by block. The trailing pair separates hardware generations.
• Capture the string exactly as printed. Any shorthand is an alias, never a replacement.
• A nameplate identifies the unit. It proves nothing about function, price, or project fit.
