HMI model aliases and revisions

The same panel can carry three different names before lunch. The marketing name sits on the bezel, the order number sits on the rear plate, and trade listings or plant records add their own shorthand. KTP700 covers several Siemens Basic Panel order numbers. PanelView Plus 7 1000 maps onto a 2711P reference such as 2711P-T10C22D8S. A Magelis GTO panel is sold under both the HMIGTO5310 code and its descriptive name. All of these names describe one unit, and only one of them is exact.

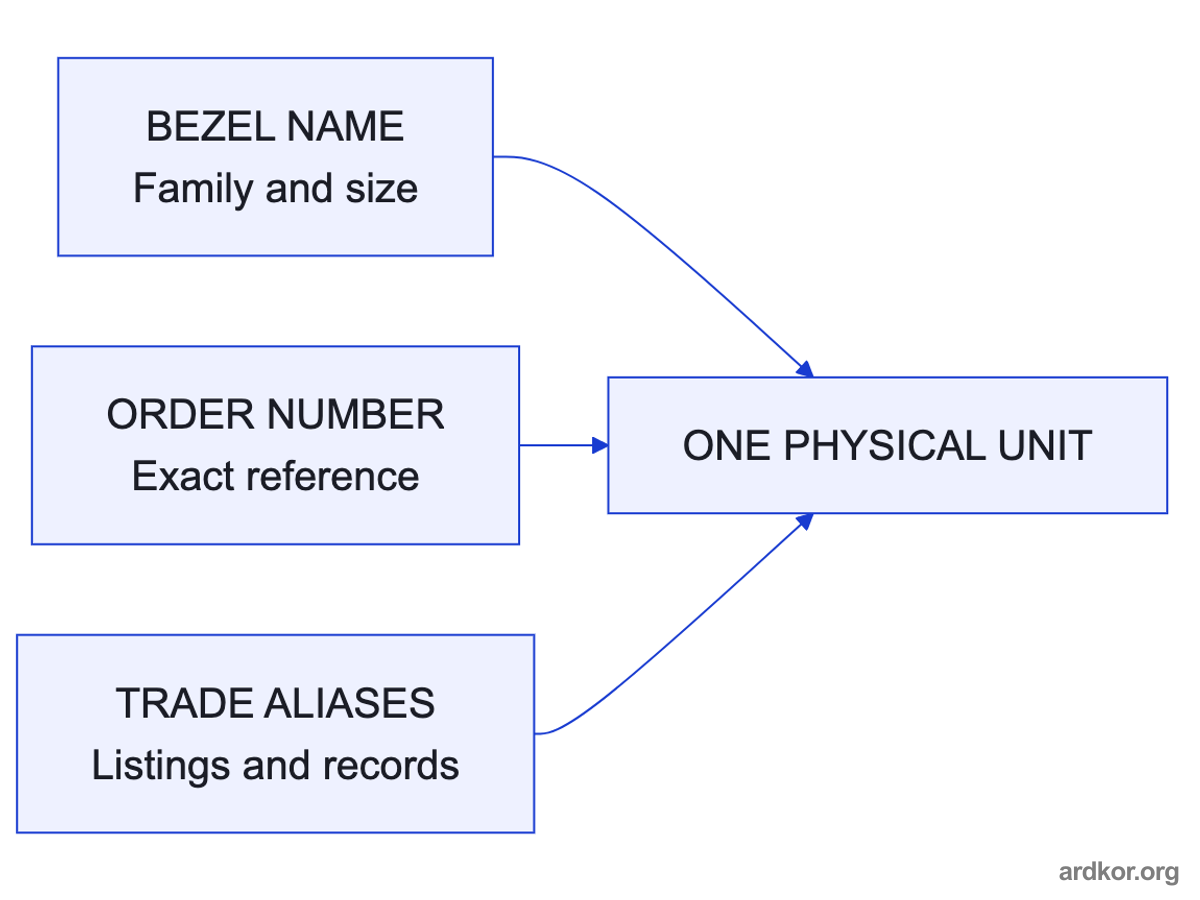

Enlarged system diagram

×

Three naming layers meet at one unit. The arrows show naming relationships, not any technical connection.

The names are not interchangeable, and treating them as if they were causes mismatches. The marketing name identifies a family and usually a size. The order number fixes the interfaces, the power option, and the hardware generation. Two listings that both claim KTP700 can differ in the trailing order number block, which is exactly where firmware behavior and service parts diverge.

Regional and channel variants add a third layer. Some manufacturers assign different order numbers per region or per sales channel for hardware that is functionally close. Aftermarket and refurbisher descriptions borrow whichever name sells best. None of this makes the names wrong, it just means each name has a source, and the source decides how much weight the name carries.

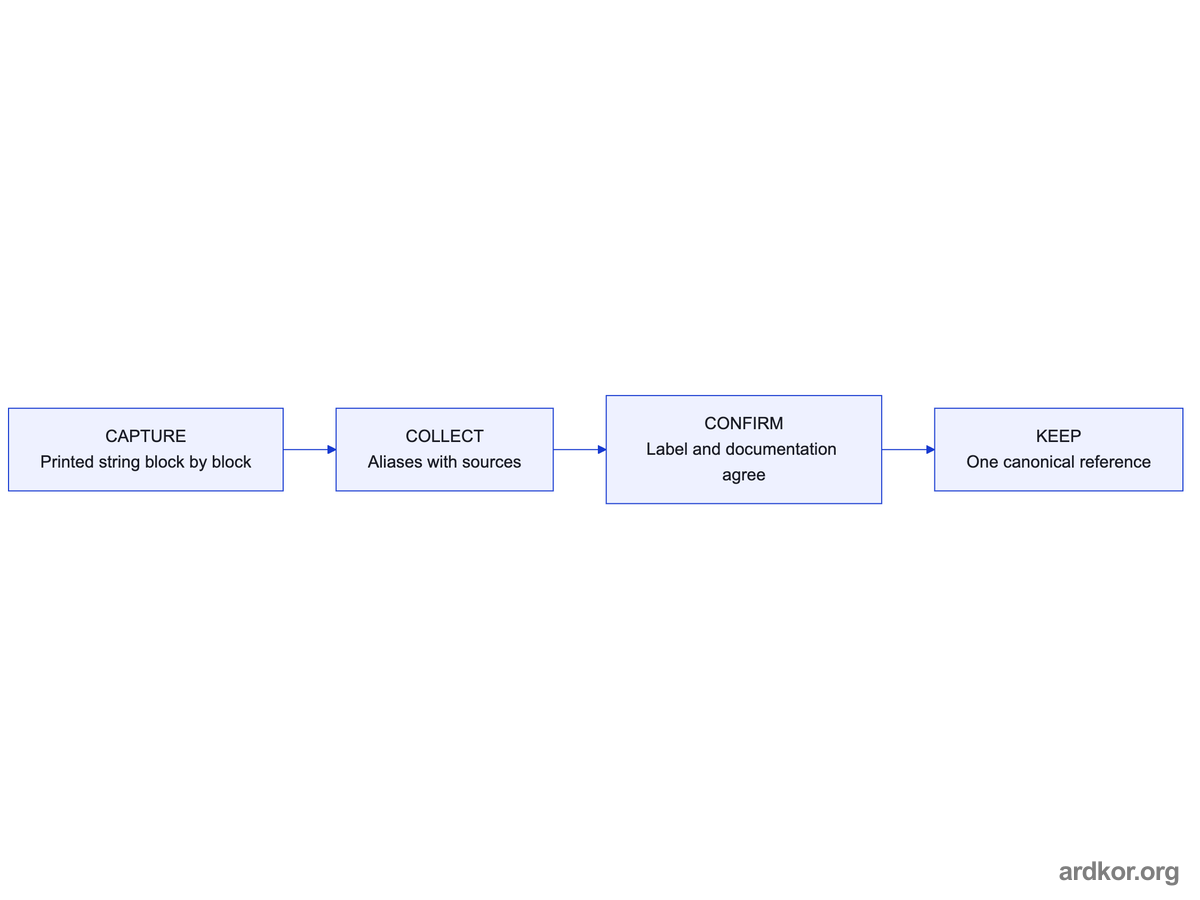

A simple recording rule keeps this under control. Capture the printed reference before anything else, then list every other name you meet under it, each with a source such as a supplier page, a plant drawing, or a maintenance log. One line per alias is enough, and the source tag is what makes the list useful to the next reader.

The rear plate is the only name that identifies the unit completely, and that is why it wins every conflict. The label prints the full order number as the manufacturer built it, block by block, with no shorthand and no marketing smoothing. A photo of that label, taken straight on and in focus, is the cheapest identity proof that exists.

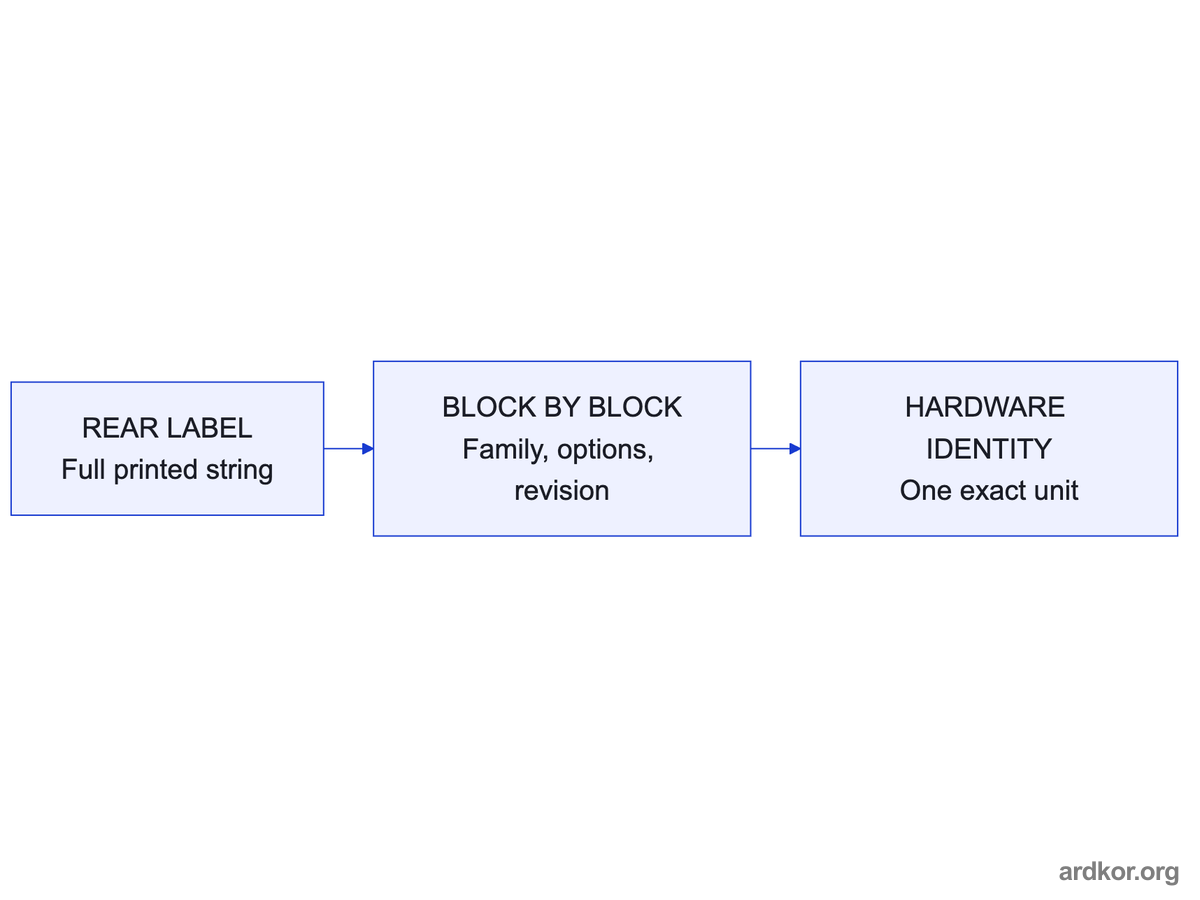

Enlarged system diagram

×

The label feeds a structured read, not a casual copy. Each block answers one question about the unit.

Read the string block by block rather than copying it as a blur. On a Siemens order number such as 6AV2124-0XC02-0AX1, the prefix places the panel in the SIMATIC HMI family, the middle blocks fix the series, the size class, and the interfaces, and the trailing digit pair tracks the hardware version. Each block answers a different question, which is why partial strings fail so predictably.

The same block logic holds across brands. Allen-Bradley catalog numbers carry power and communication options in one block and hardware packages in another, and the Magelis and Weintek short codes pack family, size, and interface into their digits. Different layouts, same principle: the full string is the unit, and every truncation is a guess.

One limit keeps this section honest. The rear plate identifies the hardware, and it proves nothing about function, condition, or history. A panel with a perfect label can still be dead, and a label from a previous service swap can sit on a unit that is not the one the plant record describes. Identity and condition stay separate records.

The trailing blocks of an order number are where variants hide, and they are the part most often lost in retyping. On a Siemens order number such as 6AV2123-2JB03-0AX0, the trailing digit pair tracks the hardware generation. A unit ending in 0AX1 compared with one ending in 0AX0 can differ in hardware revision, and that difference can matter for firmware updates and spare compatibility. Check that pair twice whenever a spare is ordered.

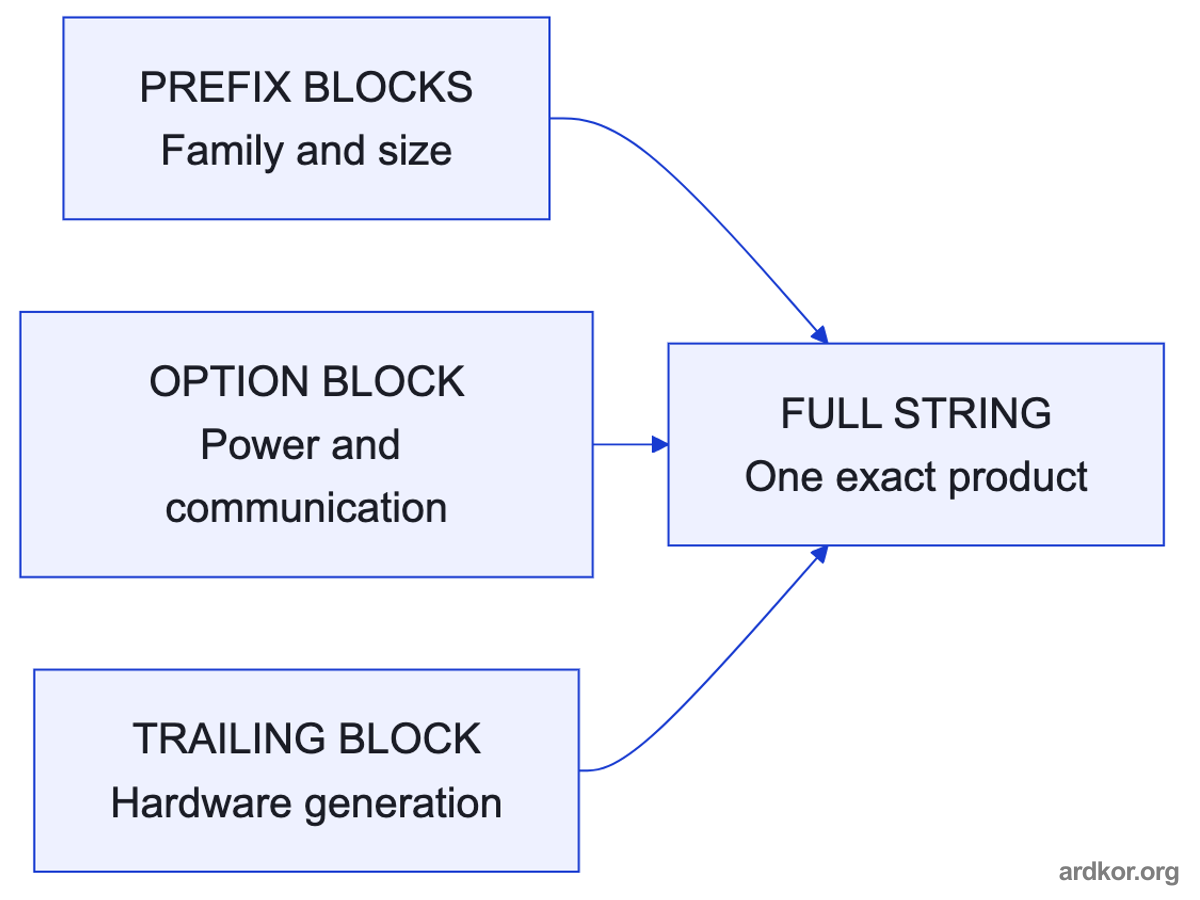

Enlarged system diagram

×

Every block carries a different difference. Drop one block and the string matches several products instead of one.

Allen-Bradley PanelView Plus 7 references split the same way. In 2711P-T7C22D9P, the C22 block ties together power and communication options, and the D9P trailing block separates hardware and option packages. That trailing block is where Standard and Performance terminals part ways. A request that records only 2711P-T7 forces the reviewer to treat several different products as one.

The C22 block deserves equal care, since power and communication options are a common source of wrong matches. Two terminals with the same screen and the same trailing block can still want different supply voltage or speak different networks. The block exists so those differences survive the paperwork, and it only works when you transcribe it.

Record suffixes even when they look decorative. Revision letters, packaging suffixes, and firmware related digits occasionally carry the difference between a plug in replacement and a unit that needs a firmware step before the project loads. Write the digits as printed, including leading zeros. A misread zero here has caused more wrong orders than any other single character.

Beyond the printed string, the market adds its own names, and they arrive with different reliability. Plant records use nicknames that made sense years ago. Supplier listings compress references to fit search fields. Refurbishers describe what the unit resembles. Each of these is a lead with a source, and a lead is all it is until the label confirms it.

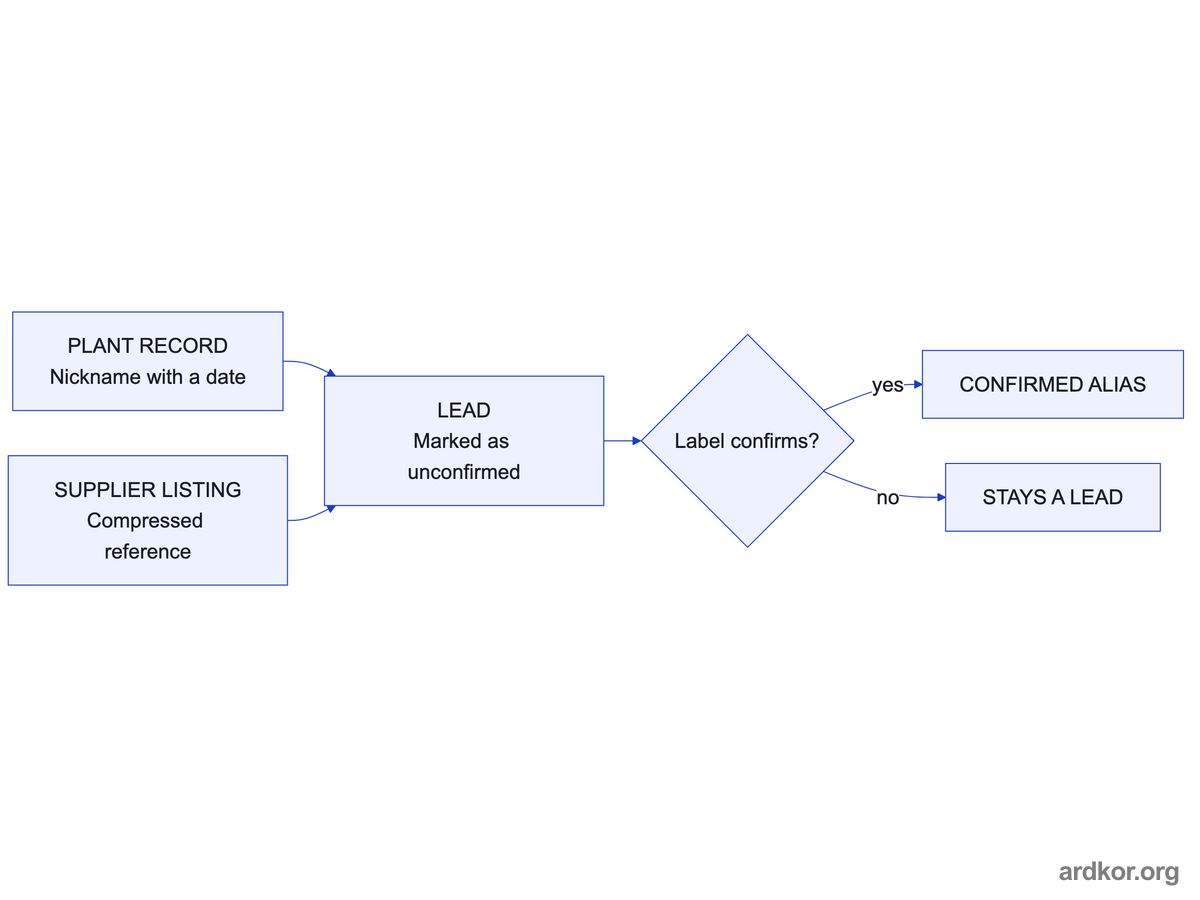

Enlarged system diagram

×

Aliases enter the record with a source and wait for the label. Nothing in this flow edits the printed string.

Regional order numbers are a legitimate layer, not noise. Some manufacturers assign different order numbers per region or per sales channel for hardware that is functionally close, so two correct references can describe the same panel. The way to handle that is to record both, each with its source, and let the documentation for the exact reference decide whether they map onto each other.

A working example: a maintenance log says KTP700 Basic Color, a supplier page offers a match for a partial string, and the rear label reads a full order number ending in a different trailing pair than the page lists. All three disagree quietly. The label settles it for hardware decisions, and the page gets a note that its listing did not match the field unit.

The limit is discipline, not skepticism. Aliases are genuinely useful for searching and for matching old drawings, and rejecting them outright wastes information. The rule is direction: aliases explain history, and the printed string decides hardware. As long as the direction stays one way, extra names cost nothing.

An alias is confirmed when three things agree: the nameplate, the documentation, and the recorded string. In practice that means the rear label photo shows the full order number, the manufacturer documentation maps that order number to the claimed family name, and no field in the string was edited or normalized along the way. Until all three hold, keep the alias marked as an alias.

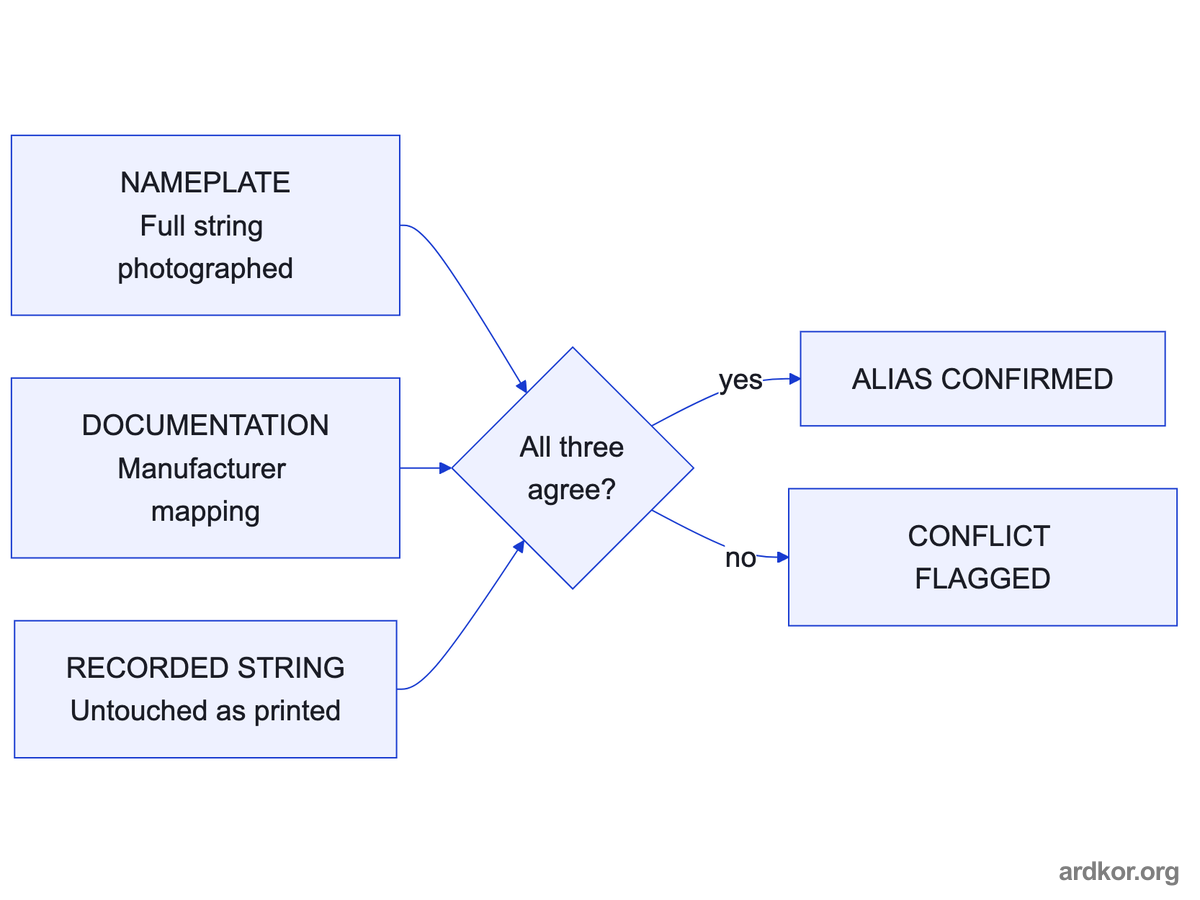

Enlarged system diagram

×

Three sources gate the confirmation. A conflict is recorded, not resolved silently by picking one name.

Conflict is information, not noise. If a plant record says KTP700 Basic Color but the label reads a Comfort Panel order number, record both and flag the conflict. The label wins for hardware decisions, while the record may reveal that an earlier panel was swapped in. Conflicts between two listings get resolved the same way, by going back to the nameplate.

The confirmation step is where most identity errors are caught cheaply. A supplier page, a manual, and a label can be checked in five minutes at the desk. The same error caught after delivery means a return shipment, and the same error caught after commissioning means a panel that boots into a project that will not load. Five minutes, three sources.

One boundary matters here. Documentation confirming the mapping of an order number to a family name is a manufacturer document for that exact reference. A second supplier page agreeing with the first is not confirmation, it is agreement, and agreement can reproduce the same mistake twice.

Keep the confirmed reference as the single canonical value in the request and put aliases under it. A reviewer who sees 6AV2124-0XC02-0AX1 as canonical, with plant nicknames listed separately, can check each claim without guessing which name is authoritative. The structure does the work: one string decides, the rest explain.

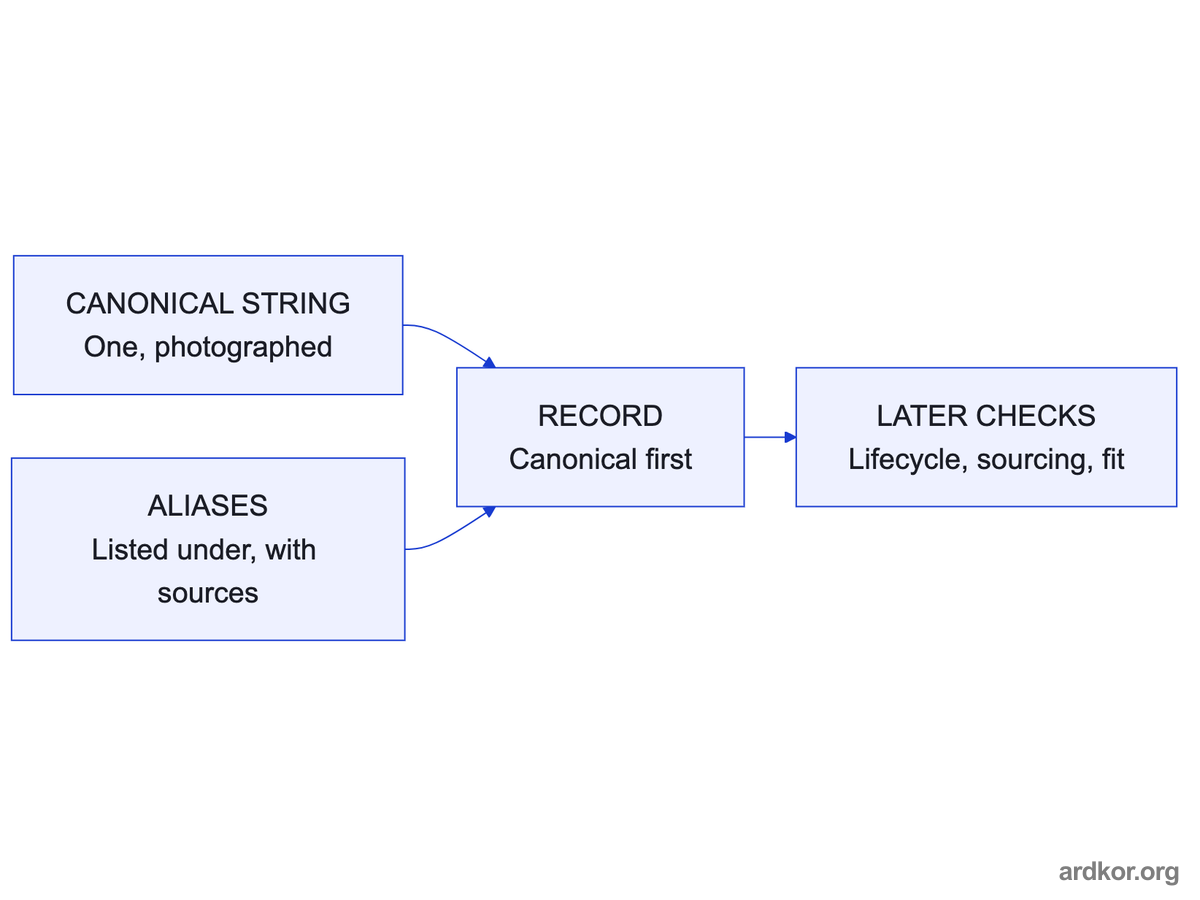

Enlarged system diagram

×

The structure is one canonical value plus sourced aliases. Later checks consume the record in that order.

The same habit protects the record over time. When the next person reads the file in three years, aliases without a canonical anchor look like competing claims, and the fastest reader simply picks one. A one line header saying which string is canonical, and where it was photographed, prevents that drift permanently.

Connect the discipline to the rest of the workflow. The linked obsolescence guide runs lifecycle checks against the exact reference, and the nameplate guide shows where each identifier physically lives. Aliases feed those checks as search terms, and the canonical string feeds them as the subject. Keeping the two roles separate is what makes the checks fast.

The closing limit repeats the theme of this guide. Aliases explain history. The canonical string decides hardware. Neither replaces the other, and a request that keeps both, clearly separated, is the version a reviewer can act on without a single clarifying question.

• Marketing names and plant shorthand are aliases. The printed order number is identity.
• The trailing blocks carry hardware generation and option differences.
• Confirm an alias only when nameplate, documentation, and recorded string agree.
• Record conflicts instead of resolving them silently. One canonical reference per request.
