HMI repair or exchange: what to send

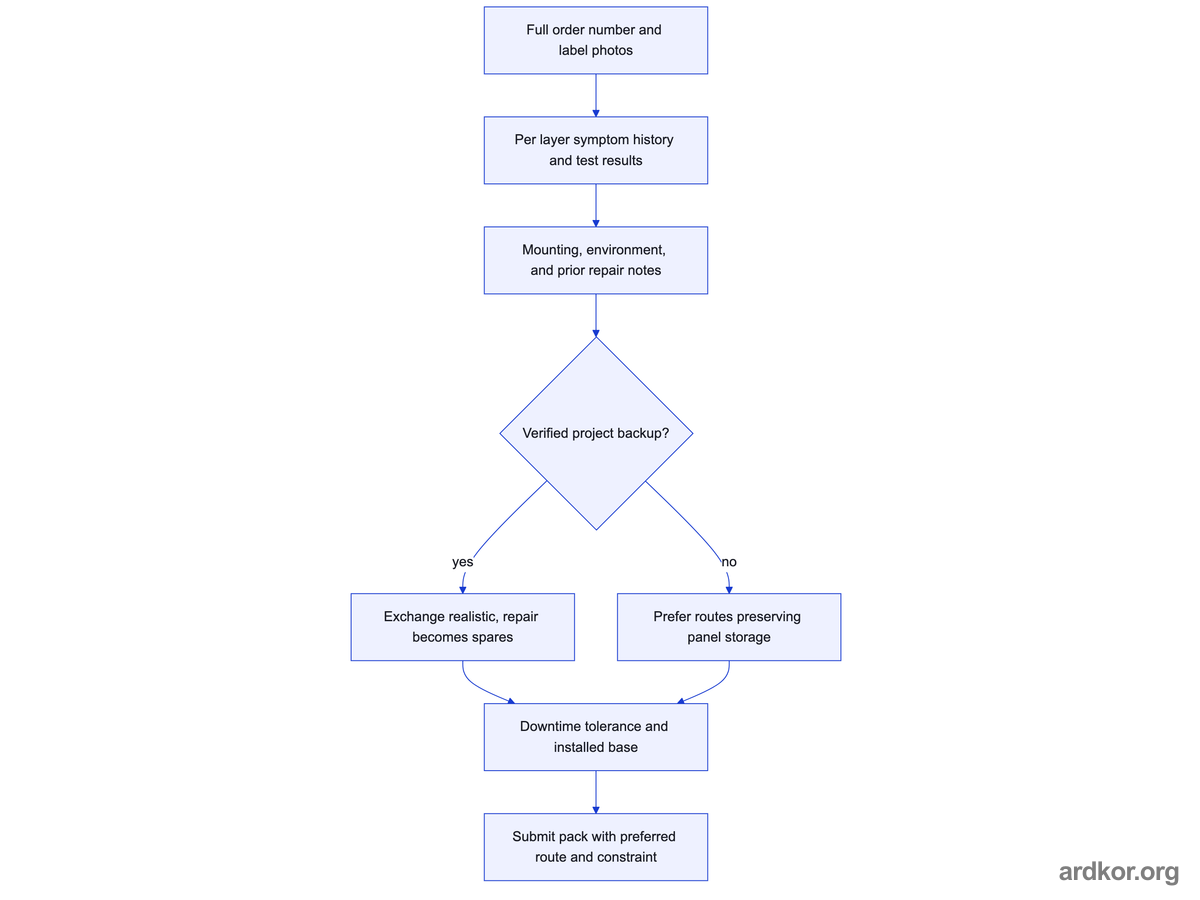

A repair bench receives your panel as a box with a story attached, and the story starts with identity. The identity trio is the full order number and revision exactly as printed, a focused rear label photo, and a bezel photo. For a PanelView Plus 7 that means the complete 2711P string such as 2711P-T7C22D9P, not a shortened 2711P reference. A bench that receives the wrong variant loses a full diagnostic cycle.

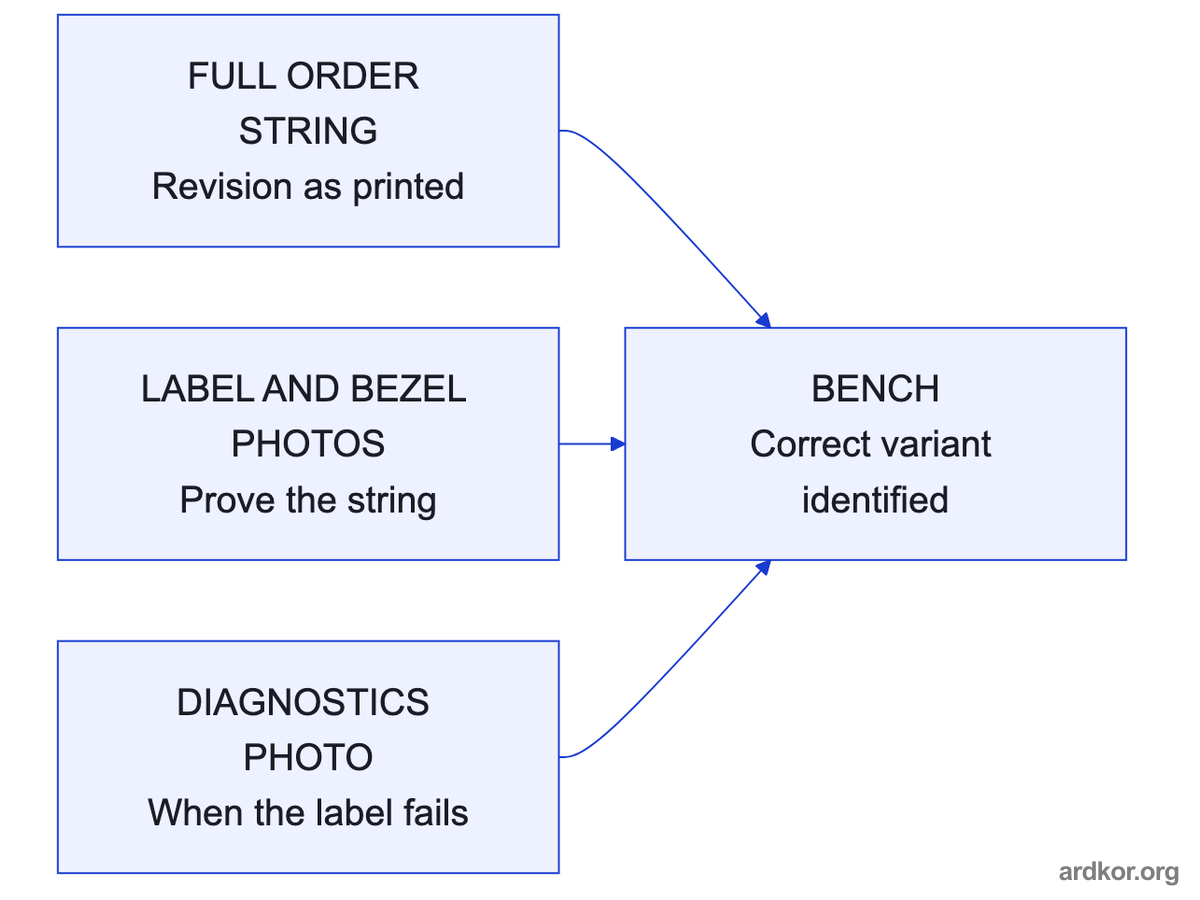

Enlarged system diagram

×

Three evidence sources converge on one variant identification. Identity comes first, diagnosis comes after.

Why the full string matters so much at the bench: the trailing block separates hardware and option packages, and the bench needs them to reproduce the unit correctly. Two terminals that look the same from the front can want different display cables, different overlays, or different firmware steps. The string is the only reliable way to know which unit opened on the workbench.

If the label is unreadable, use a diagnostics page photo and say so. Most panels print their exact order number and firmware version on screen, and that photo plus a note about why the label failed is better than a guessed reference. What the bench cannot accept quietly is a confident number that turns out to belong to a different unit.

A limit belongs at the start. The identity trio tells the bench what it is holding. It does not tell the bench what is wrong, and it does not commit anyone to a repair outcome. Those come from the symptom record and the checks the bench performs.

The symptom record describes what changed, when it changed, and what still works. Keep touch, image, and power symptoms separate, the way the linked symptom guide shows, because they point at different components. Write it as a short list, not a story. A bench reads lists; a narrative makes them re read everything twice.

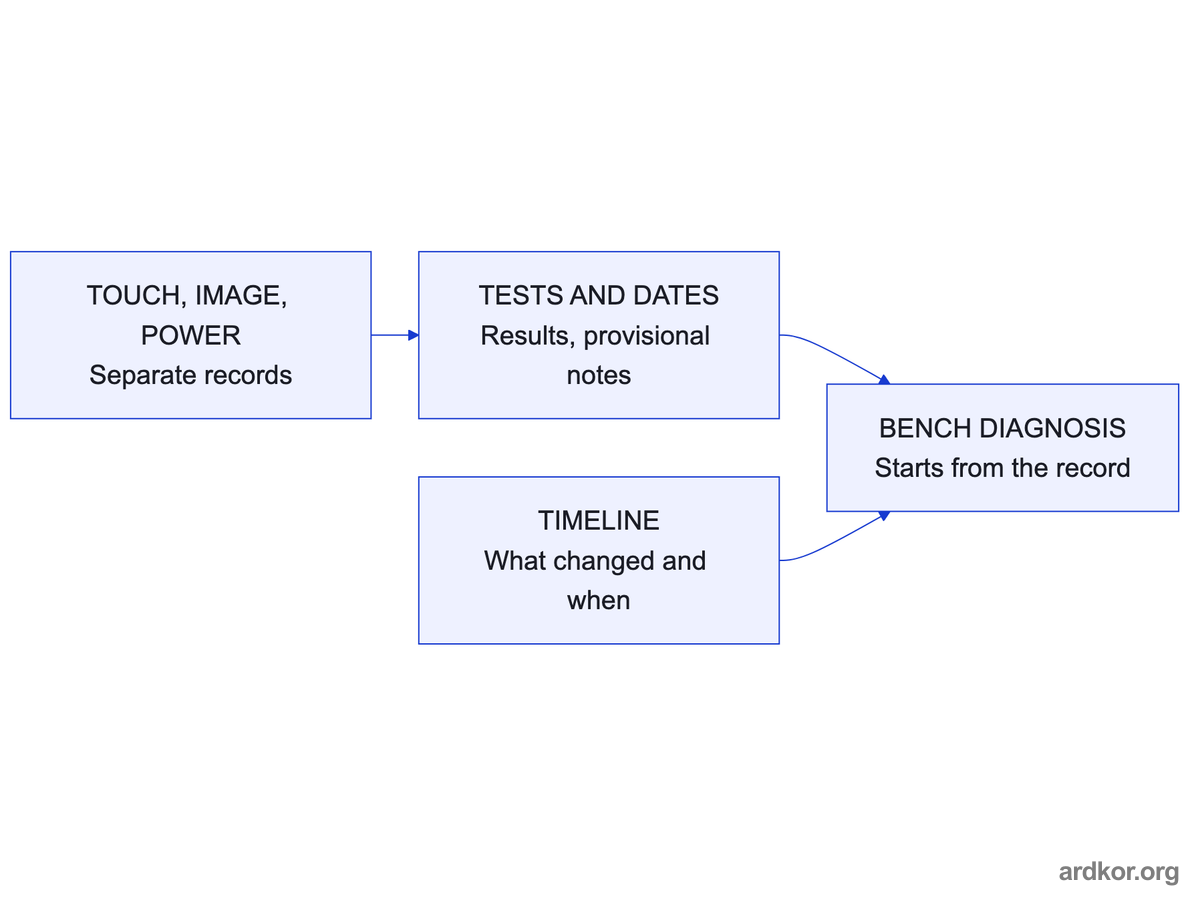

Enlarged system diagram

×

Two streams reach the bench: what the panel does and when it started. Neither stream proves a failed part.

Include any isolation tests you already ran, with their results. A USB mouse check that moved the cursor while the touch layer stayed dead, or a flashlight test that showed faint content on a dark screen, each cut a whole branch out of the diagnosis. Give the result and the date, and mark your conclusion as provisional rather than folding it into the observation.

Dates carry more weight than they seem to. A fault that appeared after a power outage, a cabinet cleaning, or a lightning storm reads differently from one that crept in over months. The bench sees many panels a week, and a dated history lets them compare your unit against similar cases honestly.

One discipline keeps the record useful: never summarize away a detail that felt irrelevant. An odd startup behavior that stopped by itself, a fault that only appears when the cabinet is warm, or a message that appeared once may be the detail that saves a diagnostic day. Lists are cheap. Leaving things out is expensive.

Environment notes answer the questions the bench cannot ask your machine. How is the panel mounted, and what does the cabinet see in temperature and cleaning? A panel from a washdown food line tells a different story than one from a dry control room, even with identical symptoms. Two sentences carry most of this.

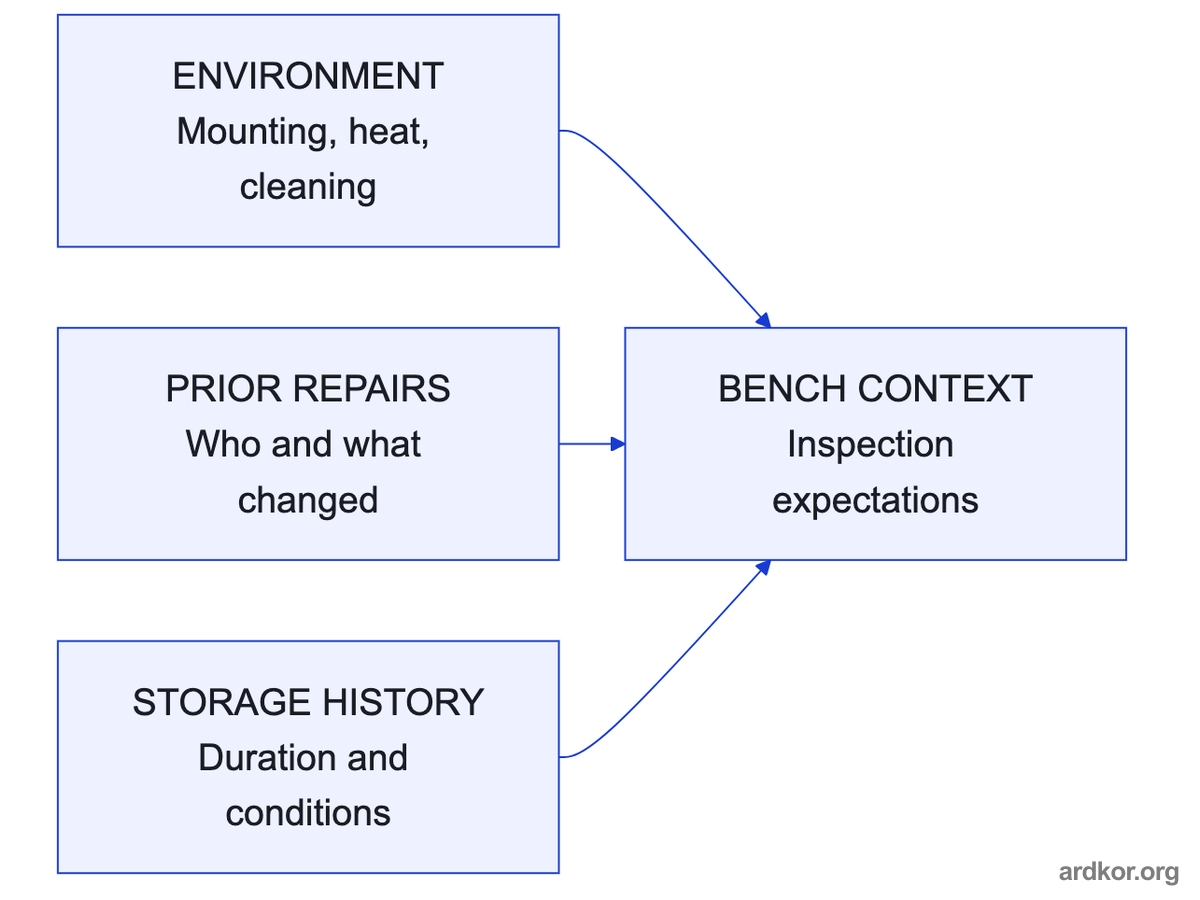

Enlarged system diagram

×

Three history streams shape expectations. They inform the inspection, they do not preset its verdict.

Prior repair history belongs in the pack too. If the panel was repaired before, say by whom and what was replaced. A bench that opens a unit with non original parts prices the work differently, and a prior repair can explain a fault that otherwise makes no sense for that model. If the panel came from a shelf spare, record how long it was stored and where.

Storage conditions explain some dead on arrival symptoms, which is why the shelf spare question exists at all. A unit kept ten years in an unheated warehouse has different electrolytics than one kept in a conditioned store. Benches see this often, so the note is worth the minute it takes.

The limit on history notes: they inform the inspection, they do not decide it. A prior repair does not make the bench blame the old parts, and a harsh environment does not prebook a cause. Write what happened, and let the opened unit confirm or clear it.

The fault class moves the recommendation more than anything else you send. A failed backlight or a worn resistive touch layer on a Comfort Panel is a defined component repair. A unit that powers on to no display at all may be a mainboard or supply fault. A flooded or burnt panel is usually not economic to repair. Record which class the evidence points to, and mark it provisional.

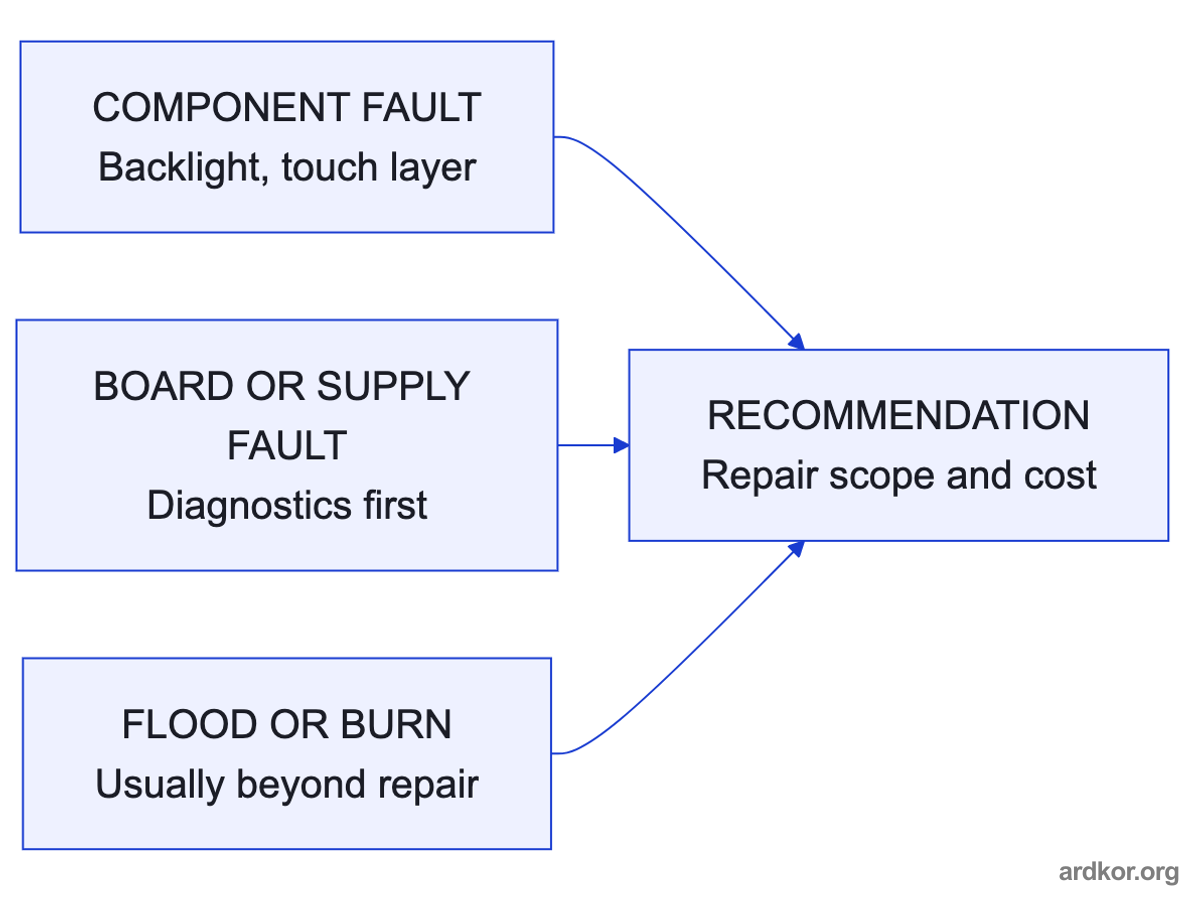

Enlarged system diagram

×

Classes branch the recommendation. Assign one provisionally from evidence and let the bench confirm it.

Class matters because it changes the bench's first hour and your expectations together. A component repair has a known parts list and a bounded cost. A board level fault starts with diagnostics that may end anywhere. Knowing which conversation you are in prevents both false hope and premature replacement of a repairable unit.

When the class is unclear, say what you checked and what it ruled out. A note like screen stays black, power LED on, mouse check responded, so runtime runs but image path fails, gives the bench a running start. A note that says panel dead forces them to establish the basics from zero.

Keep one limit: your class estimate is a hypothesis, not a finding. The bench confirms the class when the unit is opened, and a well written provisional class that turns out wrong is still a good answer, because every test you documented tells them where you already looked.

Project status decides whether an exchange is realistic, which is why it shares the front page of the pack with identity. With a verified backup, an exchange unit can be loaded and swapped in, and repairing the original becomes a spares question. With no backup, the panel storage holds the only copy of the machine project, and routes that preserve the storage move to the front.

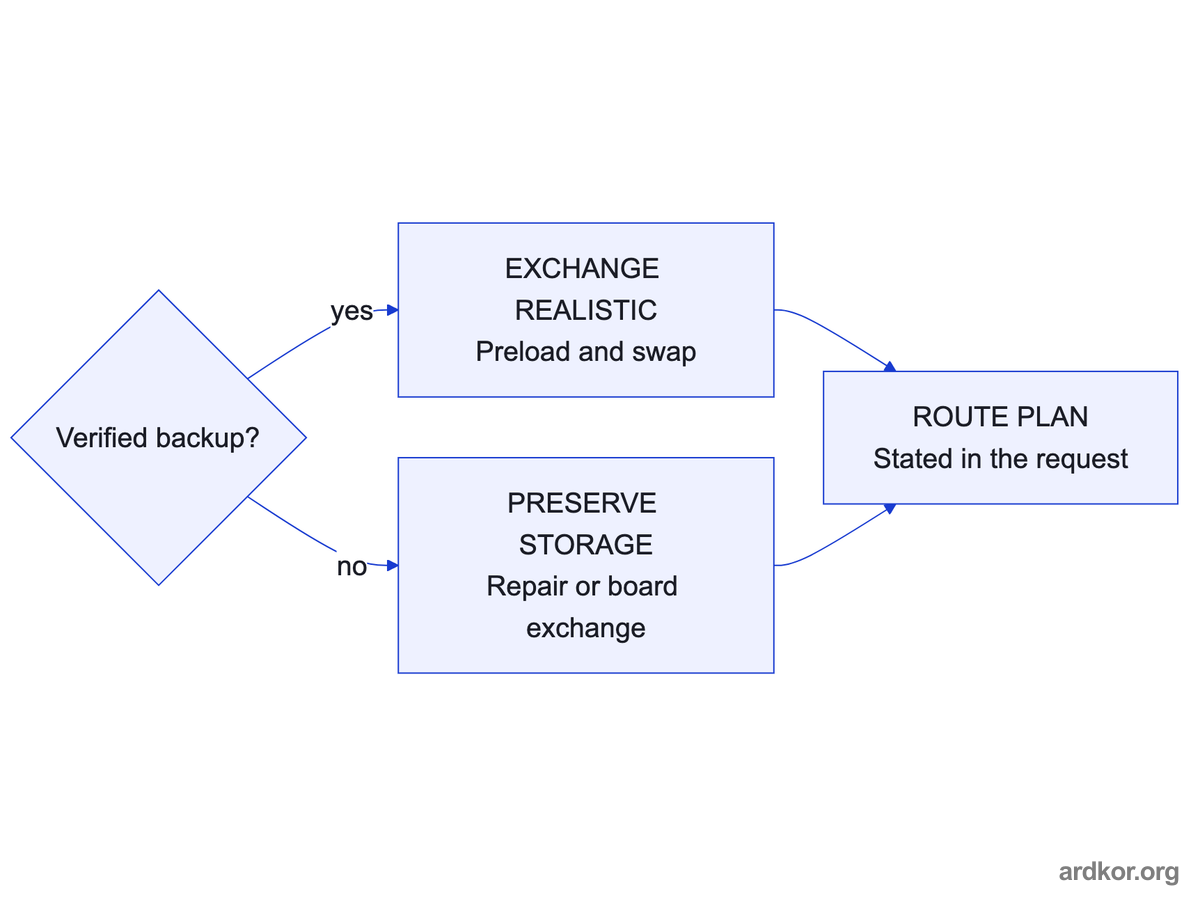

Enlarged system diagram

×

One written fact splits the route map. State the branch early, and the review starts on the right path.

Say in the request that a route preserving the storage is preferred, when that is the case. This single line saves a whole round of questions, because the reviewer immediately knows that a blank replacement unit, however fast it ships, does not solve your problem. The same line also explains why you might decline an otherwise attractive offer.

The backup status pairs with the tool record. Write which tool built the project and which version, for example a FactoryTalk View Machine Edition application archived as .apa, or a TIA Portal project. An exchange loaded from a file nobody can open is not an exchange, it is a second panel with the same problem one step later.

A boundary holds here too. Backup status shapes the route, it does not guarantee one. Whether the exact reference is available for exchange, and what a storage preserving repair costs, stay open until the provider checks them against current sources.

End the pack with your preferred route and the condition behind it. Preferred repair, exchange, exact reference sourcing, or full replacement each start a different review. Stating the preference plus its constraint, such as no project backup, lets the reviewer confirm or challenge it with evidence. A preference with a reason is reviewable. An unexplained preference usually gets relitigated later.

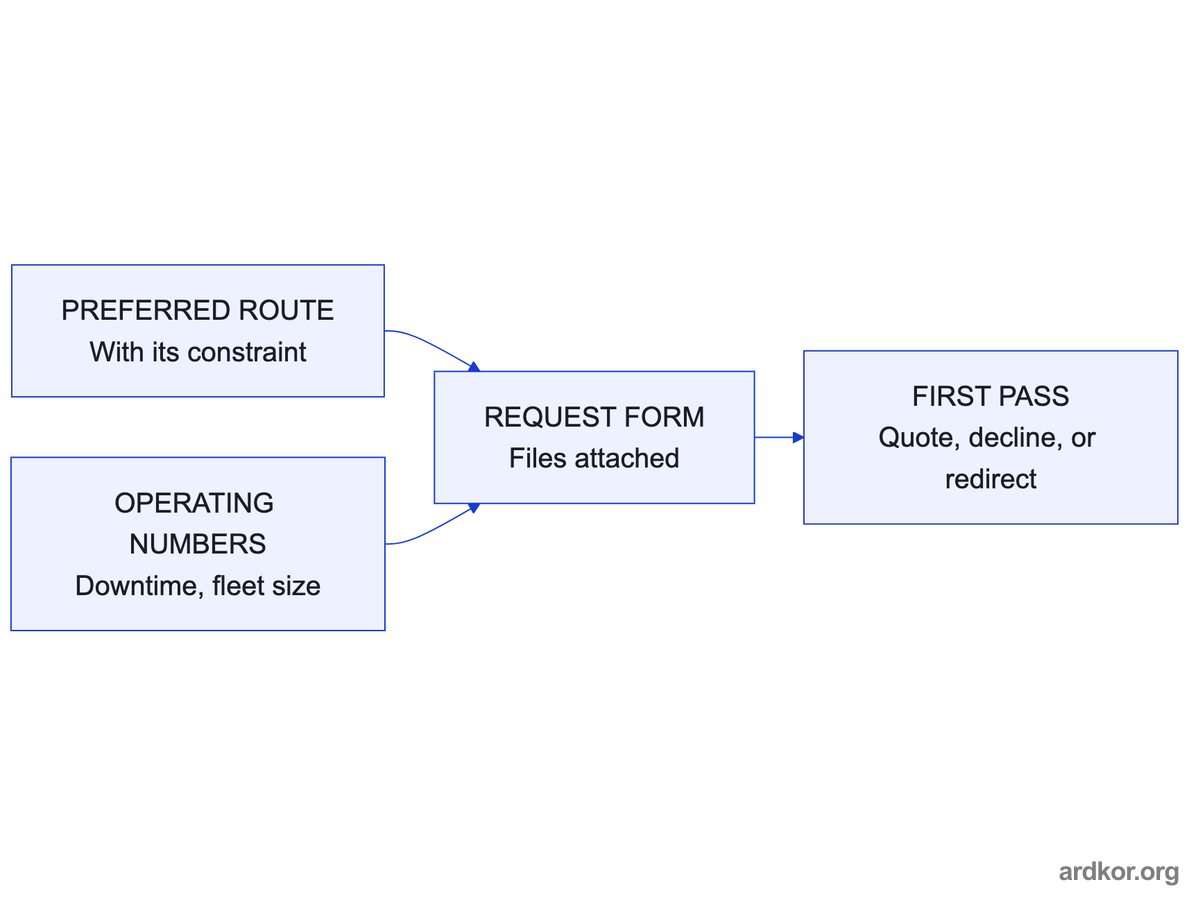

Enlarged system diagram

×

The closing sequence turns evidence into a decidable request. The outcome stays open until the provider checks it.

Add the operating numbers that scale the answer. Downtime tolerance and the number of identical units in service both change the plan more than the fault itself. A single line stop with no spare pushes toward the fastest documented option, and a fleet of the same reference makes a good repair valuable as a future spare.

Submit through the request form with the files attached, and keep your own copy of everything sent. Send original resolution images rather than compressed screenshots, because label suffixes are the first detail to disappear in compression. Photos of the rear label, the screen state, and the project or firmware pages cover most of what the next step needs.

The pack sets up the review but does not fix the outcome. Quotations, repair success, and exchange availability depend on checks the provider performs. Phrase the request around evidence and preferences rather than promises about cost or feasibility. A provider who receives this pack can quote, decline, or redirect on the first pass instead of asking for the basics. That is the whole point of the pack.

• Send the full order number, revision, and focused label and bezel photos.
• Record symptoms per layer, with test results and dates.
• Say whether a verified project backup exists. It decides exchange feasibility.
• Give downtime tolerance, installed base count, and your preferred route with its reason.
