HMI touchscreen vs display failure: a visual troubleshooting guide

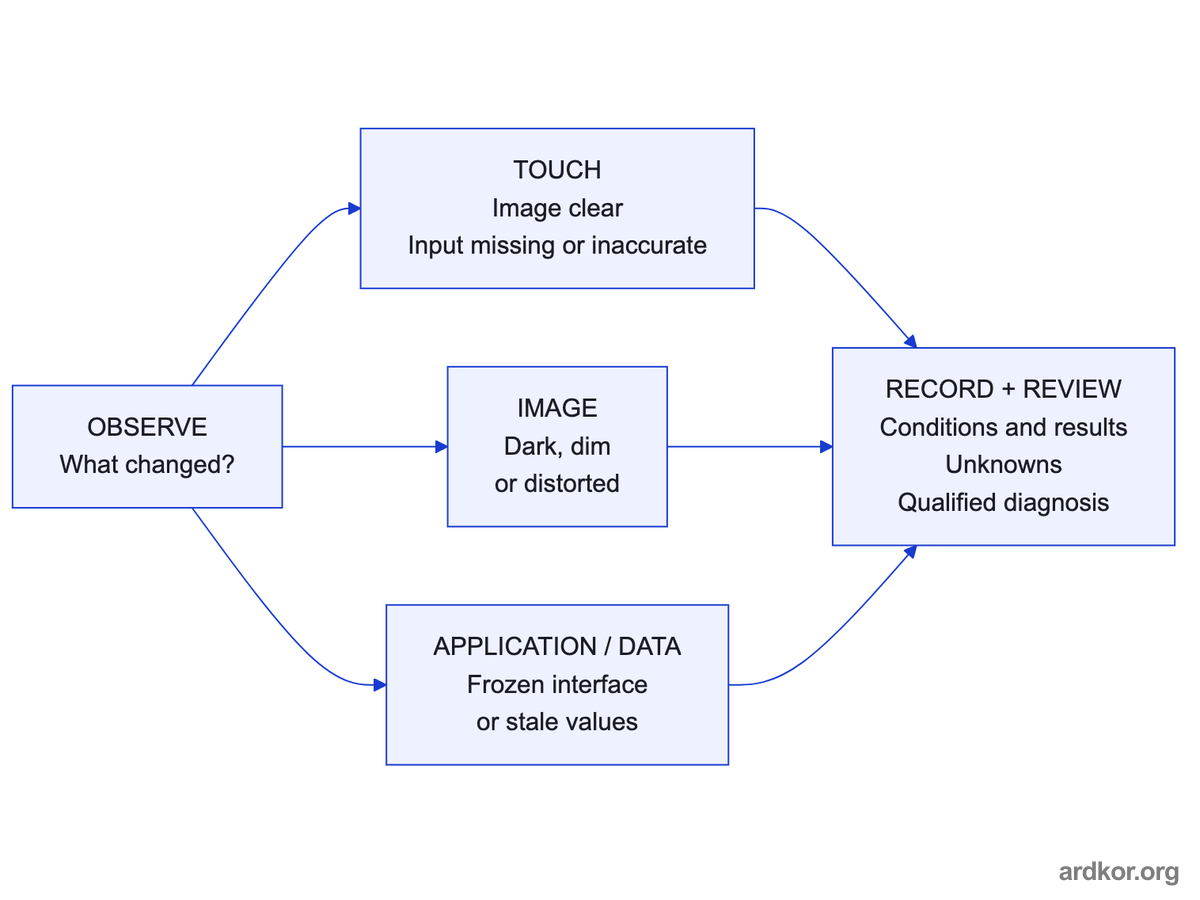

An HMI (human-machine interface) is the operator panel used to view machine information and enter commands. The word screen often hides two separate jobs: showing an image and sensing a finger. Think of a monitor and a pointing device sharing the same front surface. One job can fail while the other still works.

Enlarged system diagram

×

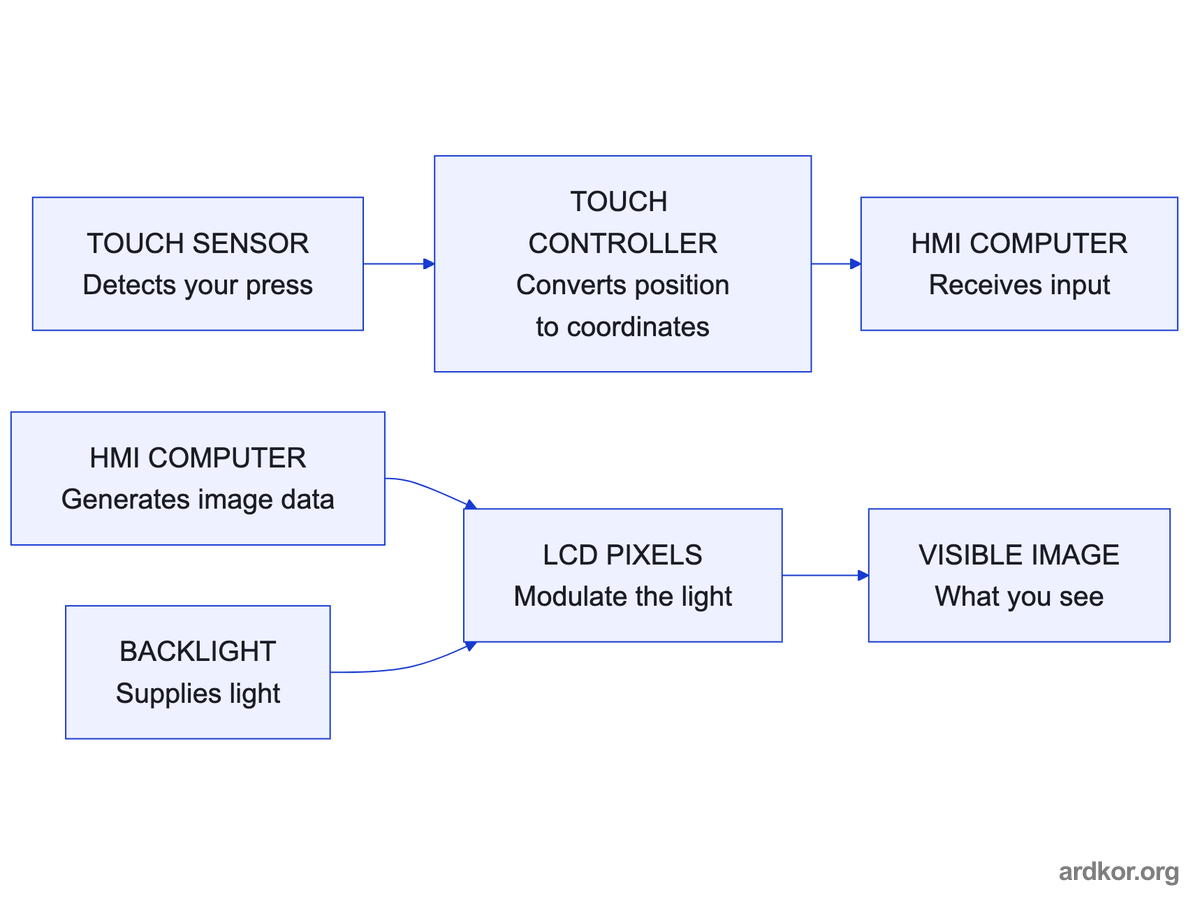

Read each path from left to right: touch input above, image output below. Both HMI computer boxes refer to the same computer. Arrows show function, not wiring or a physical layer stack.

The touch sensor detects where you press. Its controller converts the sensor signal into a position, usually called X and Y coordinates: across and down the screen. The HMI computer runs the machine project, meaning the configured pages, buttons and data connections. The software that executes this project is called the runtime. Its display electronics send image data to the LCD (liquid-crystal display).

In a backlit LCD, the backlight supplies light and the LCD controls how that light passes through its pixels. The protective front, touch sensor and LCD may be bonded into one assembly. Separate functions do not necessarily mean separately replaceable parts. This article covers typical LCD-based panels; other display technologies and remote display architectures need their own documentation.

A button drawn on the screen is software, not a physical switch. After receiving touch coordinates, the project checks which object is at that position and what action is allowed. A page-navigation button may only change the local display. A process button may request an action from a PLC (programmable logic controller), the computer that runs the machine logic.

Enlarged system diagram

×

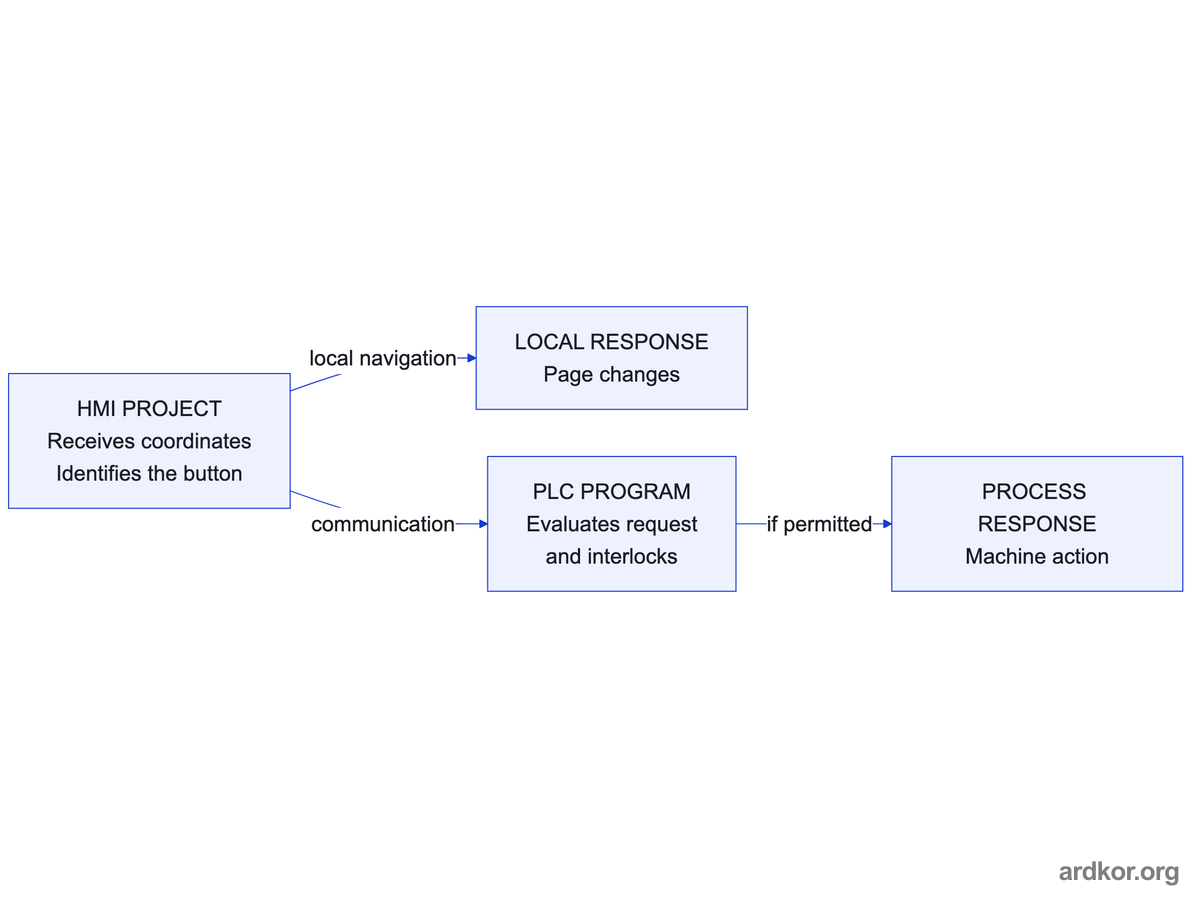

A registered touch, a software response and a machine action are three different checkpoints. This is a simplified control path, not a safety circuit diagram.

The PLC evaluates the request against its program and operating conditions. An interlock is a condition that must be satisfied before an action is allowed. A button can register a press while the requested machine action remains blocked. Conversely, a machine may keep running even when its operator panel stops responding. Neither observation alone proves the whole system is healthy.

This gives you three separate observations: did the interface register input, did the application react, and did the process respond? Use a documented non-actuating service screen for input checks. Do not press Start, move an axis, change a setpoint, or defeat an interlock to find out whether touch works. Have the machine placed in the required safe condition under the site procedure before any input test.

A dead zone is an area that ignores input. An offset means the registered point is beside your finger. A ghost touch is an input recorded without an intended touch. These observations put the touch path on the investigation list, but they do not identify a failed part. A disabled button or an invisible software overlay can also make one region appear unresponsive.

Enlarged system diagram

×

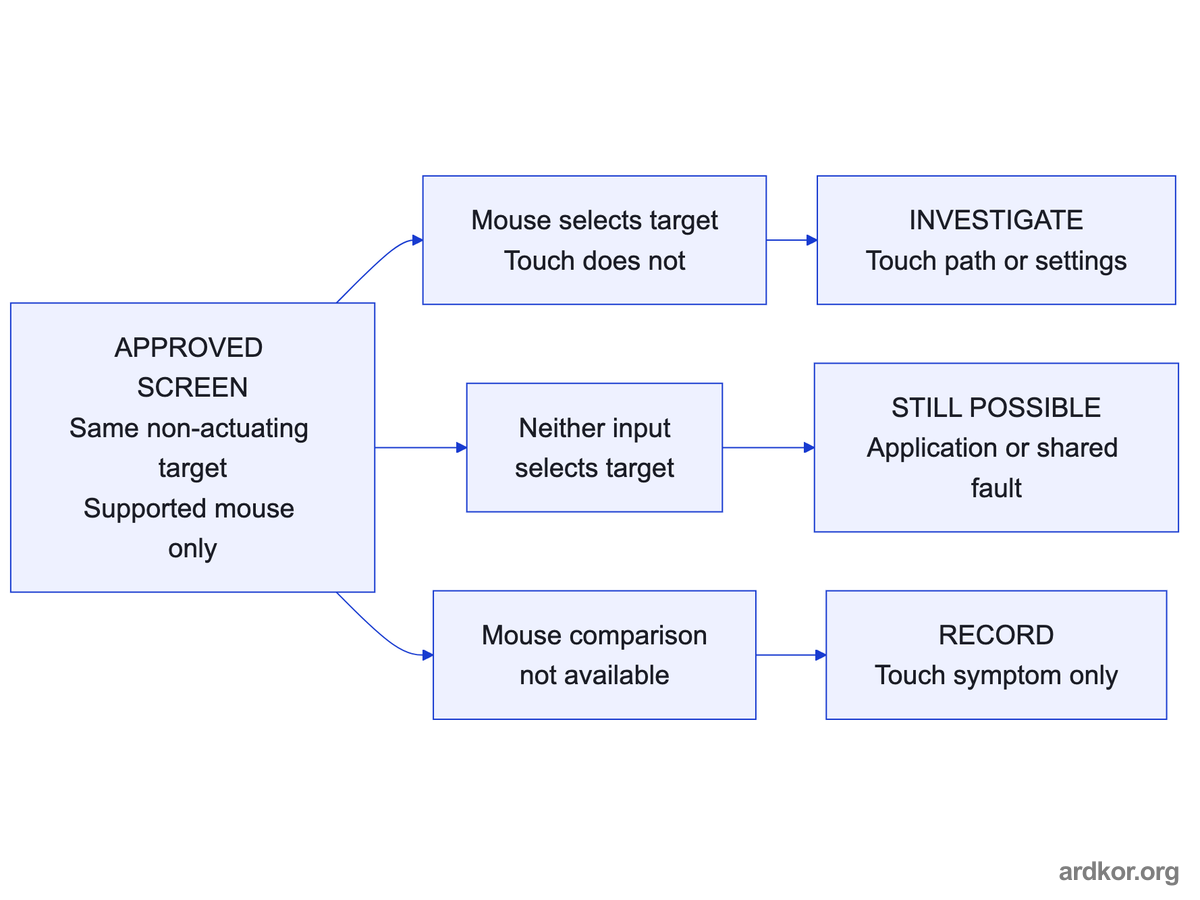

The mouse provides an alternative input path. It does not certify the project, PLC communication or every part of the display.

Resistive sensing uses pressure to bring conductive layers into contact. Capacitive sensing detects a change in an electrical field. These mechanisms explain why permitted gloves, styluses and operating conditions differ. Identify the technology in the manual; do not assume that all capacitive panels accept gloves or that either technology has one characteristic failure mode. Record contamination, moisture or damage without improvising a cleaning method.

Calibration aligns sensed coordinates with screen positions on models that provide this function. Use only the documented procedure and record whether the offset returns. Repeated recalibration is not proof of a lasting repair. Avoid changing settings before capturing the original symptom.

If the exact model supports a USB mouse and the approved service procedure permits it, compare mouse and touch on the same non-actuating screen. A mouse that can select the same target while touch cannot narrows attention toward touch sensing, its connection, controller or input configuration. Cursor motion alone is weaker evidence. If neither input works, software or shared hardware remains possible. An unsupported mouse test is inconclusive.

A black screen is a symptom, not a backlight diagnosis. Record power indicators and any visible startup image first. A lit status LED does not prove that the computer has booted or that all internal supplies are correct. Brightness, a screensaver, missing image data, a boot failure and a display hardware fault can all belong in the investigation.

Enlarged system diagram

×

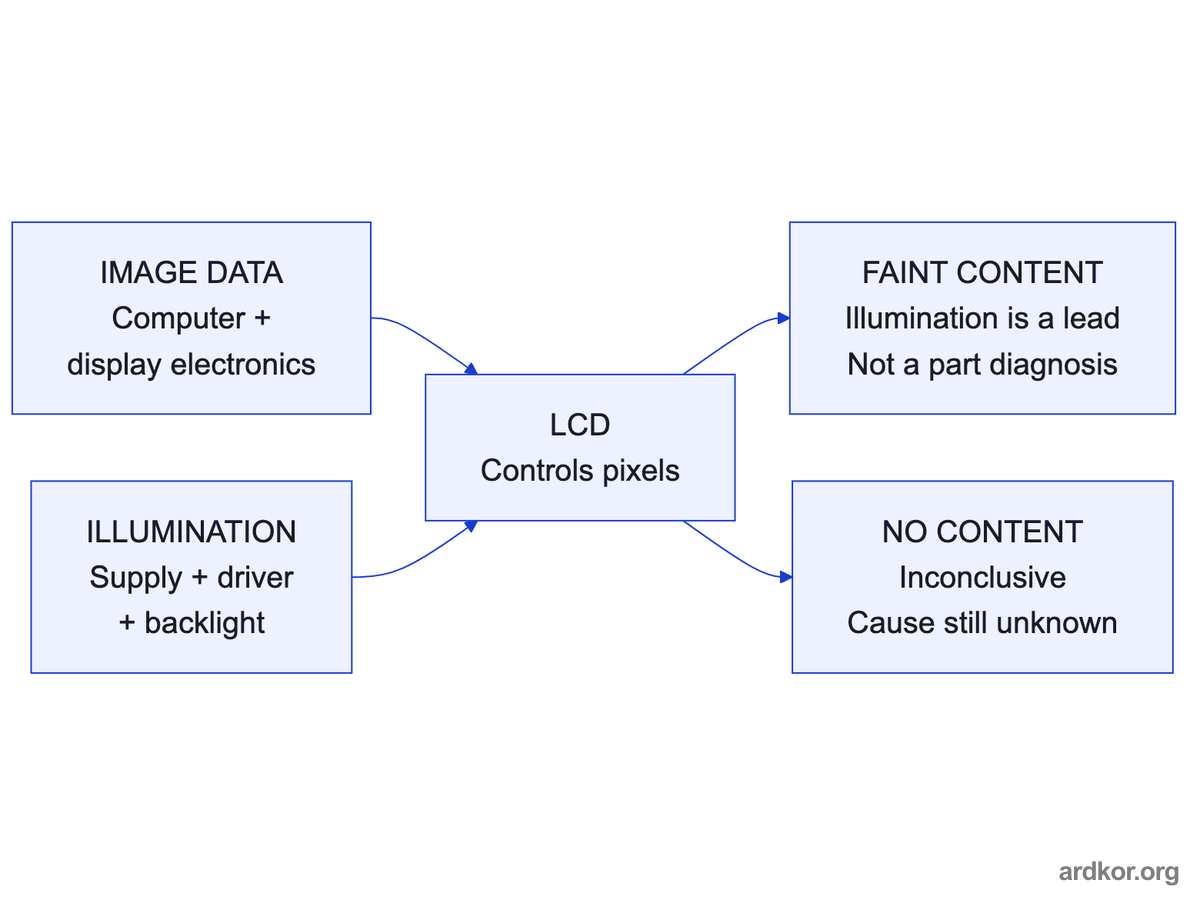

Image and illumination are separate requirements. A driver is the electronics that powers and controls the light source; its design depends on the backlight technology.

For a backlit LCD, an external flashlight held at an angle may reveal faint text or shapes without opening the panel or touching controls. If you can see content, some image formation remains: low or absent illumination becomes a useful lead. This is an inference from how LCDs work, not a manufacturer test that identifies a replacement part. Brightness settings, the light source, its driver, power or connection still need separation. No faint image is an inconclusive result.

Lines, unusual colors, blotches or flicker describe image symptoms. Record whether they also appear in a startup logo or documented local menu, rather than only one project page. A defect across both makes project-page content less likely, but cannot distinguish the LCD from its connection, display electronics or supply. Do not flex the panel, press on a blotch, or open an energized unit to provoke a change.

A cracked front can affect visibility, touch sensing and the enclosure seal together. Even if the image looks normal, the assembly may require more than a sensor replacement. Preserve photos of the damage and stop input testing if the surface is damaged. The diagram separates image data from light; it is not a cable or disassembly guide.

An LCD can faithfully show an old image. A stationary number therefore tells you little unless you know that the process value should have changed. Look for a documented local indicator that normally updates, and distinguish it from values received from the PLC. A local animation continuing while process values are stale suggests a different investigation from an entirely frozen interface.

Enlarged system diagram

×

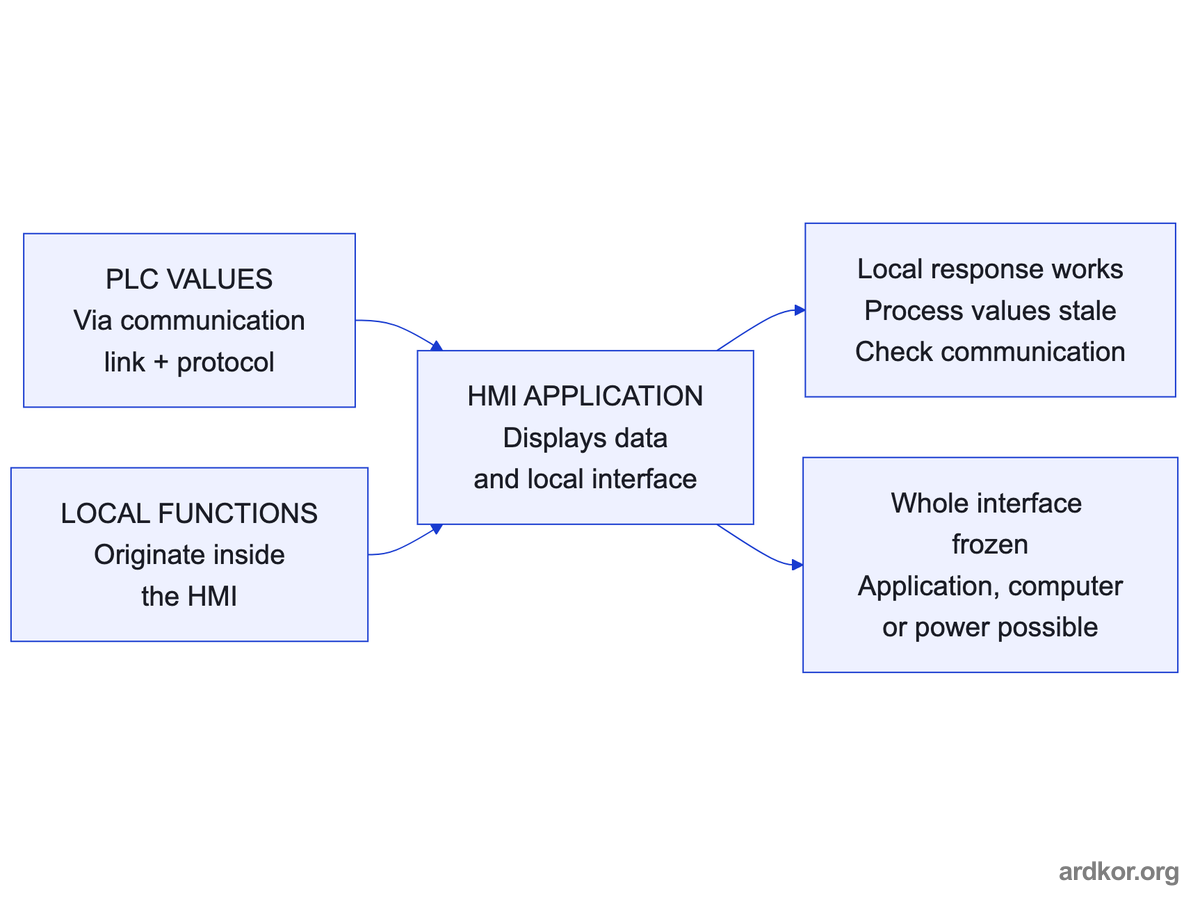

The screen can display correctly while the data is stale. Observe something known to change; a constant value is not evidence of failure.

If safe local navigation works but process values show communication errors, examine the HMI-to-PLC link, device configuration and PLC state through the approved diagnostic tools. Ethernet is a physical/network connection; the application protocol defines how values and commands are exchanged. A link LED does not prove successful application communication. Some panels use serial connections or a fieldbus, an industrial communication network, instead.

If local menus and the project both stop reacting, the application, operating system, computer or power may be involved. Capture the time, error text and circumstances before a restart, if that can be done safely. Rebooting can erase useful context and does not demonstrate a lasting fix. These are reasoning examples, not exhaustive fault trees: intermittent faults and more than one fault can coexist.

Start with the exact manufacturer, reference, serial number and hardware revision visible on the nameplate. Add the machine identifier, project/runtime version if available, and the date and time of observation. Describe onset: sudden or gradual, at startup or after warm-up, constant or intermittent. Note any recent cleaning, impact, configuration change or power event as context, not as a proven cause.

Enlarged system diagram

×

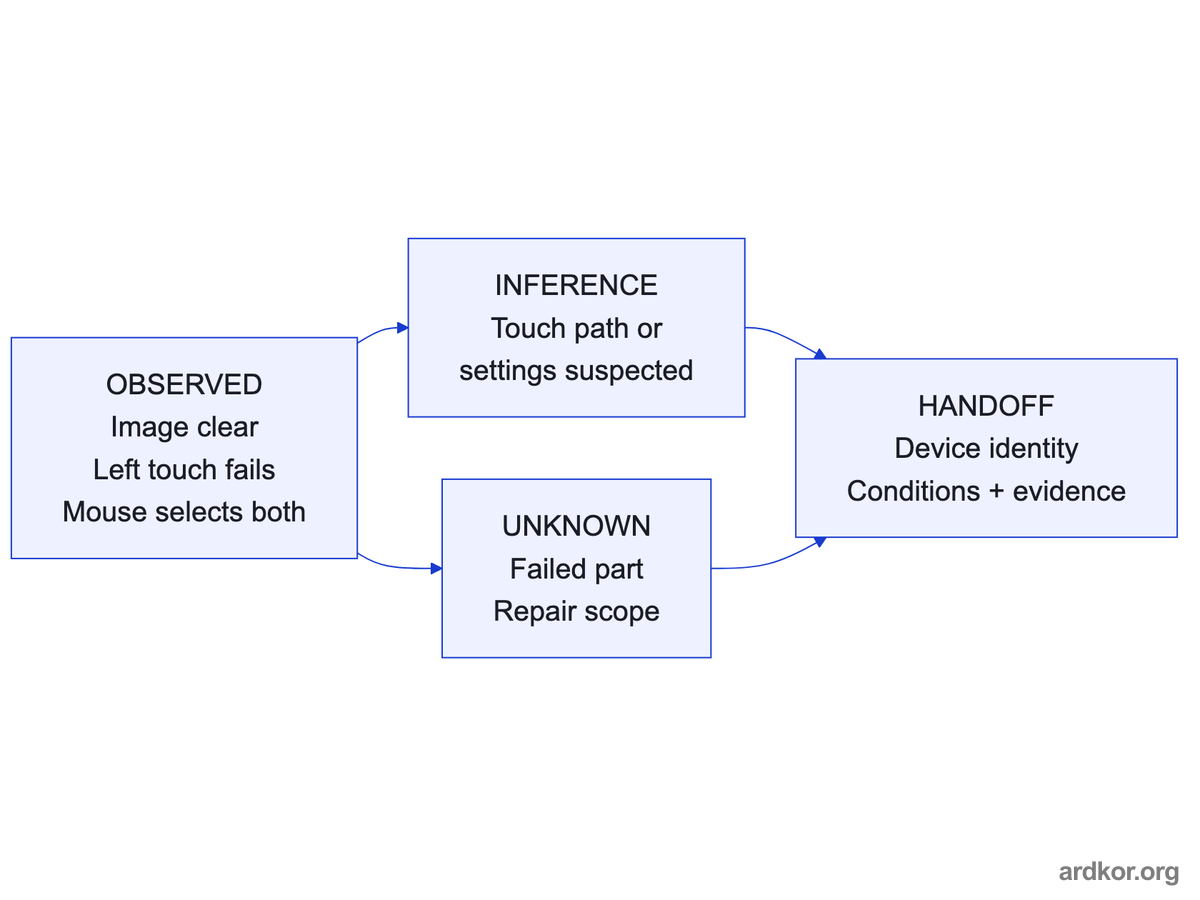

Write what happened first, what it suggests second, and what remains untested third. The example is illustrative, not a reported customer case.

Record each layer separately: image visibility and defects; touch response and location; local application response; process-data or communication behavior. For every approved check, record the method, conditions and result, including unsupported or unperformed checks. Attach a full-panel photo and a close-up, plus a short video for intermittent behavior when site rules allow it.

Example observation: “At 09:20, the page image was clear. In the approved service screen, the left target did not register touch; the right target did. A supported mouse selected both. No process controls were used.” Interpretation: “Touch path or configuration suspected.” Still unknown: “Sensor, controller, connection or software cause; repair scope.” This preserves useful evidence without calling the touch sensor defective.

The diagram turns that example into three boxes you can reuse in a request. Keep original photos and wording alongside later conclusions. A qualified technician can then decide which powered-down inspection or controlled bench checks are needed, using the exact device documentation.

A confirmed touch-path problem may lead to work on the sensor assembly, connection, controller or settings. A confirmed image-path problem may involve the display assembly, backlight electronics, connection or supply. These are possible scopes, not a parts list for your model. Bonding, sealing, available service parts and the repair procedure determine whether a component can be replaced separately.

Enlarged system diagram

×

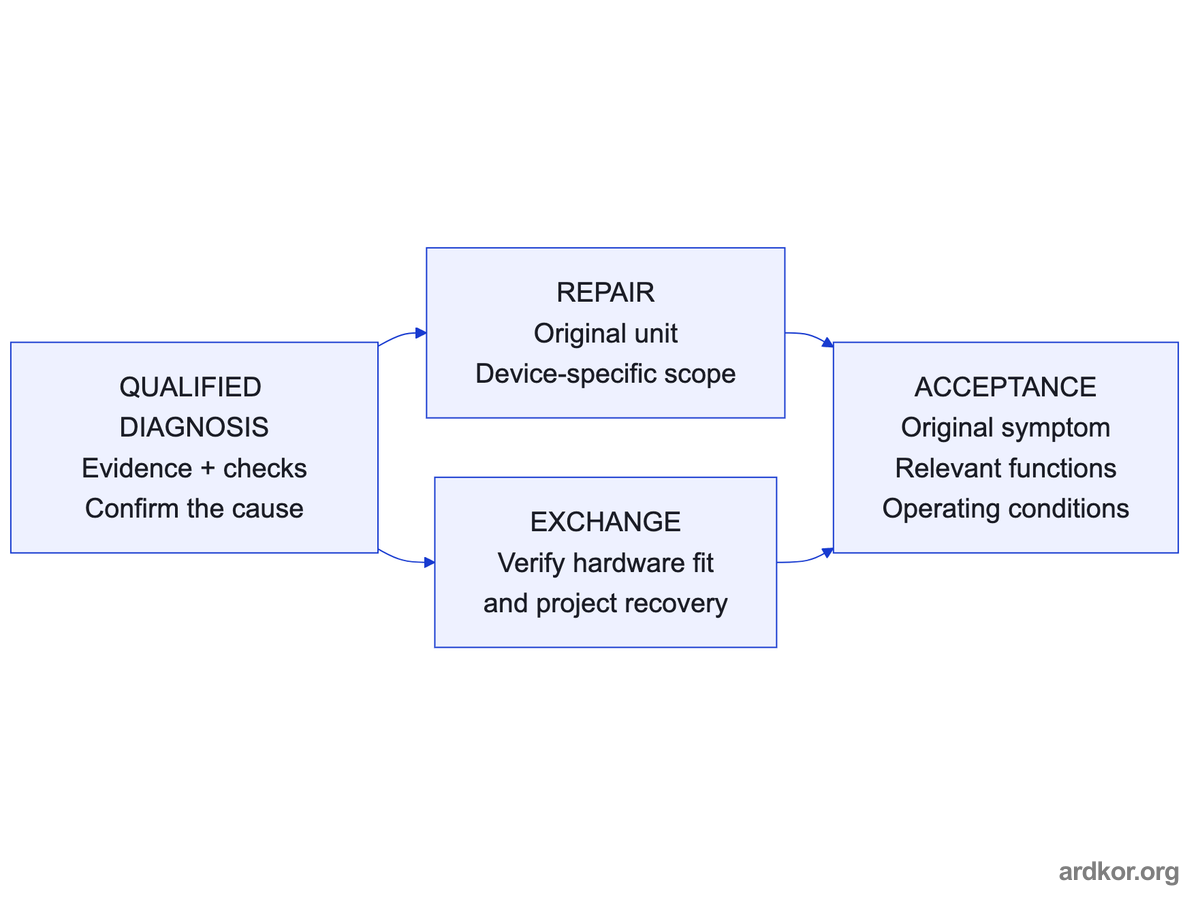

Diagnosis chooses the work; compatibility and acceptance checks decide whether the recovered HMI is usable in its intended application.

Replacing the whole HMI introduces a second question: can the replacement run the required machine project? Confirm the exact revision, firmware (device software) and runtime requirements, communication interfaces, mounting cutout and environmental rating. Establish a usable backup and restoration method before any reset, firmware change or exchange. A device backup and an editable engineering project are not automatically the same thing.

Ask the repairer to state the confirmed fault, proposed work, retained data and post-repair checks. Acceptance should cover the reported symptom, touch accuracy across the usable surface, image quality, local operation and the relevant communication functions under an approved procedure. For an intermittent fault, include its original operating conditions where practical. An image appearing once is not sufficient evidence that the original problem is resolved.

• Touch sensing, image generation, backlighting and PLC communication are different functions with shared dependencies.
• A supported mouse comparison or faint-image observation narrows possibilities; neither identifies a failed part on its own.
• Keep observations, provisional explanations and unknowns separate. Use only approved non-actuating checks.
• Confirm the repair scope for the exact assembly, preserve recoverable data, and check the original symptom after the work.
